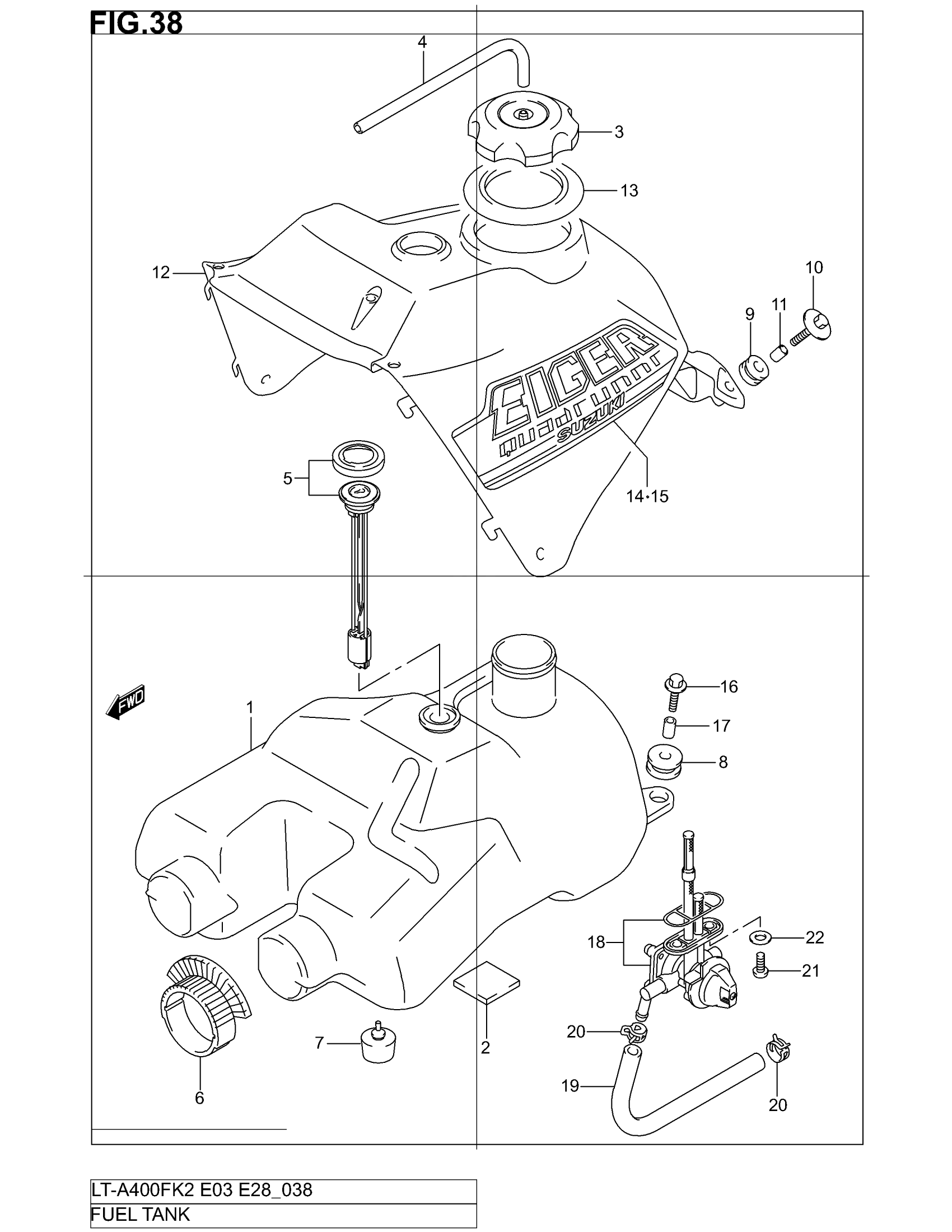

Suzuki LT-A400F (2002) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-38F00

Unavailable

2

CUSHION This part replaces 44281-29C00.

63191-25C00

$3.05

3

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

GAS GAUGE, FUEL This part replaces 44580-38F00.

44580-38F02

$63.44

6

CUSHION,FUEL TANK FR This part replaces 44511-38F00.

44511-38F01

$19.57

7

CUSHION,FUEL TA This part replaces 44542-35F00.

44542-35F01

$6.58

8

CUSHION, SEAT MOUNT

45141-09F00

$4.99

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

10

BOLT

09116-06050

$2.26

11

SPACER

09180-06293

$2.58

12

COVER, TANK (GREEN) This part replaces 44271-38F00-YT8.

44271-38F10-YT8

$62.20

12

COVER, TANK (RED) This part replaces 44271-38F00-YT9.

44271-38F10-YT9

$66.67

13

RUBER, INLET

44261-38F00

$13.35

14

EMBLEM, COVER RH | FOR YT8

68111-38F00-Y4J

Unavailable

14

EMBLEM, COVER RH | FOR YT9

68111-38F00-Y4K

Unavailable

15

EMBLEM, COVER LH | FOR YT8

68121-38F00-Y4J

Unavailable

15

EMBLEM, COVER LH | FOR YT9

68121-38F00-Y4K

Unavailable

16

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

17

SPACER

09180-06267

$4.10

18

COCK ASSY,FUEL This part replaces 44300-38F00.

44300-38F03

$95.43

19

HOSE,6.5X11.5X6 This part replaces 09355-70125-600.

44421-12FR0

$12.33

20

CLIP This part replaces 09401-11407.

09401-11415

$2.23

21

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

22

GASKET

09168-06026

$3.10
