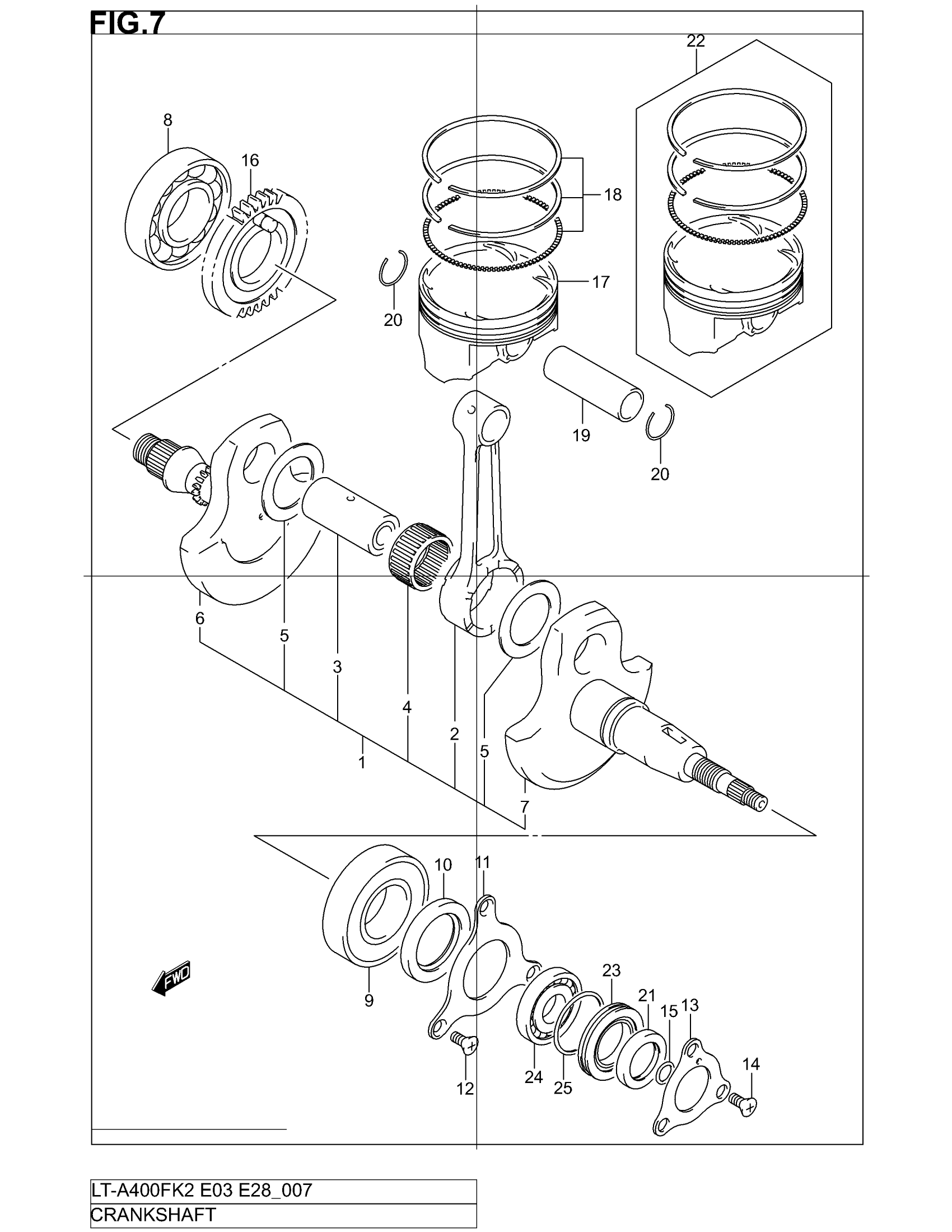

Suzuki LT-A400F (2002) CRANKSHAFT Diagram

CRANKSHAFT SET | Includes Item(s) 2 - 7 This part replaces 12200-38F00.

12201-38821

$1,025.18

ROD, CONNECTING

12161-14D00

$150.35

PIN, CRANK

12210-38F00

$65.60

BEARING (34X43X22)

09263-34005

$80.87

WASHER

09160-34003

$8.62

CRANKSHAFT SET, RH This part replaces 12220-38F00.

12220-38810

Unavailable

CRANKSHAFT, LH

12260-38F00

Unavailable

BEARING (35X72X17) This part replaces 09262-35039.

09262-35038

$46.10

BEARING, MDL

09262-35067

$87.25

SEAL, CRANKSHAFT MDL OIL

09282-34001

$36.72

RETAINER, CRANKSHAFT OIL SEAL MDL

12541-38F00

Unavailable

SCREW, RETAINER MDL

09126-06011

$2.03

RETAINER, CRANKSHAFT OIL SEAL LH

12541-46510

$8.77

SCREW, RETAINER LH

09126-06011

$2.03

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

GEAR, CRANK BALANCER DRIVE

12661-38F01

Unavailable

PISTON

12111-38F21-0F0

$108.93

RING SET, PISTON (STD)

12140-38F10

$51.49

PIN,PISTON

12151-24A00

$22.03

CIRCLIP

09381-20004

$1.65

OIL SEAL (25X36X6)

09283-25094

$31.02

PISTON SET,OS0.5 (OS:0.5) | OPT

12100-38F21-050

$149.82

SPACER, RECOIL STARTER CUP BRG This part replaces 12359-44D00.

12359-44D20

$32.17

BEARING, RECOIL STARTER CUP

09262-25006

$25.54

O RING

09280-44007

$11.98
