2002 Suzuki LT-A400F CAM Shaft - Valve Diagram

← All diagrams

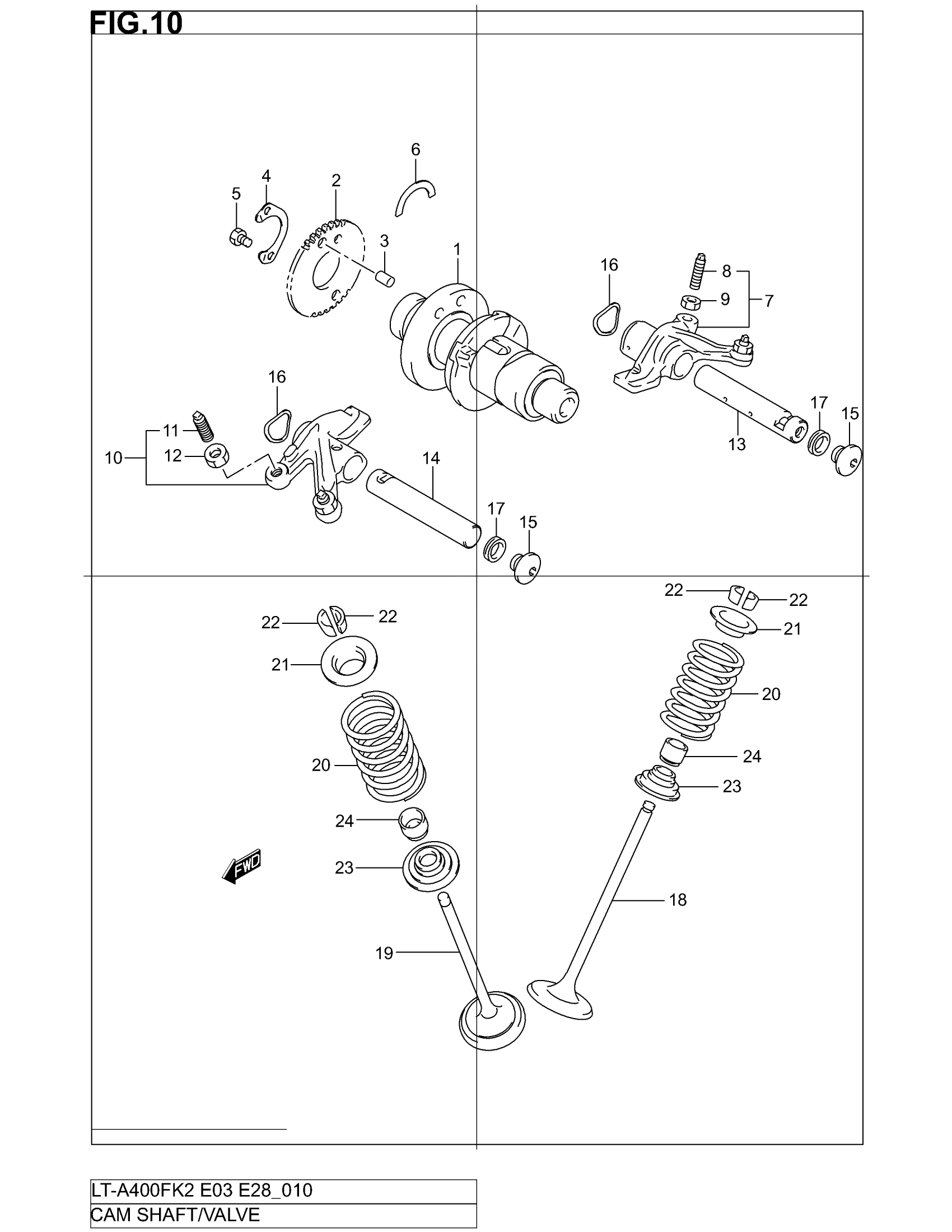

Find the part on the CAM Shaft - Valve diagram for your 2002 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-A400F CAM Shaft - Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT This part replaces 12710-38F00.

12710-27H00

1
Out of stock

2

SPROCKET, CAM DRIVE

12741-38F00

1
Out of stock

3

PIN

09261-05005

1
Out of stock

4

WASHER,SPROCKET

12747-44B00

1
Out of stock

5

BOLT (6X10.5)

09111-06032

2
Out of stock

6

C-RING

09390-22002

1
Out of stock

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9 This part replaces 12840-15F00.

12840-15G00

1
Out of stock

8

.SCREW,TAPPET ADJUSTING

12842-17C50

2
Out of stock

9

.NUT,TAPPET ADJUSTING

12843-27A00

2
Out of stock

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12

12850-14D50

1
Out of stock

11

.SCREW,TAPPET ADJUSTING

12842-17C50

2
Out of stock

12

.NUT,TAPPET ADJUSTING

12843-27A00

2
Out of stock

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

1
Out of stock

14

SHAFT, ROCKER ARM EXHAUST

12871-14D50

1
Out of stock

15

PLUG, ROCKER ARM SHAFT

09248-14011

2
Out of stock

16

WASHER

09164-12018

2
Out of stock

17

GASKET

09168-14002

2
Out of stock

18

VALVE,INTAKE

12911-14D10

2
Out of stock

19

VALVE,EXHAUST

12912-14D01

2
Out of stock

20

SPRING VALVE

12921-03G00

4
Out of stock

21

RETAINER, SPRING

12931-27A01

4
Out of stock

22

COTTER, VALVE

12932-27A00

8
Out of stock

23

SEAT,VALVE SPRING

12933-81400

4
Out of stock

24

OIL SEAL

09289-05011

4
Out of stock
