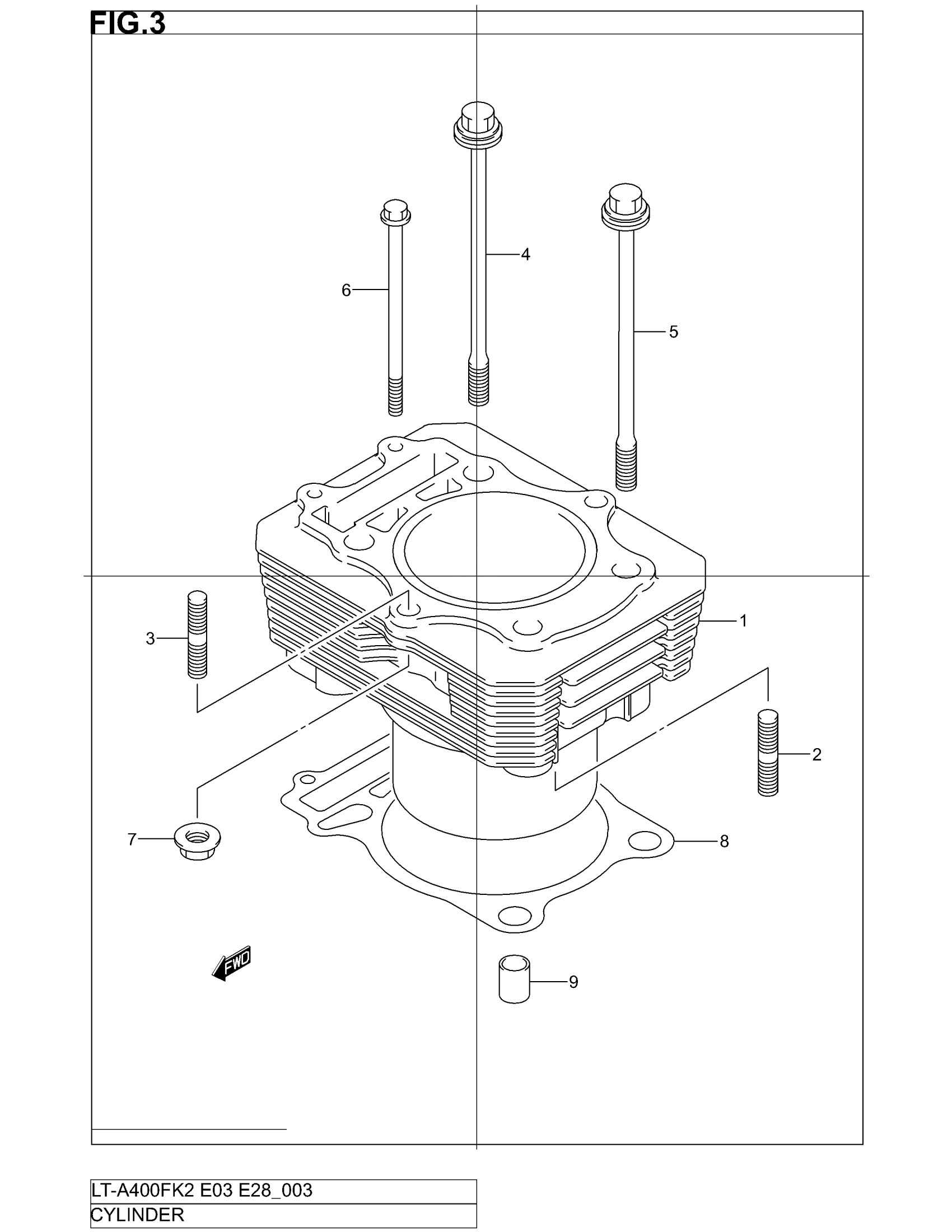

Suzuki LT-A400F (2002) CYLINDER Diagram

#

Description
Price

1

CYLINDER This part replaces 11210-38F10-0F0.

11210-27H00-0F0

$766.43

2

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.89

3

STUD BOLT (L:30)

09108-08142

$2.87

4

BOLT (10X180)

09103-10178

$13.30

5

BOLT (L:170)

09103-10321

$16.60

6

BOLT (L:115)

09103-06167

$3.90

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

GASKET, CYLINDER

11241-38F00

$12.18

9

PIN

04211-13189

$2.19
