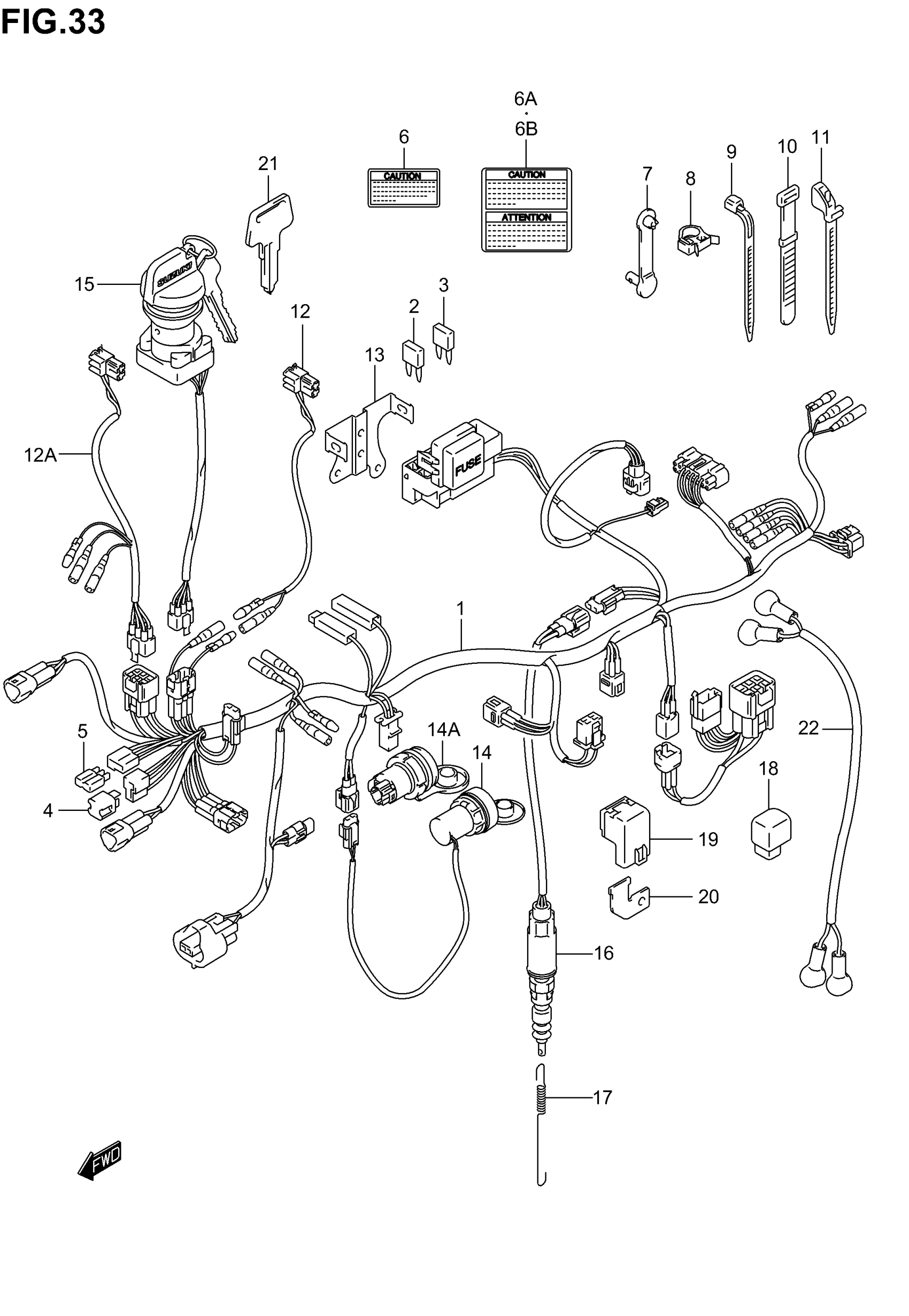

Suzuki LT-A400C (2005) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS WIRING | MODEL K3 %F.NO.5SAAK46K3X102000

36610-38F00

Unavailable

1

HARNESS WIRING | MODEL K3 F.NO.5SAAK46K3X102001% This part replaces 36610-38F50.

36610-38F51

$284.73

1

HARNESS WIRING | MODEL K4/K5; Includes Item(s) 2 - 5

36610-38FA1

$292.52

2

.FUSE (5A) | FOR 36610-38F00

09481-05501

Unavailable

3

FUSE (10A) | FOR 36610-38F00

09481-10501

$2.06

3

FUSE (10A) | FOR 36610-38F50,36610-38FA1

09481-10501

$2.06

4

RECTIFIER ASSY

32800-16A00

$23.07

5

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

6

LABEL, CAUTION MAX AMP | %F.NO.5SAAK46K3X102000

38852-09F21

$7.53

6

LABEL, CAUTION MAX AMP | F.NO.5SAAK46K3X102001%

38852-09F30

Unavailable

6A

LABEL, CAUTION MAX AMP | %F.NO.5SAAK46K3X102000 E28

38852-03G00

Unavailable

6B

LABEL, CAUTION MAX AMP | F.NO.5SAAK46K3X102001% E28

38852-03G10

Unavailable

7

CLAMP, WIRING HARNESS

36651-48E00

$3.25

8

CLAMP (D:20)

09403-20403

$3.58

8

CLAMP (D:25)

09403-25401

Unavailable

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:165)

09407-18402

$2.19

10

CLAMP

09407-12402

$3.04

11

CLAMP

09407-12407

Unavailable

12

WIRE,BRAKE SW L | MODEL K3 This part replaces 36856-35B00.

36856-35B01

$8.60

12A

WIRE, FRONT BRAKE SW | MODEL K4/K5

36855-38F10

Unavailable

13

BRACKET,FUSE BOX

36744-38F00

$11.37

14

TERMINAL, POWER SOURCE | %F.NO.5SAAK46K3X102000

38850-09F00

Unavailable

14A

TERMINAL, POWER SOURCE | F.NO.5SAAK46K3X102001%

38850-03G00

$75.08

15

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$82.20

16

SWITCH ASSY,STOP LAMP This part replaces 37740-38F00.

37740-38F01

$115.27

17

SPRING, STOP LAMP

09443-06016

$3.30

18

RELAY,NEUTRAL START

38730-09F00

$46.55

19

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

20

BRACKET, GEAR IN START

38741-09F00

Unavailable

21

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

21

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

21

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

21

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07

22

WIRE, WINCH | MODEL K4/K5

33870-38F00

Unavailable
