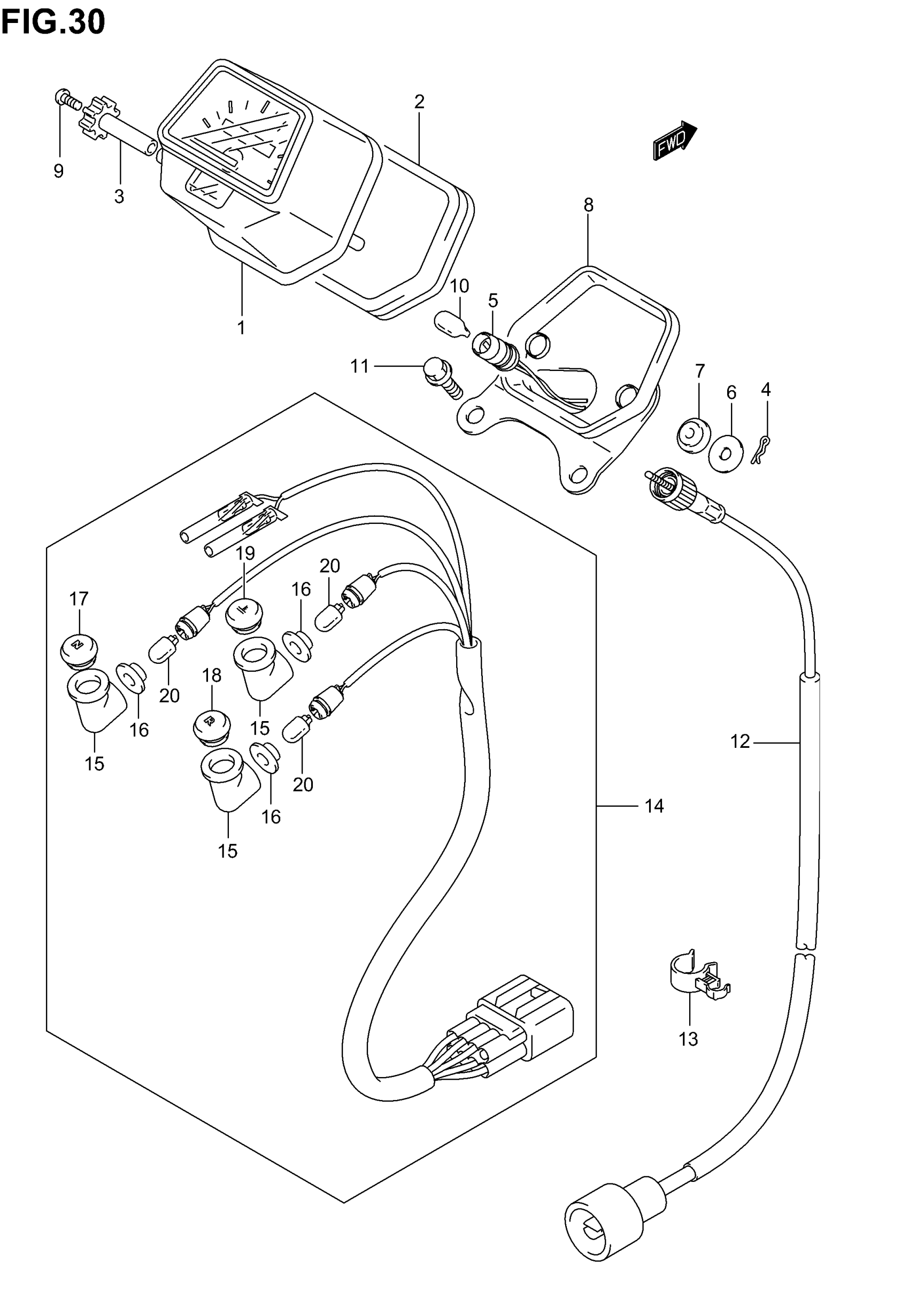

Suzuki LT-A400C (2005) SPEEDOMETER (MODEL K3/K4) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) This part replaces 34110-38F10.

34110-38F30

$282.23

1

SPEEDOMETER (KILO) | E28 This part replaces 34110-38F00.

34110-38F20

Unavailable

2

DAMPER

34114-38F00

$12.80

3

KNOB

34124-38F00

$8.93

4

SNAP PIN

34136-09F00

$2.87

5

CORD ASSY

34173-38F00

Unavailable

6

WASHER (5.2X18X1.2)

34181-09F00

$2.87

7

DAMPER This part replaces 34188-09F00.

34188-09F01

$2.96

8

BRACKET ASSY

34950-38F00

$75.82

9

SCREW (2X6)

09139-02003

$1.65

10

BULB (12V,1.7W)

09471-12165

$3.51

11

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

12

CABLE ASSY,SPEE This part replaces 34910-38F00.

34910-38F02

$50.35

13

CLIP

09408-00198

Unavailable

14

LAMP ASSY,PILOT | Includes Item(s) 15 - 20 This part replaces 36380-38F00.

36380-38F11

$89.67

15

SOCKET

34173-26F00

$4.55

16

RING

34178-26F00

$4.15

17

LENS, NEUTRAL

36321-38F00

$10.30

18

LENS, REVERSE

36329-38F00

$10.48

19

LENS, OIL TEMP

36361-38F00

$10.48

20

BULB (12V,30W,T.6.5)

09471-12103

$3.83
