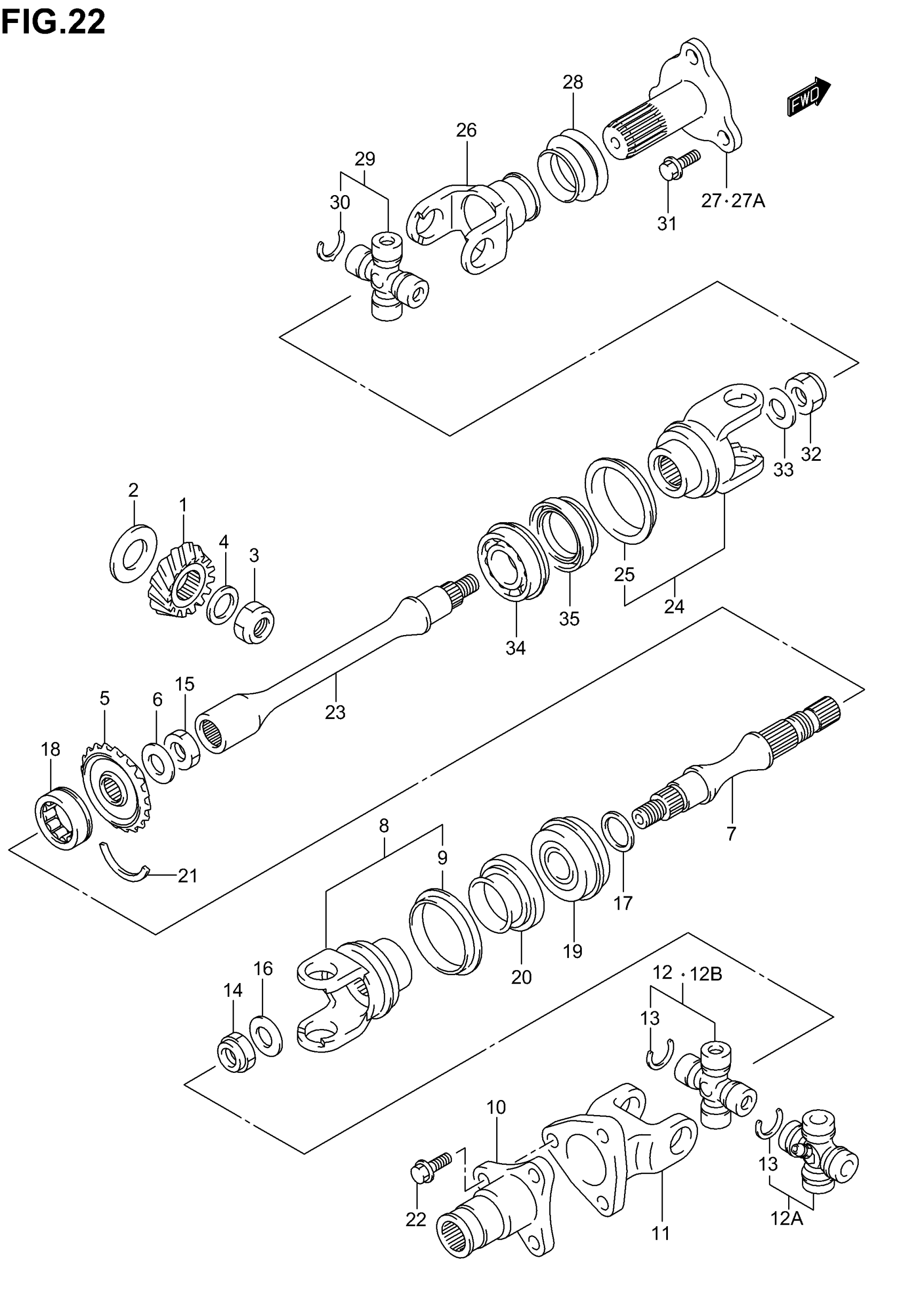

Find the part on the Secondary Drive diagram for your 2005 Suzuki LT-A400C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-A400C Secondary Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, SEC DRIVE BEVEL | NT:17

24911-38F00

1
Out of stock

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.90/1.00/ 1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

1
Out of stock

3

NUT, SEC DRIVE BEVEL GEAR

09140-20012

1
Out of stock

4

WASHER, SEC DRIVE BEVEL GEAR | 20X32X1

09181-20223

1
Out of stock

5

GEAR, SEC DRIVEN BEVEL

24921-38F00

1
Out of stock

6

WASHER, SEC DRIVEN GEAR

08211-22365

1
Out of stock

7

SHAFT, SEC DRIVEN OUTPUT REAR

24971-38F00

1
Out of stock

8

YOKE, REAR DRIVE OUTPUT | Includes Item(s) 9

27130-03G00

1
Out of stock

9

PLATE, OUTPUT

27592-38F00

1
Out of stock

10

SHAFT, PROPELLER REAR

27150-38F00

1
Out of stock

11

YOKE, PROP SHAFT JOINT RR This part replaces 27161-38F20.

27161-38F11

1
Out of stock

12

JOINT SET,UNIVERSAL | MODEL K3 This part replaces 27200-19810.

27200-19811

1
Out of stock

12A

JOINT SET, UNIVERSAL | MODEL K4

27200-38810

1
Out of stock

12B

JOINT SET,UNIVERSAL | MODEL K5; Includes Item(s) 13 This part replaces 27200-19810.

27200-19811

1
Out of stock

13

CIRCLIP

09380-20016

4
Out of stock

14

NUT, REAR DRIVE OUTPUT YOKE

09159-16003

1
Out of stock

15

NUT, SEC DRIVEN GEAR

09159-22005

1
Out of stock

16

WASHER, REAR OUTPUT YOKE | 16X30X3

09160-16026

1
Out of stock

17

1

$3.80

In stock

17

1

$3.80

In stock

17

1

$3.80

In stock

17

1

$3.72

In stock

17

1

$3.80

In stock

17

WASHER, 5TH DRIVE | 25X34X1.00 This part replaces 09181-25059.

09181-25167

1
Out of stock

17

1

$3.72

In stock

17

1

$4.18

In stock

17

1

$2.30

In stock

17

1

$4.10

In stock

18

BEARING, SEC DRIVEN GEAR M | 30X50X17

09263-30050

1
Out of stock

19

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

1
Out of stock

20

OIL SEAL, DRIVEN SHAFT REAR | 34X52X9

09283-34008

1
Out of stock

21

RING, SEC DRIVEN BEARING M

09390-50002

1
Out of stock

22

BOLT, PROP SHAFT REAR This part replaces 01550-10203.

01550-1020A

3
Out of stock

23

SHAFT, SEC DRIVEN OUTPUT FRONT

24961-38F00

1
Out of stock

24

YOKE, FRONT DRIVE OUTPUT | Includes Item(s) 25

27130-03G00

1
Out of stock

25

PLATE, OUTPUT YOKE

27592-38F00

1
Out of stock

26

1

$154.17

In stock

27

SHAFT, PROPELLER | MODEL K3

27151-38F50

1
Out of stock

27A

SHAFT, PROPELLER | MODEL K4/K5

27150-38F60

1
Out of stock

28

BOOT, PROPELLER SHAFT

27153-03G00

6
Out of stock

29

JOINT SET,UNIVERSAL | Includes Item(s) 30 This part replaces 27200-19810.

27200-19811

1
Out of stock

30

CIRCLIP

09380-20016

4
Out of stock

31

BOLT (10X20)

09103-10310

3
Out of stock

32

NUT, FRONT DRIVE YOKE

09159-16003

1
Out of stock

33

WASHER, FRONT DRIVE YOKE

09160-16026

1
Out of stock

34

BEARING, SEC DRIVEN FRONT | 25X52X15

09262-25131

1
Out of stock

35

OIL SEAL, FRONT | 34X52X14

09283-34008

1
Out of stock
