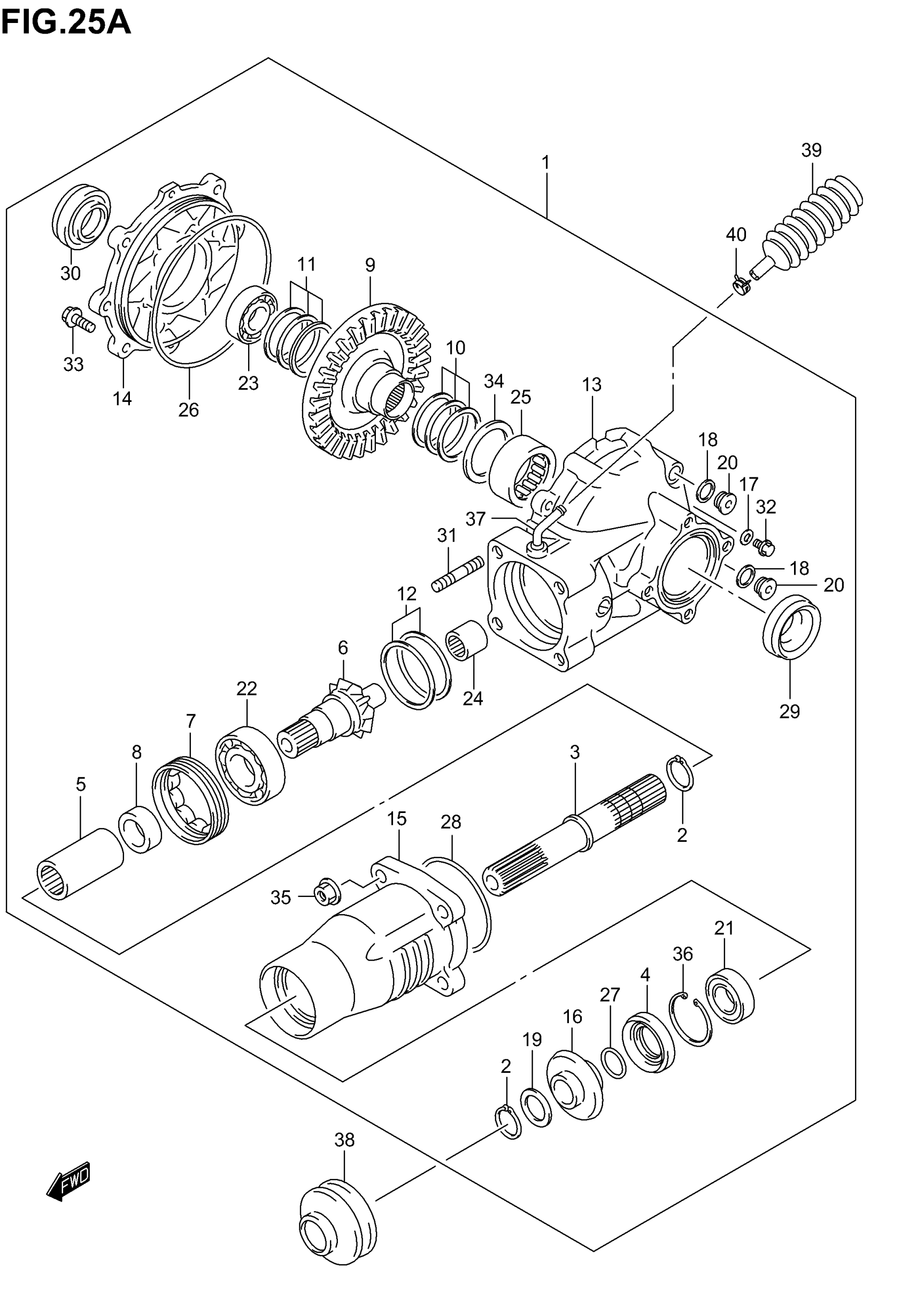

Suzuki LT-A400C (2005) FINAL BEVEL GEAR (REAR)(MODEL K4/K5) Diagram

#

Description
Price

1

CASE ASSY, REAR FINAL | Includes Item(s) 2 - 37

27410-38F00

Unavailable

2

CIRCLIP, RR FINAL DRIVE

08331-31256

$1.09

3

SHAFT, RR FINAL DRIVE

27155-38FM0

$221.70

4

SEAL, FINAL DR BRG

27156-38FM0

$19.68

5

JOINT, RR FINAL DR SHAFT

27157-38F00

$19.06

6

GEAR, FINAL DRIVEN BEVEL

27311-38FM0

Unavailable

7

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$59.52

8

SPACER, RR FINAL DR GR

27316-38FM0

$30.92

9

GEAR, FINAL DRIVEN BEVEL

27321-38FM0

$320.13

10

SHIM SET, FINAL DRIVEN, LH | T:0.30/0.35/0.40/0.50/0.60

27326-09810

$17.23

11

SHIM SET, FINAL DRIVEN, RH | T:0.30/0.35/0.40/0.50/0.60

27326-18810

$16.92

12

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$31.82

13

CASE, RR FINAL GR

27450-38FM0

Unavailable

14

CASE, RR FINAL DRIVEN, RH

27461-38FM0

Unavailable

15

HOUSING, RR FINAL DRIVE

27471-38FM0

Unavailable

16

COLLAR, OUTPUT OIL SEAL

27590-38F00

$70.33

17

GASKET, OIL CHECK BOLT | 6.2X13X1.2

09168-06018

$1.70

18

GASKET, OIL DRAIN PLUG | 16X22X2.0

09168-16002

$1.89

19

WASHER, RR FINAL DRIVE

27407-38FM0

$3.87

20

PLUG, OIL

09248-16012

$4.19

21

BEARING, RR FINAL DRIVE

27405-38FM0

$71.43

22

BEARING, FINAL DR GEAR

27405-38FN0

$98.00

23

BEARING, FINAL DRIVEN, RH

27405-38FP0

$127.21

24

BEARING, FINAL DR PILOT

27405-38FR0

$70.52

25

BEARING, FINAL DRIVEN, LH

27405-38FS0

$82.08

26

O RING, BEARING CASE, RH

27405-38FT0

$18.80

27

O RING, COLLAR OUTPUT

09280-24010

$5.09

28

O RING, RR FINAL DR HOUSING

09280-76008

$9.52

29

OIL SEAL, FINAL DRIVEN, LH

09283-38009

$13.30

30

OIL SEAL, FINAL DRIVEN, RH

09283-42011

$11.53

31

STUD BOLT (L:30) This part replaces 01421-10303.

01421-1030A

$2.59

32

BOLT, OIL CHECK

27401-38FM0

$4.90

33

BOLT, RR FINAL GR

27401-38FN0

Unavailable

34

WASHER, FINAL DRIVEN, LH

27407-38FN0

$7.06

35

NUT, RR FINAL

27408-38FM0

Unavailable

36

CIRCLIP, RR FINAL BRG

27403-38FM0

$6.75

37

UNION, BREATHER

09364-08009

$10.33

38

BOOT,RR FINAL D This part replaces 27153-44D80.

27153-44D81

$25.08

39

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

40

CLAMP

09401-08411

$1.77
