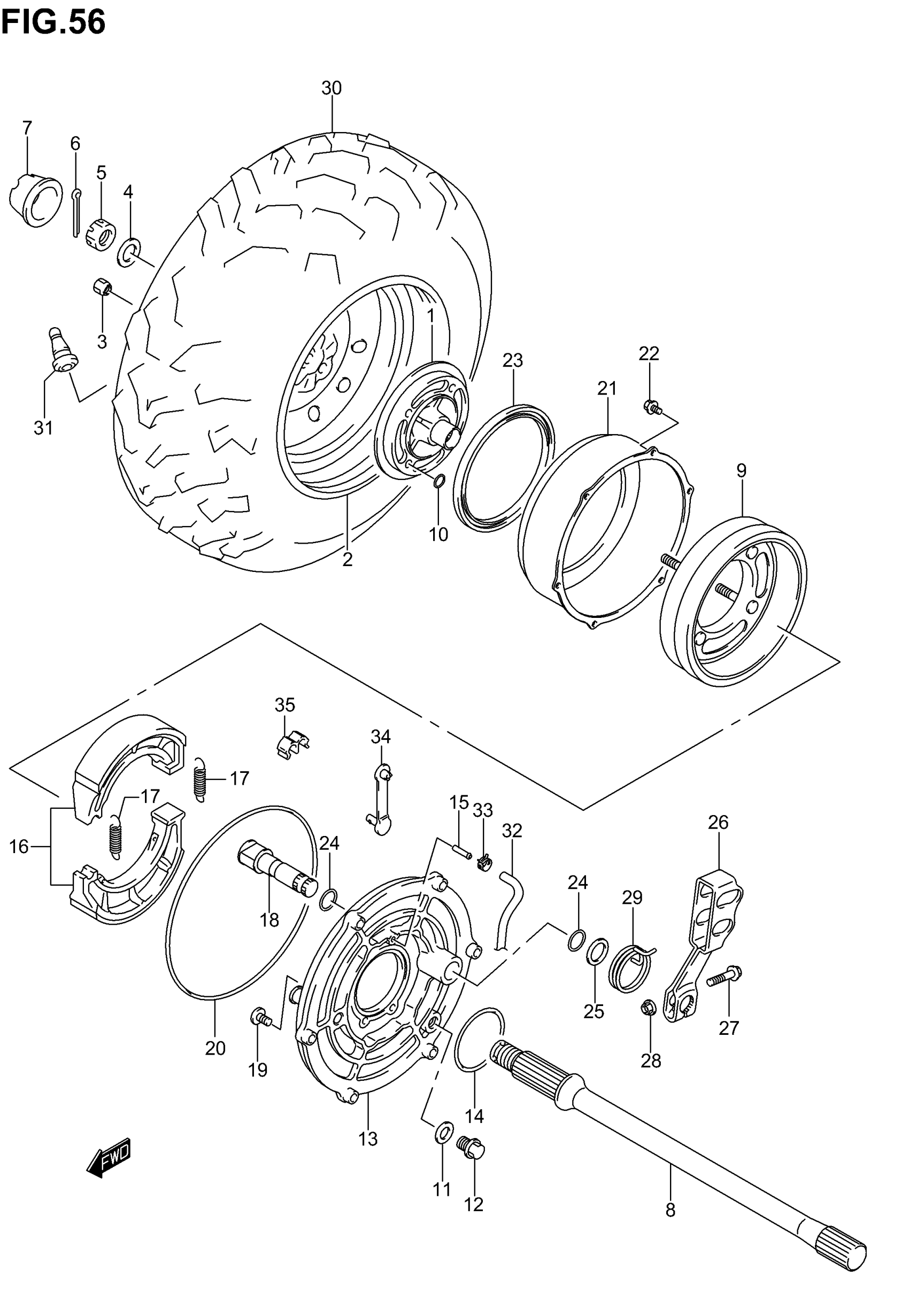

Suzuki LT-A400C (2005) RIGHT REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR,R This part replaces 64111-38F31.

64111-38F32

$156.60

2

RIM, REAR WHEEL (12X7.5AT) (BLACK) This part replaces 65310-38F00-YL8.

65310-38F40-291

$182.40

3

NUT

09140-10021

$2.03

4

WASHER

09164-18004

$3.76

5

NUT, HUB | %F.NO.5SAAK46K3X102000

09141-18008

$8.37

5

NUT, HUB | F.NO.5SAAK46K3X102001%

09141-18010

$10.11

6

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

7

CAP,WHEEL CENTER

54725-09F01

$9.95

8

AXLE, REAR RH

64711-38F10

Unavailable

9

DRUM, BRAKE

64120-38F00

$293.45

10

O RING (D:1.9,ID:9.8)

09280-10016

$3.37

11

WASHER, DRAIN PLUG

09161-10007

$1.72

12

PLUG, DRAIN

09247-10008

$1.97

13

PANEL, BRAKE ANCHOR

64210-38F00

Unavailable

14

O-RING This part replaces 09280-63001.

09280-63005

$2.16

15

UNION, PANEL

09364-04004

$13.12

16

SHOE SET, BRAKE

64400-38830

$51.01

17

SPRING, SHOE

55420-30000

$4.48

18

CAM,REAR BRAKE

64440-09F00

$23.68

19

BOLT, PANEL (8X18)

09106-08161

$3.70

20

O RING, PANEL

09280-00038

$15.10

21

COVER, REAR BRAKE

64123-38F00

$118.08

22

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

23

DUST SEAL, DRUM COVER

64124-38F00

$135.46

24

O RING, CAM (15.9X19.7X2)

64443-18A00

$1.98

25

WASHER

09160-16033

$2.90

26

LEVER, BRAKE CAM

64451-09F00

$33.97

27

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

28

NUT This part replaces 08316-10063.

08316-1006B

$2.50

29

SPRING, CAM LEVER

64484-38F00

$8.85

30

TIRE,REAR | MODEL K3 This part replaces 65110-38F00.

65110-03G30

Unavailable

30

TIRE,REAR | MODEL K4/K5 This part replaces 65110-38F20.

65110-03G30

Unavailable

31

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

32

HOSE(4X7X2000) This part replaces 09352-40703-00B.

09352-40706-00B

$13.47

33

CLIP, HOSE

09401-06405

$2.45

34

CLAMP

09407-03401

$3.07

35

CLIP, BREATHER HOSE & CABLE

09408-00200

$2.67
