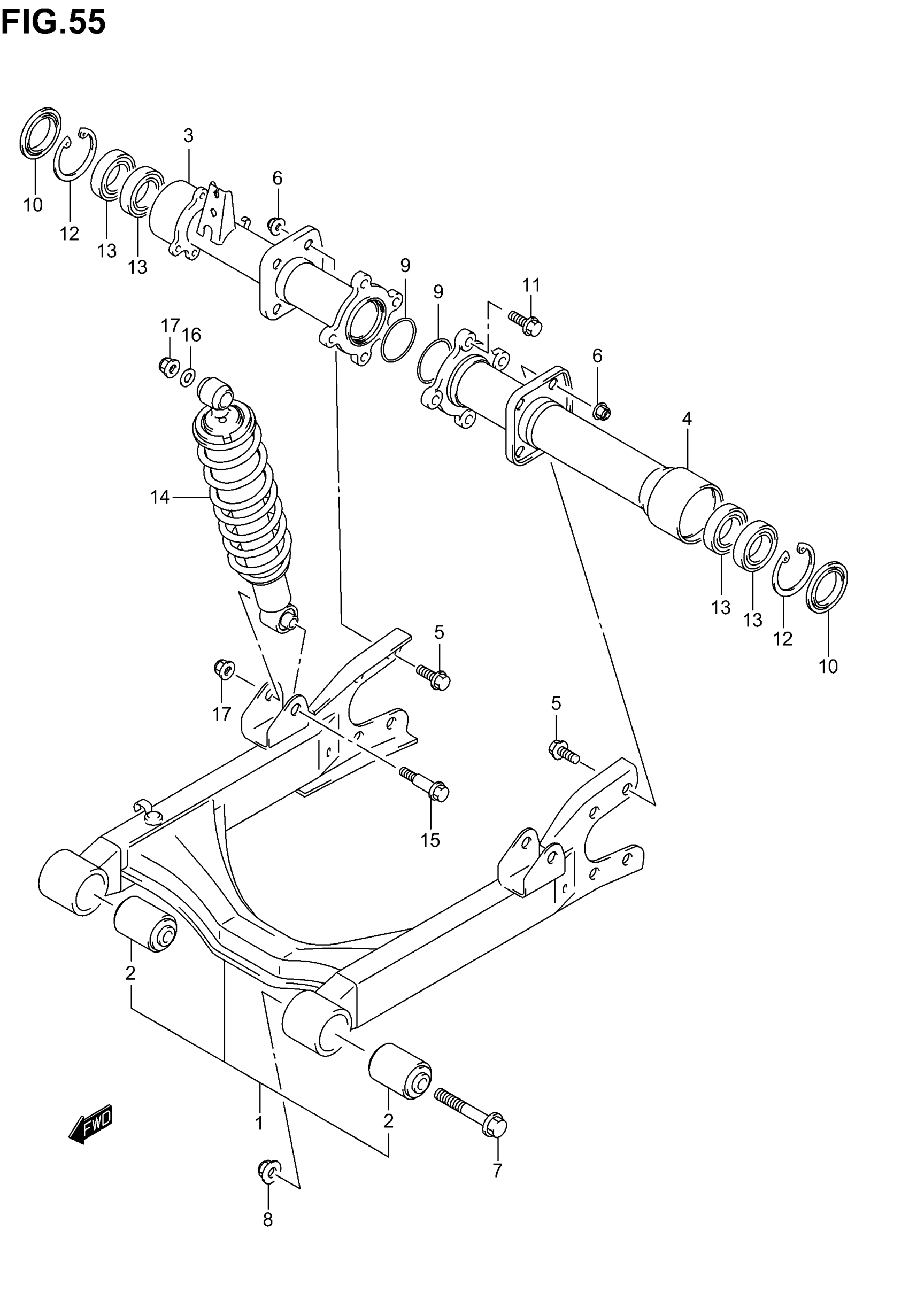

Description

Price

1

SWINGINGARM SET,REAR | Includes Item(s) 2 This part replaces 61100-38871.

61101-27850

$285.82

2

BUSH, PIVOT

61230-38F11

$46.88

3

HOUSING, RR AXLE, R | %F.NO.5SAAK46K3X102000 This part replaces 61300-38F00.

61300-38F10

$316.93

3

HOUSING, REAR AXLE RH | F.NO.5SAAK46K3X102001%

61300-38F10

$316.93

4

HOUSING, RR AXLE, L | %F.NO.5SAAK46K3X102000 This part replaces 61400-38F00.

61400-38F10

$371.93

4

HOUSING, REAR AXLE LH | F.NO.5SAAK46K3X102001%

61400-38F10

$371.93

5

BOLT, REAR SWGARM BRACKET

09103-10216

$4.17

6

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

7

BOLT, PIVOT

09103-12068

$8.35

8

NUT, PIVOT

09159-12054

$7.44

9

O RING, REAR AXLE HOUSING

09280-70005

$6.23

10

SEAL, REAR AXLE HOUSING

09283-38022

$13.01

11

BOLT | %F.NO.5SAAK46K3X102000 This part replaces 01550-10303.

01550-1030A

$3.55

11

BOLT, AXLE HOUSING | F.NO.5SAAK46K3X102001%

09103-10343

$4.68

12

CLIP This part replaces 08331-41556.

08331-41559

$3.70

13

BEARING, HUB

08123-60067

$29.13

14

ABSORBER ASSY, REAR SHOCK (BLACK) | %F.NO.5SAAK46K3X102000

62100-38F00-019

Unavailable

14

ABSORBER ASSY, REAR SHOCK (BLACK) | F.NO.5SAAK46K3X102001% This part replaces 62100-38F50-019.

62100-38F70-019

$187.72

14

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL K5
