Description

Price

1

PEDAL, BRAKE

43110-38F10

Unavailable

2

O RING

09280-17002

$5.11

3

BOLT,BRAKE PEDA This part replaces 07120-06803.

07120-0680B

$5.28

4

WASHER

09160-06136

$1.84

5

NUT This part replaces 08319-31063.

08319-3106A

$2.03

6

SPRING, RETURN

09443-12019

$4.50

7

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

8

NUT This part replaces 08310-00063.

08310-0006A

$1.84

9

CABLE, BRAKE PEDAL

58510-38F01

$71.00

10

CABLE, REAR BRAKE | MODEL K3/K4

58810-38F00

$65.76

10

CABLE COMP,RR B | MODEL K5 This part replaces 58810-38F10.

58810-38F11

$65.76

11

PIN

09200-05001

$1.65

12

COTTER PIN

09385-06012

$1.89

13

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

14

PIN, ADJUSTER

09209-13006

$5.24

15

SPRING | %F.NO.5SAAK46K3X102000 This part replaces 09440-08040.

09440-08040-XC0

$2.63

15

SPRING | F.NO.5SAAK46K3X102001%

09440-08042

$2.92

16

NUT | MODEL K3/K4

09150-06012

$3.37

16

NUT | MODEL K5

09150-06015

$3.56

17

WASHER,6.1X8.5X | MODEL K3/K4 This part replaces 09160-06144.

09160-06144-XC0

$1.99

18

CLIP

09408-00056

$3.08

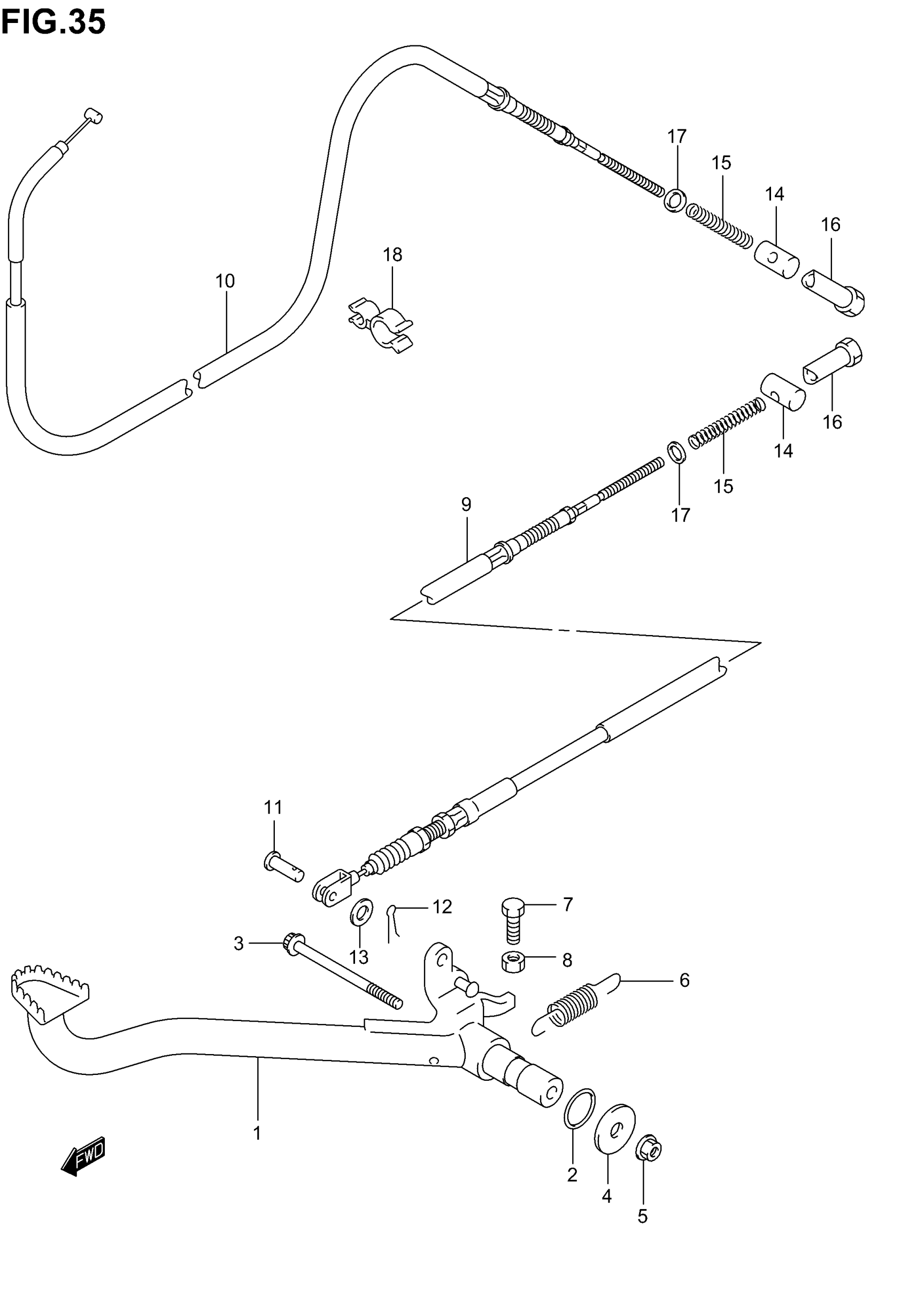

Suzuki LT-A400C (2005) REAR BRAKE Diagram
