2005 Suzuki LT-A400C Left Rear Wheel Diagram

← All diagrams

Find the part on the Left Rear Wheel diagram for your 2005 Suzuki LT-A400C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

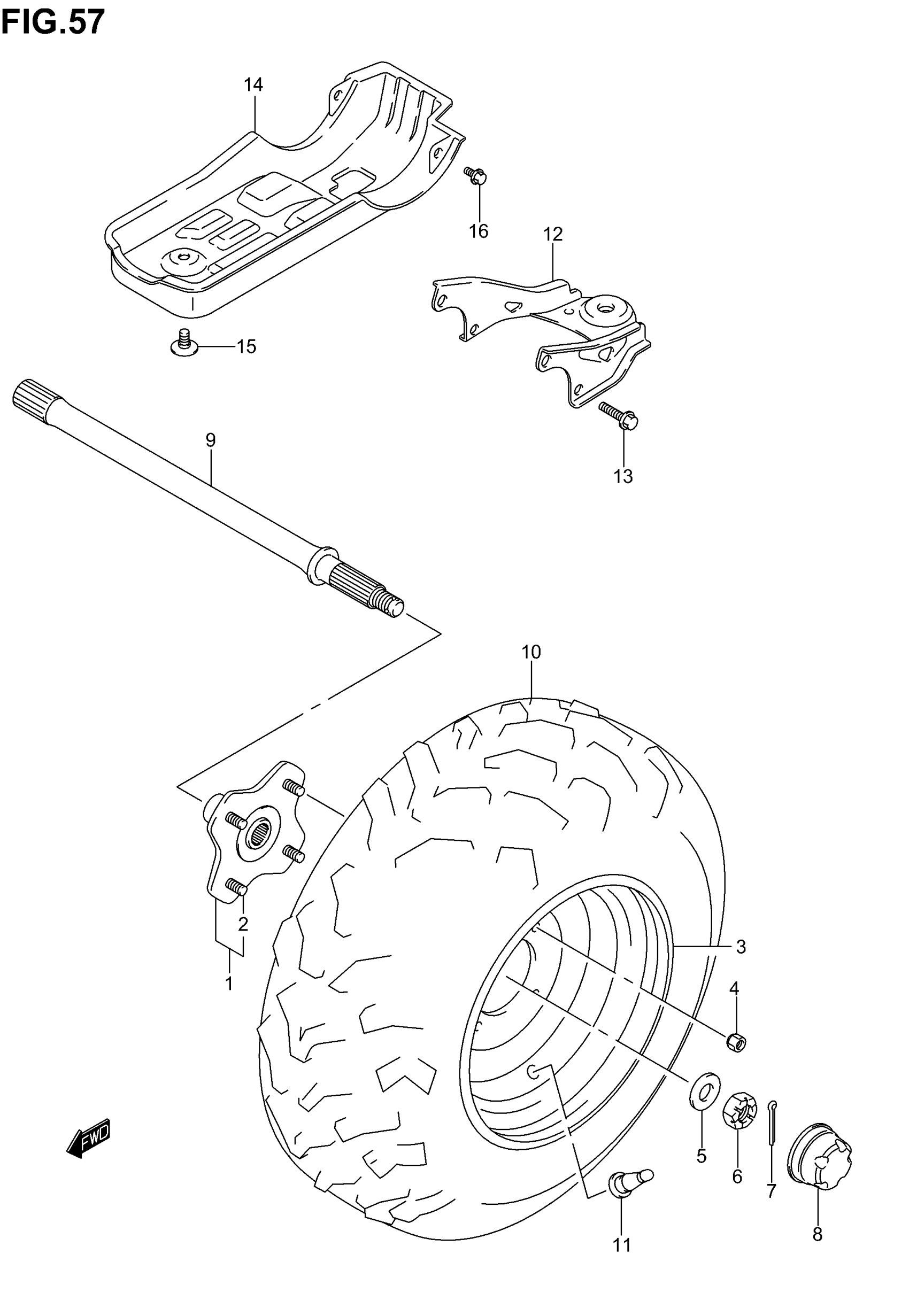

2005 Suzuki LT-A400C Left Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,REAR,L | %F.NO.5SAAK46K3X102000 This part replaces 64110-38F00.

64110-38F30

1
Out of stock

1

HUB,REAR,L | F.NO.5SAAK46K3X102001% This part replaces 64110-38F21.

64110-38F30

1
Out of stock

1

HUB,REAR,L | MODEL K5; Includes Item(s) 2 This part replaces 64110-38F22.

64110-38F30

1
Out of stock

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

4
Out of stock

3

RIM, REAR WHEEL (12X7.5AT) (BLACK) This part replaces 65310-38F00-YL8.

65310-38F40-291

1
Out of stock

4

NUT

09140-10021

4
Out of stock

5

WASHER

09164-18004

1
Out of stock

6

1

$8.27

In stock

6

NUT, HUB | F.NO.5SAAK46K3X102001%

09141-18010

1
Out of stock

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

1
Out of stock

8

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

9

AXLE,REAR,L This part replaces 64712-38F10.

64712-38F20

1
Out of stock

10

TIRE,REAR | MODEL K3 This part replaces 65110-38F00.

65110-03G30

1
Out of stock

10

TIRE,REAR | MODEL K4/K5 This part replaces 65110-38F20.

65110-03G30

1
Out of stock

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

12

PLATE,TRAILER TOW | MODEL K3/K4 This part replaces 95210-38F00.

95210-38F10

1
Out of stock

12

PLATE,TRAILER TOW | MODEL K5

95210-38F10

1
Out of stock

13

.BOLT | %F.NO.5SAAK46K3X102000 This part replaces 01550-10353.

01550-1035A

4
Out of stock

13

BOLT | F.NO.5SAAK46K3X102001%

09103-10344

4
Out of stock

14

PROTECTOR,FINAL CASE This part replaces 61391-38F00.

61391-38F11

1
Out of stock

15

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

1
Out of stock

16

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

2
Out of stock
