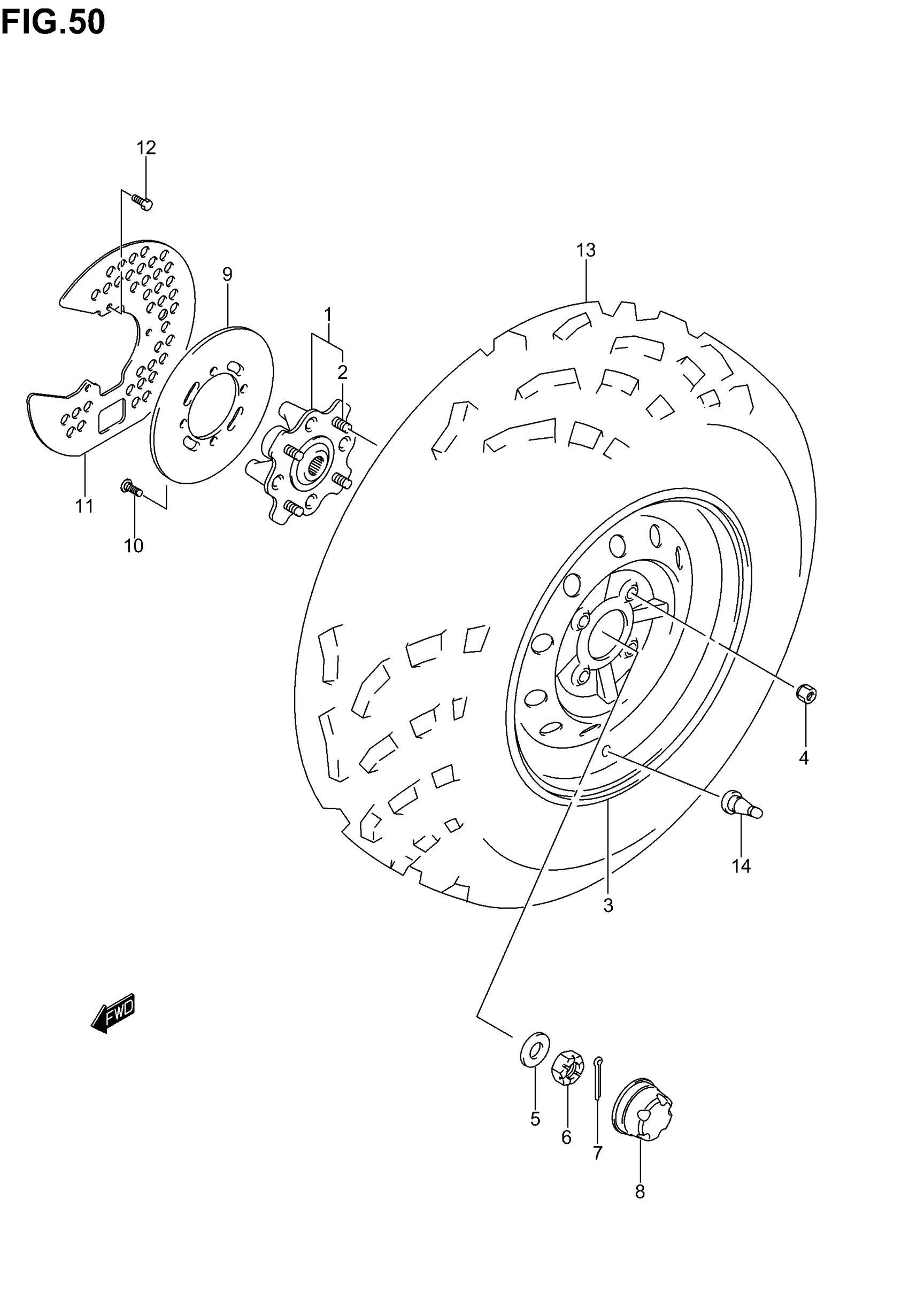

Suzuki LT-A400C (2005) FRONT WHEEL Diagram

#

Description
Price

1

HUB CMPL,FR WHE | %F.NO.5SAAK46K3X102000 This part replaces 54110-38F00.

54110-38F20

$119.03

1

HUB CMPL,FR WHE | F.NO.5SAAK46X3X102001%; Includes Item(s) 2 This part replaces 54110-38F11.

54110-38F20

$119.03

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.32

3

RIM, FRONT WHEEL (12X6.0AT) (BLACK) This part replaces 55310-38F00-YL8.

55310-38F30-291

$175.97

4

NUT

09140-10021

$2.09

5

WASHER

09164-18004

$3.49

6

NUT, HUB | %F.NO.5SAAK46K3X102000

09141-18008

$7.93

6

NUT, HUB | F.NO.5SAAK46K3X102001%

09141-18010

$9.54

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.41

8

CAP,WHEEL CENTER

54725-09F01

$9.53

9

DISC,FRONT BRAKE | %F.NO.5SAAK46K3X102000 This part replaces 59211-38F00.

59211-38F20

$44.72

9

DISC,FRONT BRAKE | F.NO.5SAAK46K3X102001% This part replaces 59211-38F10.

59211-38F20

$44.72

9

DISC,FRONT BRAKE | MODEL K4/K5

59211-38F20

$44.72

10

BOLT, BRAKE DISC

09106-08155

$3.54

11

COVER, FRONT DISC | MODEL K3 This part replaces 59231-38F00.

59231-38F01

Unavailable

11

COVER, FRONT DISC | MODEL K4/K5

59231-38F01

Unavailable

12

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$2.02

13

TIRE COMP,FRONT | MODEL K3 This part replaces 55110-38F00.

55110-03G20

$689.62

13

TIRE COMP,FRONT | MODEL K4/K5 This part replaces 55110-38F20.

55110-03G20

$689.62

14

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46
