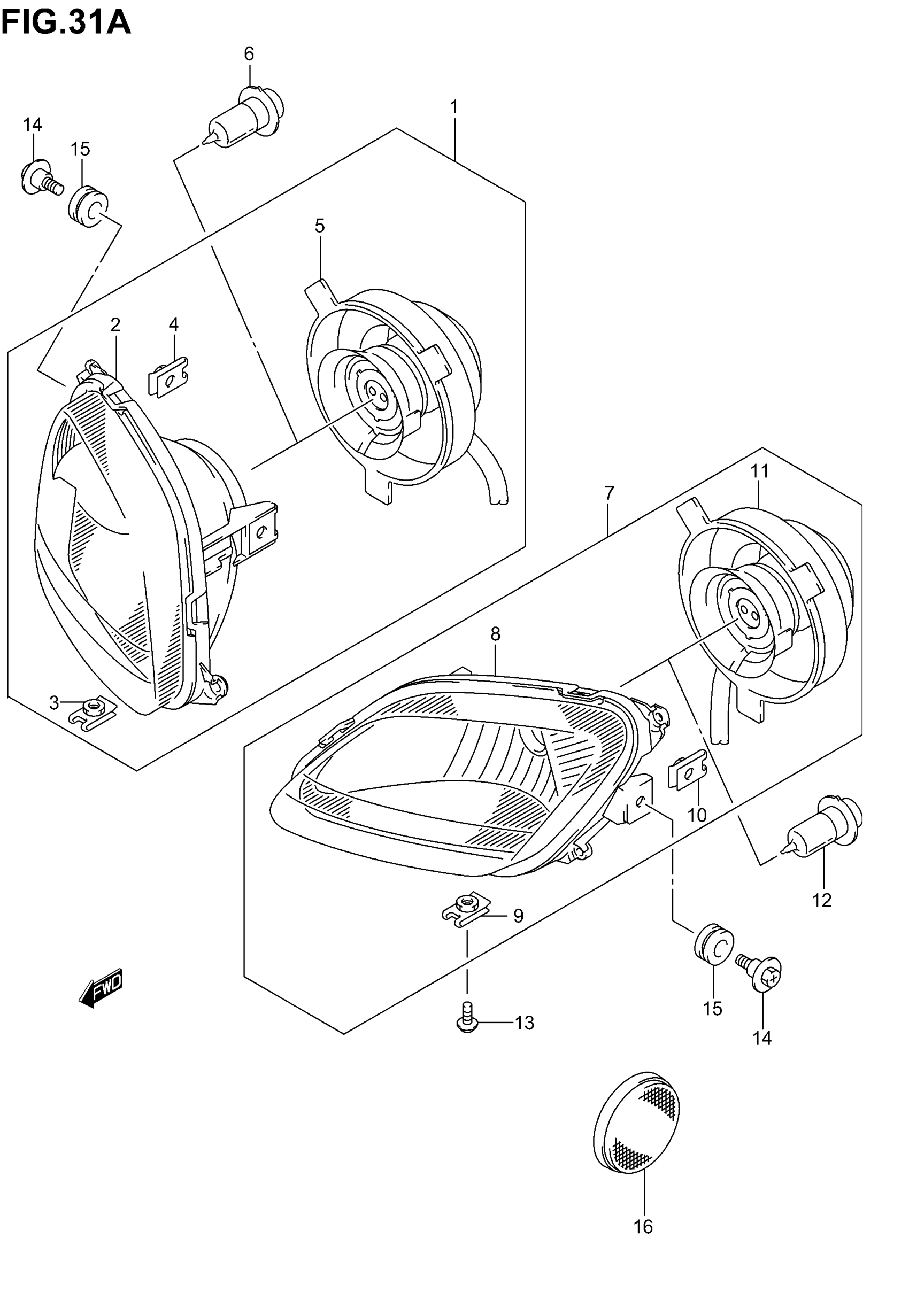

Suzuki LT-A400C (2005) HEADLAMP (MODEL K5) Diagram

#

Description
Price

1

HEADLAMP ASSY,R | FOR YU1,YT8,YT9,YDH; Includes Item(s) 2 - 5 This part replaces 35100-05G30-999.

35100-05G70-999

$268.48

2

UNIT, RH

35121-05G10

$131.20

3

NUT (M5)

35157-05G50

$5.98

4

NUT (M6)

35157-05G90

$5.98

5

CORD ASSY

35171-05GL0

$39.48

6

BULB (12V,30/30W) | BF130-03800A This part replaces 09471-12097.

09471-12093

$29.38

7

HEADLAMP ASSY, LH | FOR YU1,YT8,YT9,YDH; Includes Item(s) 8 - 11

35300-05G10-999

Unavailable

8

UNIT, LH

35321-05G10

$198.15

9

NUT (M5)

35157-05G50

$5.98

10

NUT (M6)

35157-05G90

$5.98

11

CORD ASSY

35171-05GL0

$39.48

12

BULB (12V,30/30W) | BF130-03800A This part replaces 09471-12097.

09471-12093

$29.38

13

SCREW, ADJUST (5X16)

09136-05046

$2.45

14

SCREW, HEADLAMP

09139-06118

$3.25

15

CUSHION

09320-10501

$6.23

16

REFLEX-REFLECTOR ASSY, FR | E28

35950-14A00

$16.94
