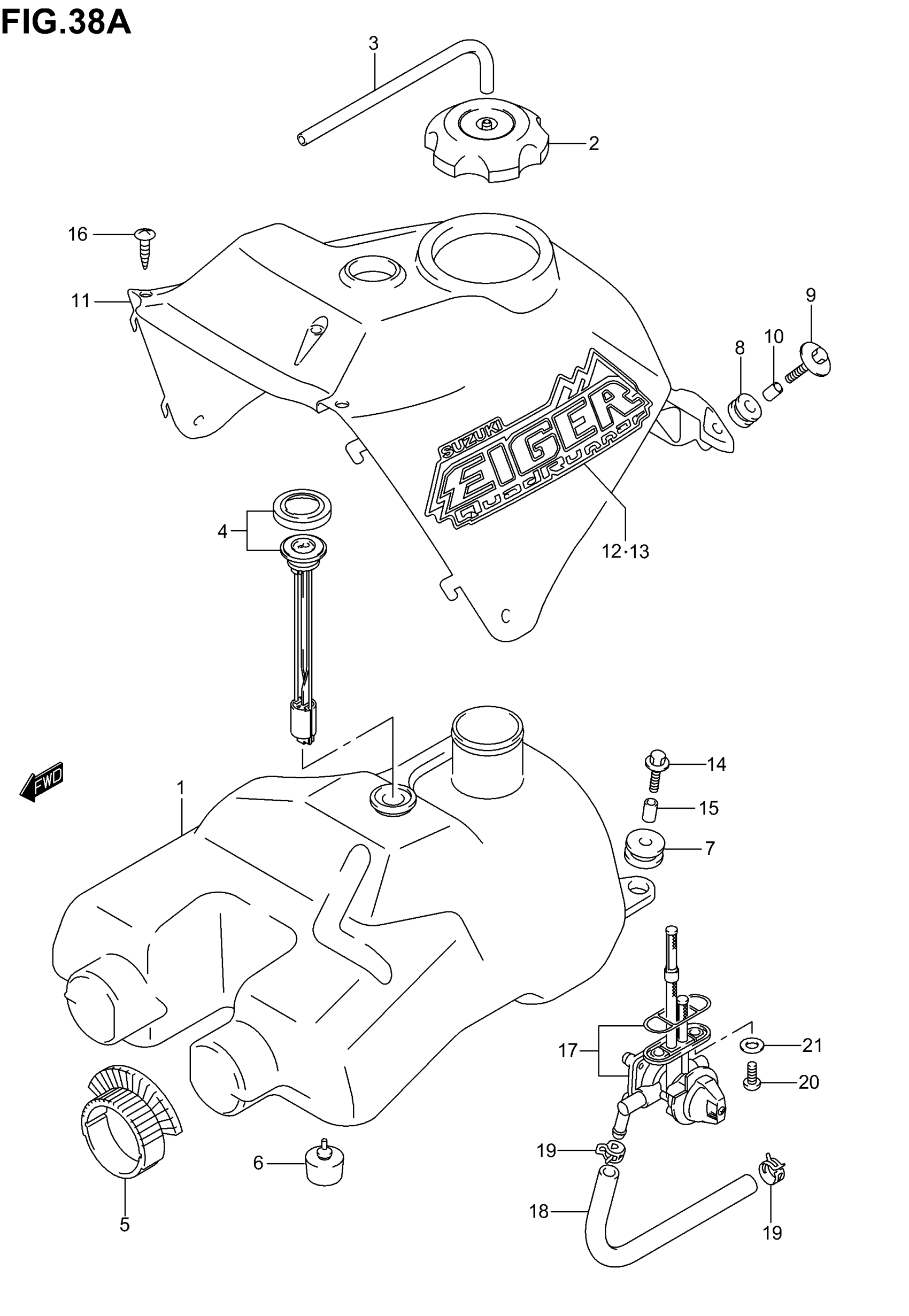

Suzuki LT-A400C (2005) FUEL TANK (MODEL K4/K5) Diagram

TANK ASSY, FUEL

44100-38F00

Unavailable

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

GAS GAUGE, FUEL This part replaces 44580-38F01.

44580-38F02

$63.44

CUSHION,FUEL TANK FR This part replaces 44511-38F00.

44511-38F01

$19.57

CUSHION,FUEL TANK LWR This part replaces 44543-38F00.

44543-38F01

$6.99

CUSHION, SEAT MOUNT

45141-09F00

$4.99

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

BOLT

09116-06050

$2.26

SPACER

44544-38F00

$8.77

COVER, TANK (GREEN)

44271-38F10-YT8

$62.20

COVER, TANK (RED)

44271-38F10-YT9

$66.67

COVER, TANK (YELLOW)

44271-38F10-YU1

$58.55

COVER, TANK (CAMO)

44271-38FC0-YDH

Unavailable

EMBLEM,FUEL TAN | MODEL K4 This part replaces 68111-38F10-MV6.

68111-38F11-MV6

$46.63

EMBLEM, COVER RH | MODEL K5

68111-38F10-AWT

Unavailable

EMBLEM, COVER RH | MODEL K4 FOR YDH

68111-38FA0-MV6

Unavailable

EMBLEM, COVER RH | MODEL K5 FOR YDH

68111-38FA0-AWT

Unavailable

EMBLEM,FUEL TAN | MODEL K4 This part replaces 68121-38F10-MV6.

68121-38F11-MV6

$47.18

EMBLEM,FUEL TAN | MODEL K5 This part replaces 68121-38F10-AWT.

68121-38F11-AWT

$42.97

EMBLEM, COVER LH | MODEL K4 FOR YDH

68121-38FA0-MV6

Unavailable

EMBLEM, COVER LH | MODEL K5 FOR YDH

68121-38FA0-AWT

Unavailable

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

SPACER

09180-06267

$4.10

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

COCK ASSY,FUEL | MODEL K4 This part replaces 44300-38F02.

44300-38F03

$95.43

COCK ASSY,FUEL | MODEL K5 This part replaces 44300-38F20.

44300-38F21

$131.53

HOSE, FUEL

44421-38F20

$19.01

CLIP This part replaces 09401-11407.

09401-11415

$2.23

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

GASKET

09168-06026

$3.10
