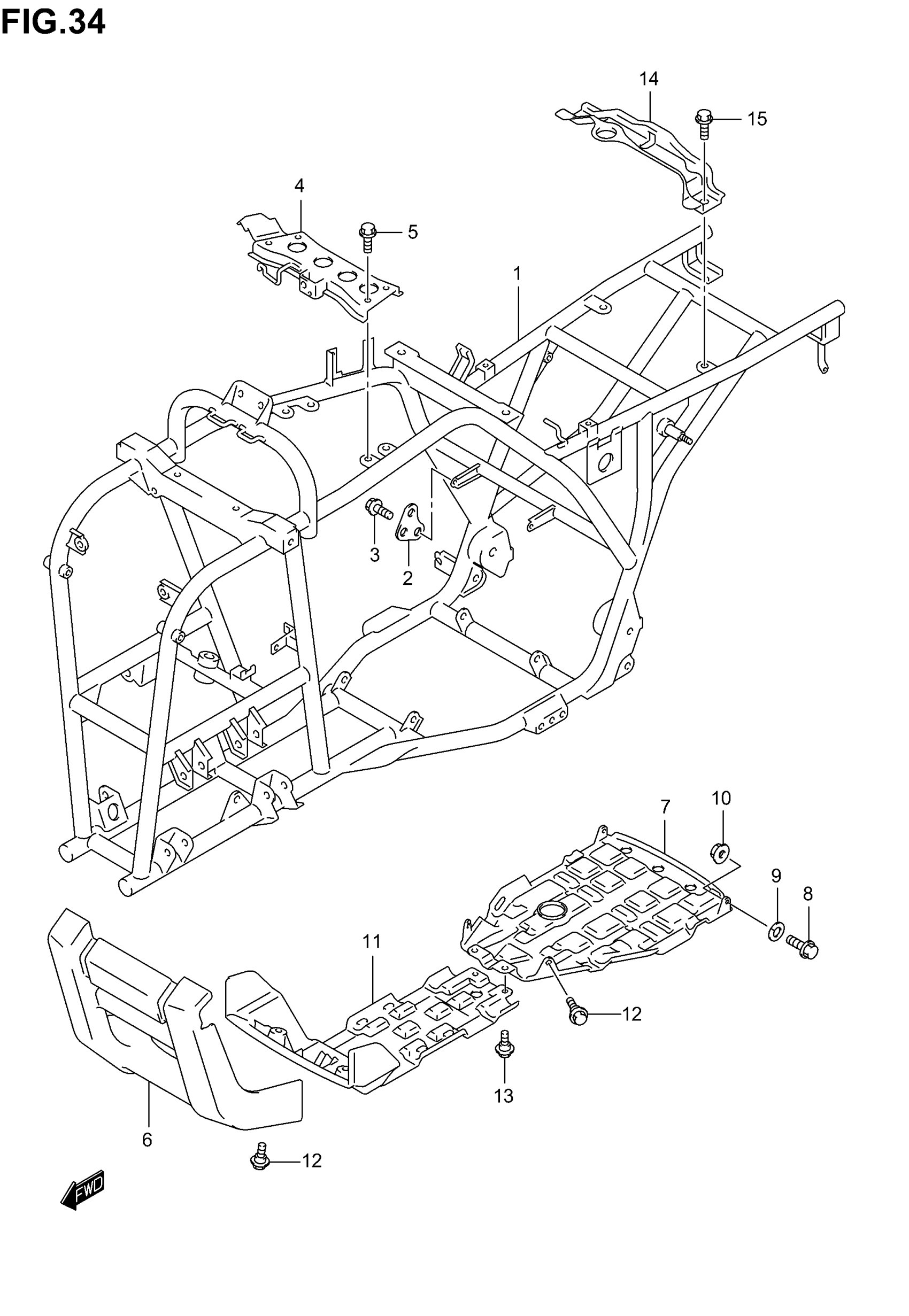

Suzuki LT-A400C (2005) FRAME Diagram

#

Description
Price

1

FRAME,COMPLETE | %F.NO.5SAAK46K3X102000 This part replaces 41100-38F20-019.

41100-38FE1-019

Unavailable

1

FRAME,COMPLETE | F.NO.5SAAK46K3X102001% This part replaces 41100-38FA0-019.

41100-38FE1-019

Unavailable

1

FRAME,COMPLETE | MODEL K5 This part replaces 41100-38FA1-019.

41100-38FE1-019

Unavailable

2

PLATE, ENG MTG REAR RH | %F.NO.5SAAK46K3X102000 This part replaces 41981-38F00.

41981-38FA0

$3.93

2

PLATE, ENGINE MOUNT REAR RH | F.NO.5SAAK46K3X102001%

41981-38FA0

$3.93

3

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

4

BRACKET, ENGINE MOUNT UPPER

41990-38F10

$28.72

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

6

PROTECTOR, FRONT | MODEL K3/K4 This part replaces 42521-38F00.

42521-38F10

Unavailable

6

PROTECTOR, FRONT | MODEL K5

42521-38F10

Unavailable

7

PROTECTOR,ENGINE This part replaces 42511-38F00.

42511-38F04

$28.32

8

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.54

9

WASHER

09160-06109

$1.49

10

NUT This part replaces 08319-31063.

08319-3106A

$2.03

11

PROTECTOR, MIDDLE

42561-38F00

$35.07

12

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.54

13

BOLT, PROTECTOR

09111-06072

$2.03

14

PLATE, BATTERY | %F.NO.5SAAK46K3X102000 This part replaces 41560-38F10.

41560-38FA0

$9.94

14

PLATE, BATTERY | F.NO.5SAAK46K3X102001%

41560-38FA0

$9.94

15

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32
