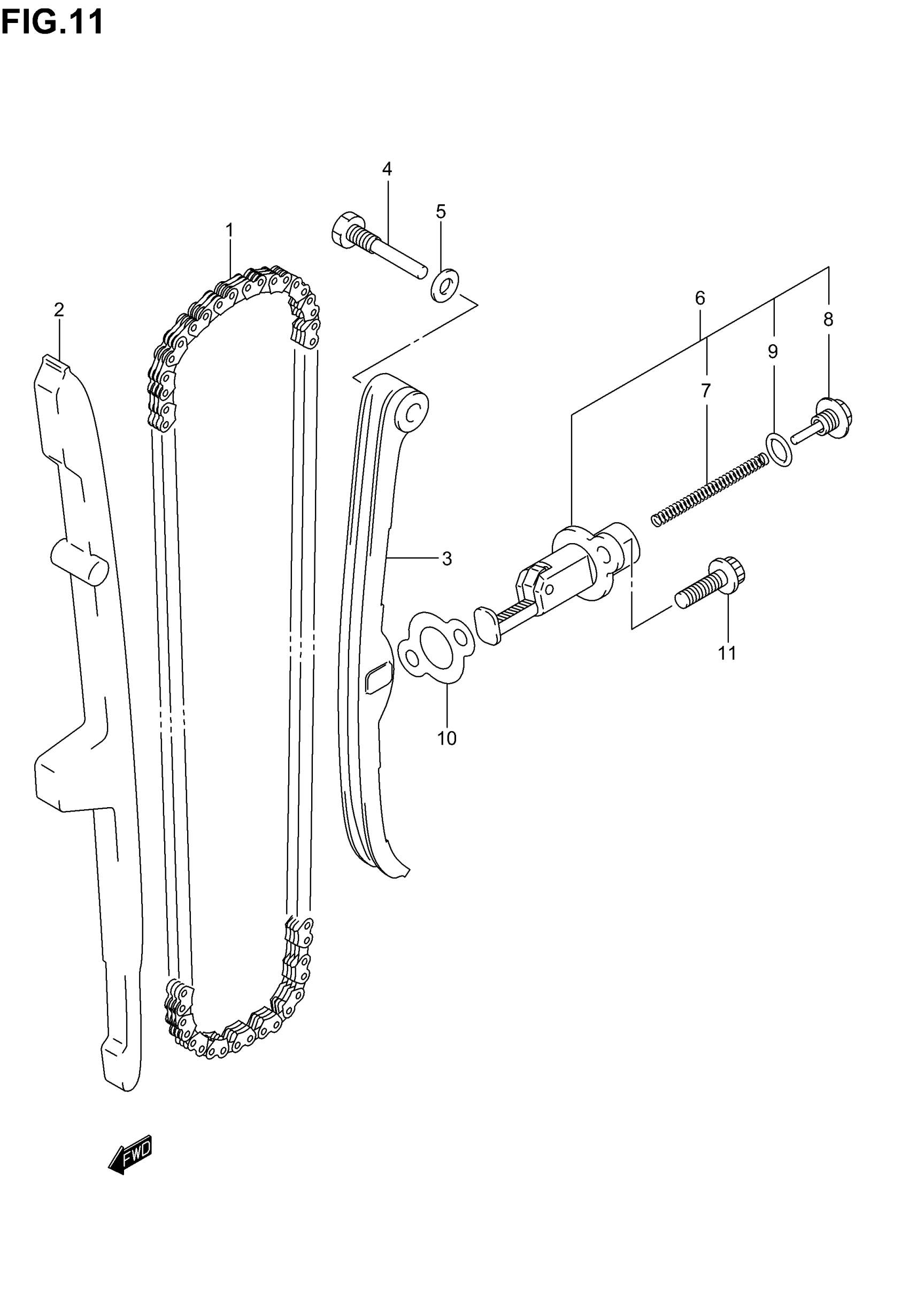

Suzuki LT-A400C (2005) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM (108LE)

12760-19B71

$87.24

2

GUIDE,CAM CHAIN This part replaces 12771-14D10.

12771-14D11

$44.47

3

TENSIONER,CAM CHAIN This part replaces 12811-14D10.

12811-14D11

$53.04

4

BOLT

12812-32410

$4.52

5

GASKET (8.2X14X1)

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 - 9

12830-29B11

$121.55

7

SPRING

12833-29B00

$4.10

8

PLUG

12834-26B00

$18.02

9

O RING

12832-02A00

$2.82

10

.GASKET,TENSIONER ADJUSTER | MODEL K3

12837-19B10

$2.73

10

.GASKET,TENSIONER ADJUSTER | MODEL K4/K5 This part replaces 12837-14D00.

12837-19B10

$2.73

11

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

$3.04
