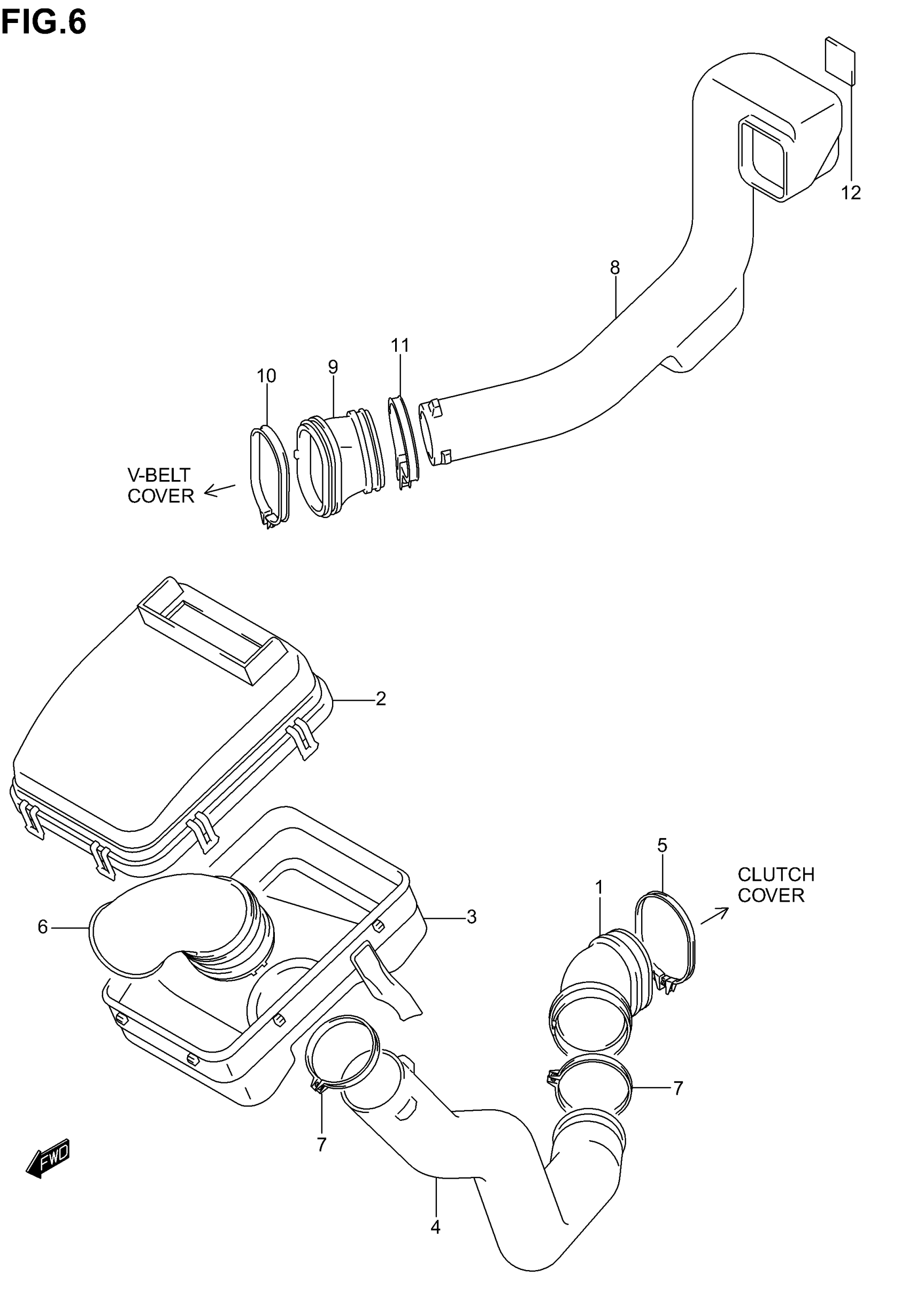

Suzuki LT-A400C (2005) BELT COOLING DUCT Diagram

#

Description

Price

1

CONNECTOR,CLG DUCT FR This part replaces 11386-38F00.

11386-38F01

$18.87

2

BOX, INDUCTION UPPER

11393-38F00

$34.95

3

BOX,INDUCTION LOWER

11391-38F00

$37.62

4

DUCT,BELT CLG FR NO.1

11387-38F00

$37.72

5

CLAMP,BELT CLG DUCT FR

11389-09F50

$8.22

6

DUCT,BELT COOLING FR NO.2 This part replaces 11388-38F00.

11388-38F01

$25.42

7

CLAMP

09402-76208

$6.62

8

DUCT, BELT COOLING DUCT REAR

11398-38F00

$38.95

9

CONNECTOR,CLG DUCT RR This part replaces 11397-38F00.

11397-38F01

$19.20

10

CLAMP,BELT CLG DUCT FR

11389-09F50

$8.22

11

CLAMP NO.2

09402-76208

$6.62

12

CUSHION, BELT COOLING DUCT RR

33652-38F00

Unavailable
