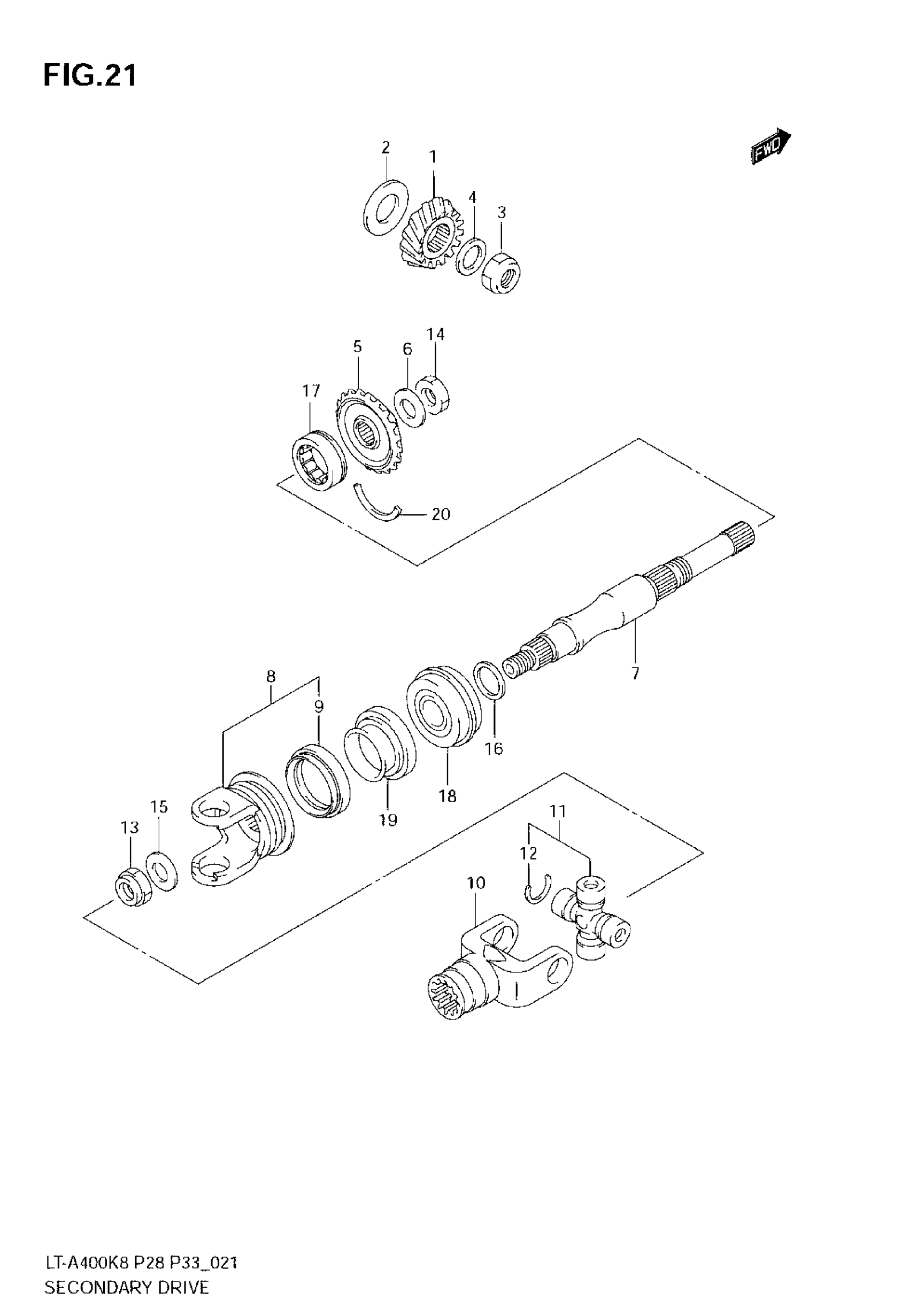

Suzuki LT-A400 (2009) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVE BEVEL | NT:17

24911-38F00

Unavailable

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55 0.58/0.60/0.63/0.65 0.68/0.70/0.73/0.75 0.78/0.80/0.83/0.85 0.88/0.90/0.93/0.95 0.98/1.00/1.03/1.05 1.08/1.10/1.13/1.15 1.18/1.20/1.23/1.25 1.28/1.30

24935-03811

$133.70

3

NUT, SEC DRIVE BEVEL GEAR

09140-20012

$4.32

4

WASHER, SEC DRIVE BEVEL GEAR | 20X32X1

09181-20223

$2.92

5

GEAR, SEC DRIVEN BEVEL

24921-38F00

Unavailable

6

WASHER, SEC DRIVEN GEAR

08211-22365

$5.97

7

SHAFT,SEC DRIVEN OUTPUT RR

24971-27H00

Unavailable

8

YOKE, REAR DRIVE OUTPUT | Includes Item(s) 9

27130-03G00

$156.94

9

PLATE, OUTPUT

27592-38F00

$11.33

10

YOKE, PROP SHAFT JOINT This part replaces 27140-27H00.

27140-27H01

$139.15

11

JOINT SET,UNIVERSAL | Includes Item(s) 12 This part replaces 27200-19810.

27200-19811

$59.54

12

CIRCLIP

09380-20016

$2.32

13

NUT, REAR DRIVE OUTPUT YOKE

09159-16003

$4.00

14

NUT, SEC DRIVEN GEAR

09159-22005

$27.75

15

WASHER, REAR OUTPUT YOKE | 16X30X3

09160-16026

$5.00

16

SHIM SET,SEC DRIVEN BEVEL | T:0.55/0.58/0.60/0.63 0.65/0.68/0.70/0.73 0.75/0.78/0.80/0.83 0.85/0.88/0.90/0.93 0.95/0.98/1.00/1.03 1.05/1.08/1.10/1.13 1.15/1.18/1.20/1.23 1.25/1.28/1.30/1.33 1.35/1.38/1.40

24945-03811

$111.58

17

BEARING, SEC DRIVEN GEAR M | 30X50X17

09263-30050

$57.07

18

BEARING, SEC DRIVEN OUTPUT SHAFT REAR | 25X52X20.6

09267-25014

$124.50

19

OIL SEAL, DRIVEN SHAFT REAR | 34X52X9

09283-34008

$20.72

20

RING, SEC DRIVEN BEARING MDL

09390-50002

$3.03
