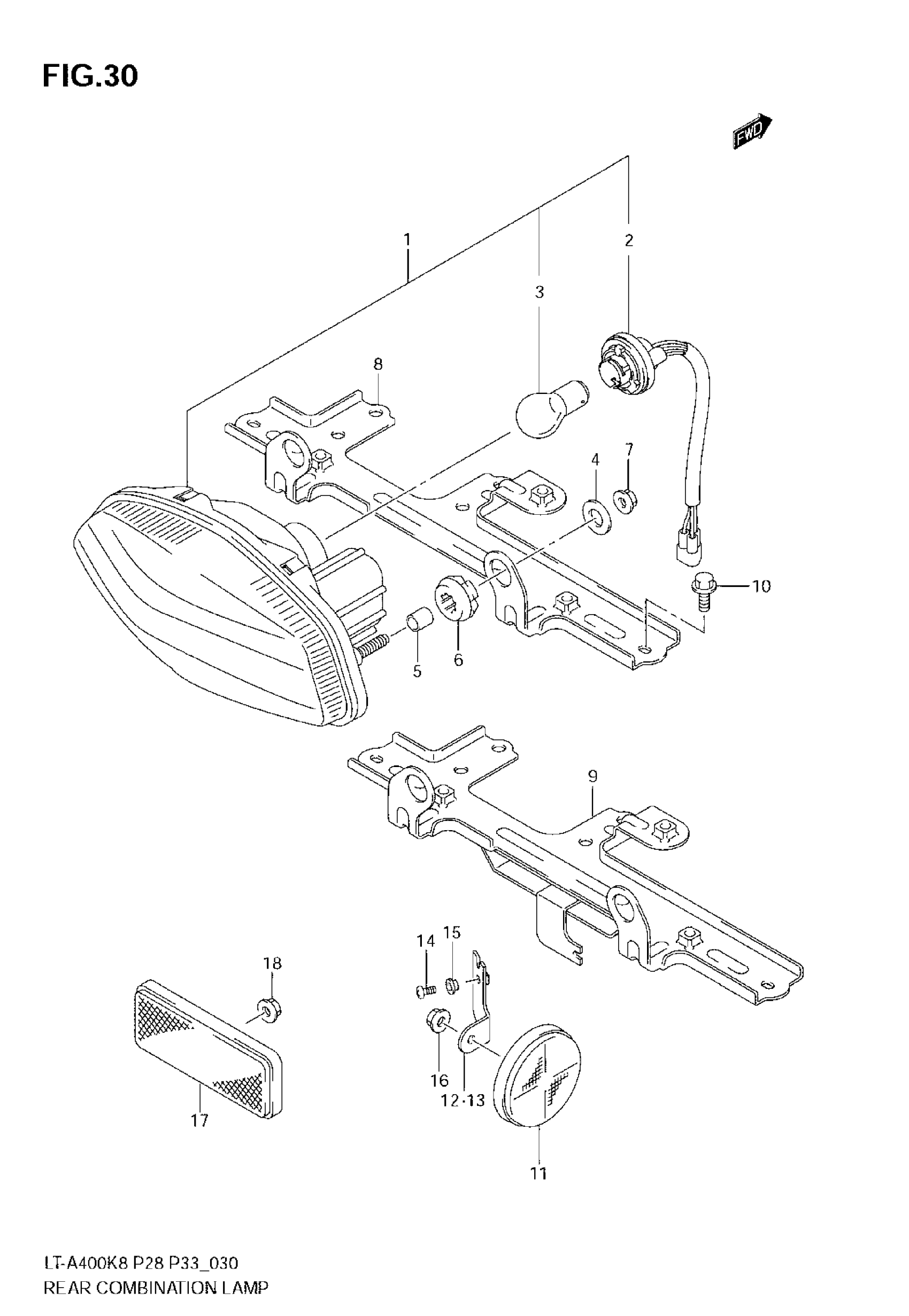

Suzuki LT-A400 (2009) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 3

35710-31G00

$82.87

2

SOCKET & CORD ASSY

35718-03G30

$26.34

3

BULB (12V21/5W)

09471-12128

$6.73

4

WASHER, RR COMB LAMP | 6.5X20X1.2

09160-06077

$1.91

5

SPACER, RR COMB | 6.5X9X10.5

09180-06264

$2.23

6

CUSHION, RR COMB

09320-09018

$2.44

7

NUT, RR COMB

08316-1006B

$2.50

8

BRACKET, RR COMB | E33

35720-27H00

Unavailable

9

BRACKET, RR COMB | E28

35720-27H30

Unavailable

10

BOLT, RR COMB BRK

01550-0612B

$2.39

11

REFLECTOR ASSY, RR SIDE | E28

35970-14A20

$15.10

12

BRACKET, RR SIDE RR, R | E28

35975-27H00

Unavailable

13

BRACKET, RR SIDE RR, L | E28

35976-27H00

$6.42

14

SCREW, RR SIDE RR BKT | E28

09125-05073

$2.38

15

WASHER, RR SIDE | E28

09169-06071

$2.50

16

NUT, RR SIDE RR | E28

08316-1005B

$2.50

17

REFLECTOR ASSY, REAR | E28

35970-07F01

$20.88

18

NUT | E28

08316-1005B

$2.50
