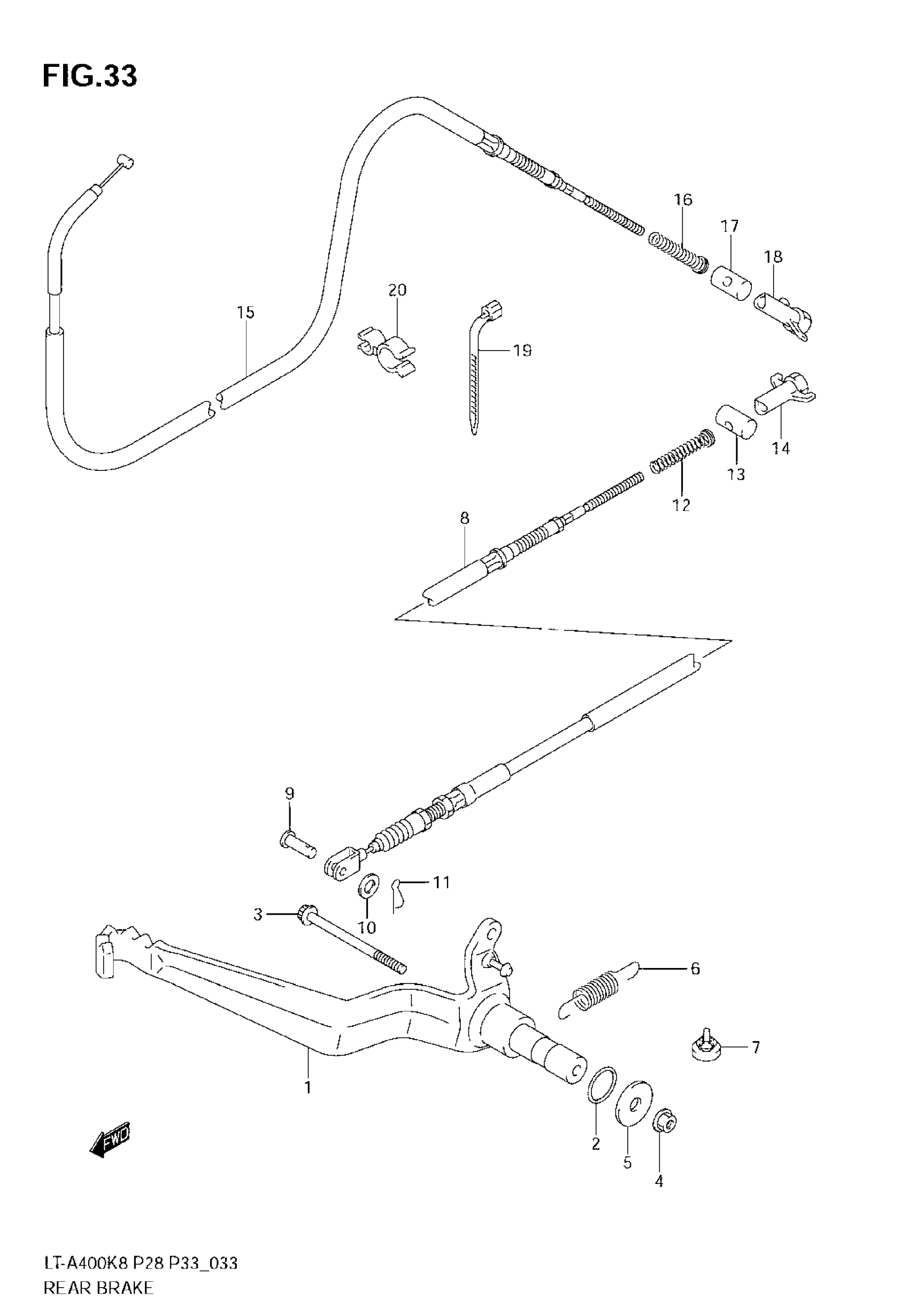

Suzuki LT-A400 (2009) REAR BRAKE Diagram

#

Description
Price

1

PEDAL,BRAKE

43110-27H00

$58.30

2

O RING

09280-17002

$5.11

3

BOLT

01550-0685A

Unavailable

4

NUT

08319-3106A

$2.03

5

WASHER

09160-06136

$1.84

6

SPRING

09443-12019

$4.50

7

CUSHION This part replaces 09321-08022.

09321-08026

$1.94

8

CABLE, REAR BRAKE

58510-27H00

$49.42

9

PIN

09200-05001

$1.65

10

WASHER

08322-0106B

$2.26

11

PIN, COTTER

09385-06012

$1.89

12

SPRING

09440-08042

$2.92

13

PIN, ADJUSTER

09209-13006

$5.24

14

NUT

09150-06015

$3.56

15

CABLE, PARKING BRAKE

58810-27H00

$82.02

16

SPRING

09440-08042

$2.92

17

PIN, ADJUSTER

09209-13006

$5.24

18

NUT

09150-06015

$3.56

19

CLAMP

09407-14403

$2.26

20

CLIP

09408-00056

$3.08
