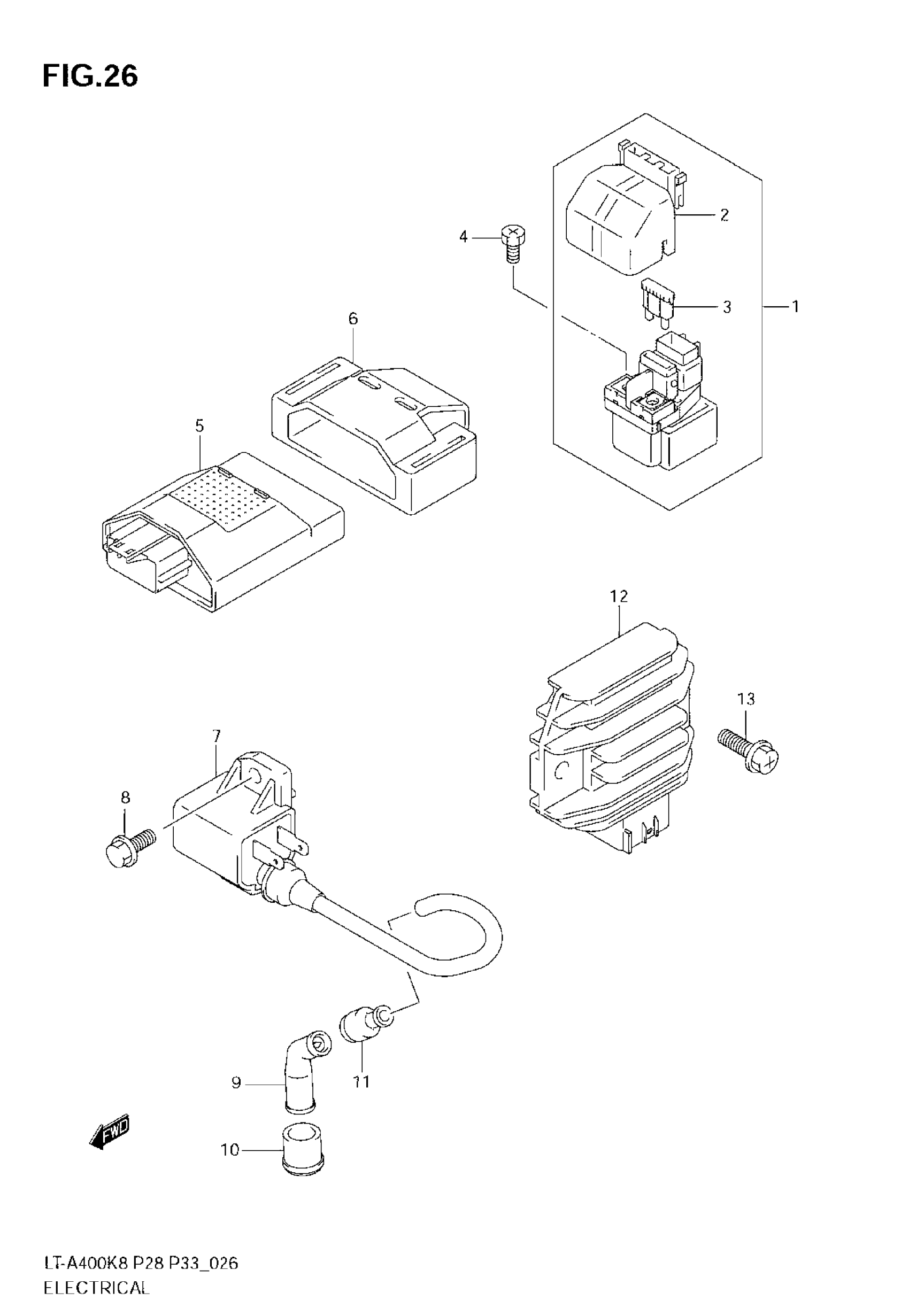

Suzuki LT-A400 (2009) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3

31800-38G10

$97.31

2

COVER, STARTER RELAY

31861-38G00

$4.88

3

FUSE, 30A

09481-30501

$2.32

4

BOLT, STARTING MOTOR TERM

09128-06013

$1.49

5

CDI UNIT

32900-27H10

$808.55

6

CUSHION, CDI UNIT

32980-27H00

Unavailable

7

COIL ASSY, IGNITION

33410-41D20

$95.54

8

BOLT

01550-0616B

$2.48

9

CAP, SPARK PLUG

33510-43010

$24.99

10

SEAL, SPARK PLUG

33541-44D00

$5.30

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

12

RECTIFIER ASSY

32800-38F10

$267.85

13

BOLT

02162-0625B

$2.10
