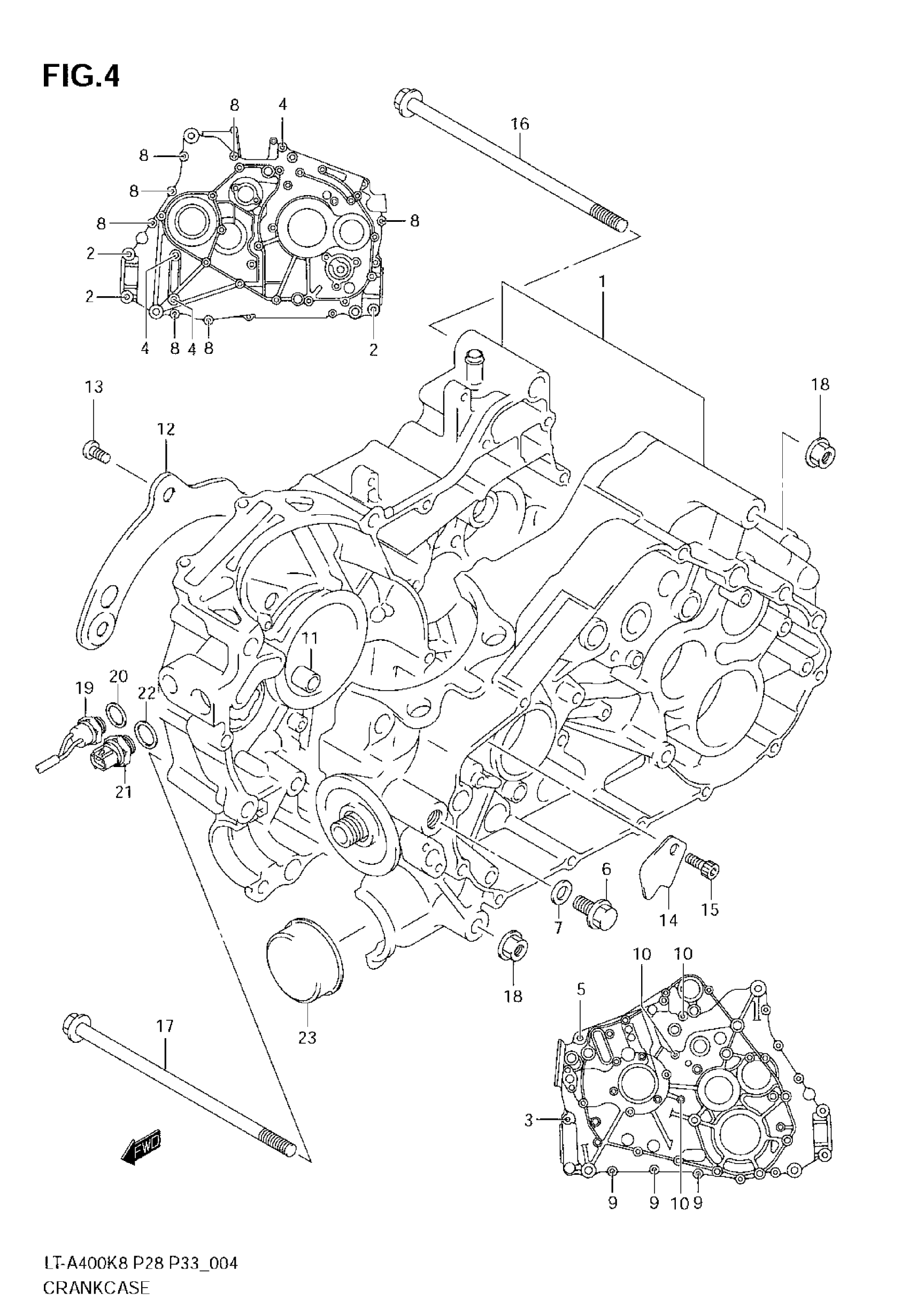

Suzuki LT-A400 (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 11

11302-38812

Unavailable

2

BOLT (8X50)

09103-08081

$3.72

3

BOLT (8X50)

09103-08081

$3.72

4

BOLT (8X85)

09103-08300

Unavailable

5

BOLT (8X60)

09103-08217

$3.72

6

PLUG, OIL PRESSURE

09247-14015

$4.45

7

GASKET, OIL PRESSURE PLUG

09168-14002

$2.26

8

BOLT

01547-0645B

$2.73

9

BOLT

01547-0645B

$2.73

10

BOLT

01547-0670B

$3.29

11

PIN, CRANKCASE

04211-13189

$2.19

12

PLATE, OIL GUIDE

11317-38F00

Unavailable

13

SCREW, OIL GUIDE PLATE

02112-0612B

$1.93

14

PLATE,OIL GUIDE,L

11323-38F00

Unavailable

15

BOLT, OIL GUIDE PLATE LH

02112-0612B

$1.93

16

BOLT (10X195)

09103-10118

$11.56

17

BOLT (10X180)

11611-03G00

$21.98

18

NUT

09159-10115

$3.55

19

SWITCH, COOLING FAN

17680-19B70

$119.65

20

GASKET

09168-16002

$1.91

21

SWITCH,OIL LAMP This part replaces 17680-39D10.

17680-39D11

$105.10

22

GASKET

09168-18009

$3.87

23

PLUG, OUTPUT SHAFT HOLE

11331-44D00

Unavailable
