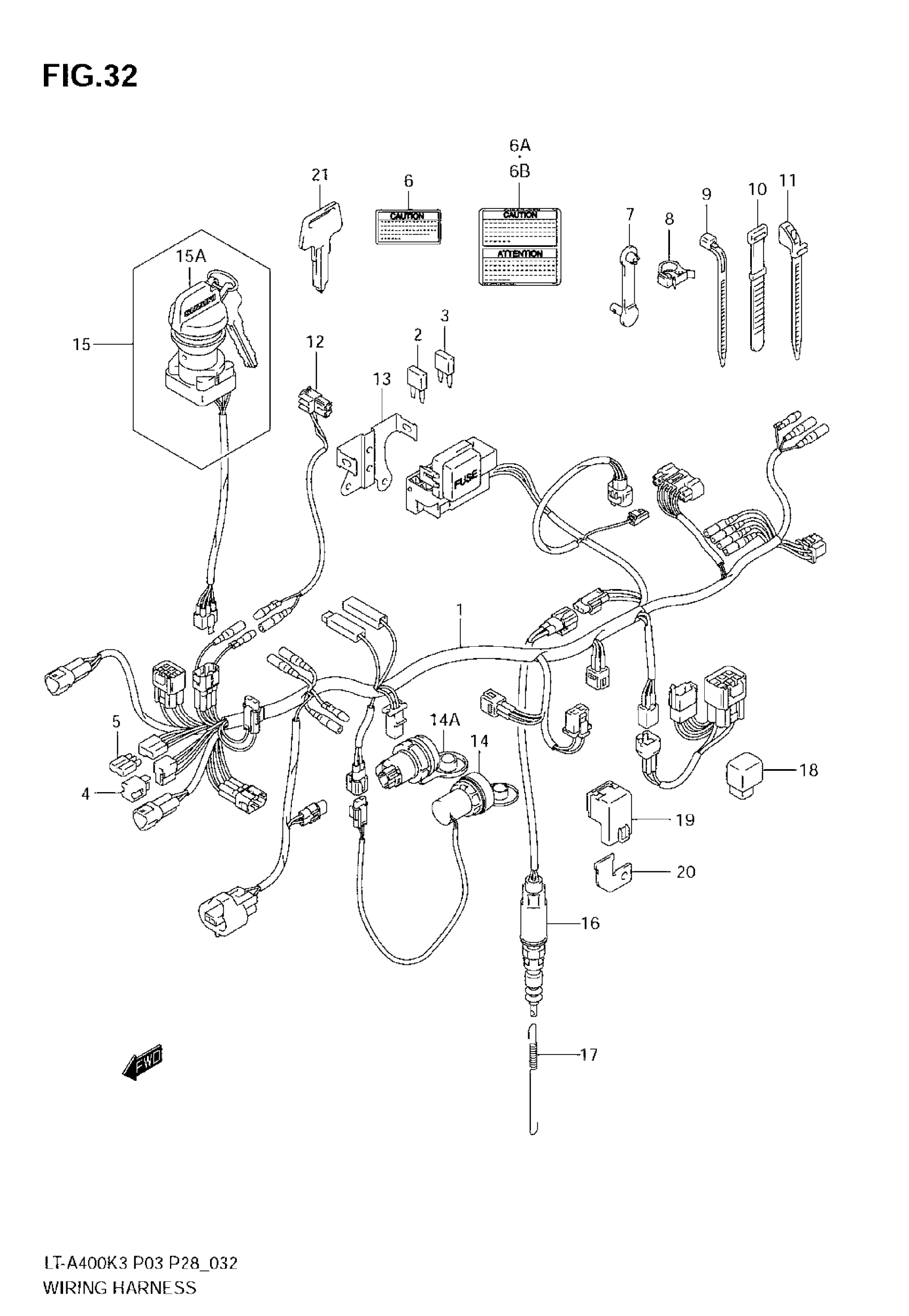

Suzuki LT-A400 (2007) WIRING HARNESS Diagram

HARNESS WIRING | MODEL K3 %F.NO.5SAAK45K3X102000

36610-38F00

Unavailable

HARNESS WIRING | MODEL K3 NO.5SAAK45K3X102001% This part replaces 36610-38F50.

36610-38F51

$284.73

HARNESS WIRING | MODEL K4/K5/K6/K7; Includes Item(s) 2 - 5

36610-38F51

$284.73

.FUSE (5A) | FOR 36610-38F00

09481-05501

Unavailable

FUSE (10A) | FOR 36610-38F00

09481-10501

$2.06

FUSE (10A) | FOR 36610-38F50 36610-38F51

09481-10501

$2.06

RECTIFIER ASSY

32800-16A00

$23.07

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

LABEL, CAUTION MAX AMP | %F.NO.5SAAK45K3X102000

38852-09F21

$7.53

LABEL, CAUTION MAX AMP | F.NO.5SAAK45K3X102001%

38852-09F30

Unavailable

LABEL, CAUTION MAX AMP | %F.NO.5SAAK45K3X102000 P28

38852-03G00

Unavailable

LABEL, CAUTION MAX AMP | F.NO.5SAAK45K3X102001% P28

38852-03G10

Unavailable

CLAMP, WIRING HARNESS

36651-48E00

$3.25

CLAMP (D:20)

09403-20403

$3.58

CLAMP (D:25)

09403-25401

Unavailable

CLAMP (L:125)

09407-14403

$2.26

CLAMP (L:165)

09407-18402

$2.19

CLAMP

09407-12402

$3.04

CLAMP

09407-12407

Unavailable

WIRE,BRAKE SW L This part replaces 36856-35B00.

36856-35B01

$8.60

BRACKET,FUSE BOX

36744-38F00

$11.37

TERMINAL, POWER SOURCE | %F.NO.5SAAK45K3X102000

38850-09F00

Unavailable

TERMINAL, POWER SOURCE | F.NO.5SAAK45K3X102001%

38850-03G00

$75.08

SWITCH ASSY,IGNITION | Includes Item(s) 15A This part replaces 37110-38F00.

37110-38F01

$82.20

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

SPRING, STOP LAMP

09443-06016

$3.30

RELAY,NEUTRAL START

38730-09F00

$46.55

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

BRACKET, GEAR IN START

38741-09F00

Unavailable

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07
