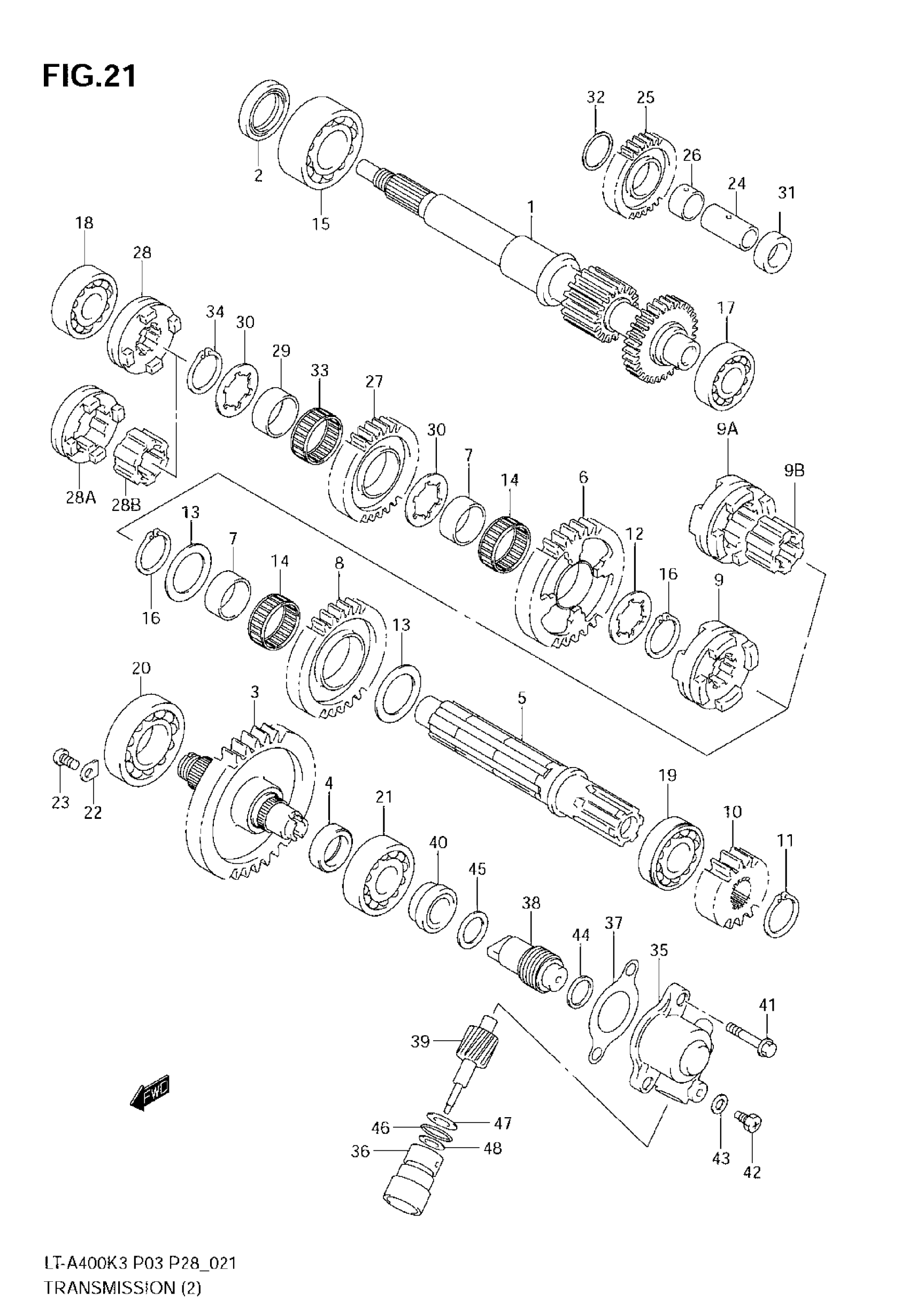

Suzuki LT-A400 (2007) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT, DRIVE (NT:24/16)

29111-38F00

Unavailable

2

SEAL, DRIVE SHAFT

12281-87J00

$15.55

3

SHAFT, SUB T/M OUTPUT

29120-38F00

Unavailable

4

SPACER, SUB T/M NO.2 GEAR

29122-38F00

Unavailable

5

SHAFT, SUB T/M COUNTER

29131-38F00

Unavailable

6

GEAR, SUB T/M DRIVEN LOW | NT:40

29311-09F51

$181.83

7

BUSH, SUB T/M DRIVEN

29315-09F51

$28.08

8

GEAR, SUB T/M DRIVEN HIGH | NT:33

29321-09F51

$172.67

9

DOG, SUB T/M SELECT | %F.NO.5SAAK45K3X102000

29331-09F50

Unavailable

9A

DOG, SUB T/M SELECT | F.NO.5SAAK45K3X102001%

29331-38F10

$84.32

9B

SPACER, SUB T/M SELECT | F.NO.5SAAK45K3X102001%

29332-38F10

Unavailable

10

GEAR, SUB T/M DRIVE NO.2 | NT:19

29411-38F00

$77.92

11

CIRCLIP SUB DRIVE NO.2

08331-31256

$1.49

12

WASHER, DRIVEN GEAR LOW

09167-25017

$3.87

13

WASHER, DRIVEN GEAR HIGH | 25X40X1.0

09181-25251

$3.87

14

BEARING, SUB T/M GEAR | 30X35X12

09263-30018

$22.25

15

BEARING (30X62X23.8) | 30X62X23.8

09267-30005

$119.55

16

SNAP RING

09380-25003

$3.04

17

BEARING, DRIVE SHAFT LH | 20X47X14

09262-20069

$23.28

18

BEARING, SUB T/M COUNTER RH | 20X52X15

09262-20073

$23.28

19

BEARING, SUB T/M COUNTER LH | 25X52X15

09262-25003

$24.83

20

BEARING, SUB T/M OUTPUT | 35X72X17

09262-35038

$46.10

21

BEARING, SUB T/M OUTPUT LH | 20X52X15

09262-20073

$23.28

22

RETAINER, BEARING

24741-21A00

$2.81

23

SCREW, RETAINER (6X12)

09125-06110

$2.12

24

SHAFT,REVERSE IDLE

24551-38F00

Unavailable

25

GEAR, REVERSE IDLE (NT:28)

24561-09F50

Unavailable

26

BUSH, REV IDLE GEAR

29222-44D00

$26.34

27

GEAR, REVERSE DRIVEN (NT:32)

24571-38F00

$119.18

28

DOG, REVERSE GEAR | %F.NO.5SAAK45K3X102000

24581-38F00

Unavailable

28A

DOG, REVERSE GEAR | F.NO.5SAAK45K3X102001%

24581-38F10

Unavailable

28B

SPACER, REVERSE IDLE | F.NO.5SAAK45K3X102001%

24582-38F10

Unavailable

29

BUSH, REV DRIVEN GEAR

29315-09F51

$28.08

30

WASHER, REV DRIVEN GEAR

09167-25017

$3.87

31

SPACER, REVERSE IDLE | 20X30X9.5

09180-20082

Unavailable

32

WASHER, REV IDLE GEAR | 20X30X1.0

09181-20195

$2.60

33

BEARING, REV DRIVEN GEAR | 30X35X12.8

09263-30018

$22.25

34

SNAP RING

09380-25003

$3.04

35

HOUSING, ODOMETER GEAR

26441-19B01

$63.48

36

SLEEVE

26442-19B00

$40.33

37

GASKET

26451-19B12

$4.72

38

GEAR, DRIVE (NT:9)

26461-38F00

Unavailable

39

GEAR, DRIVE (NT:15)

26471-38F00

$41.88

40

SPACER

26481-19B00

Unavailable

41

BOLT

09103-06201

$2.64

42

BOLT (6X10) This part replaces 09135-06013.

09135-06501

$3.04

43

WASHER (6.2X11X1.2)

09168-06004

$1.49

44

WASHER (15X20X1.0)

09181-15111

$2.97

45

WASHER (17X24X1.0)

09181-17139

$3.07

46

O RING (D:1.9,ID:16.6)

09280-17004

$3.67

47

SEAL (5X12X8) | %F.NO.5SAAK45K3X102000

09289-05002

$8.43

47

SEAL (5X12X8) | F.NO.5SAAK45K3X102001%

09283-05001

$11.58

48

WASHER

08211-08151

$2.06
