Description

Price

1

SPEEDOMTR ASSY( This part replaces 34110-38F50.

34100-38F50

Unavailable

1

SPEEDOMETER (KILO) | P28 This part replaces 34110-38F40.

34110-38F20

Unavailable

2

DAMPER

34114-38F40

$84.98

3

KNOB

34124-38F40

$9.03

4

SNAP PIN

34136-38F40

$62.72

5

CORD ASSY

34173-38F40

Unavailable

6

WASHER (5.2X18X1.2) This part replaces 34181-38F40.

34181-09F00

$2.87

7

DAMPER

34188-38F40

Unavailable

8

BRACKET ASSY

34950-38F40

$96.48

9

SCREW (2X6)

09139-02003

$1.65

10

BULB (12V,1.7W)

09471-12165

$3.51

11

BOLT, SPEEDOMETER

01550-0616A

$1.97

12

CABLE ASSY,SPEE This part replaces 34910-38F00.

34910-38F02

$50.35

13

CLIP

09408-00198

Unavailable

14

LAMP ASSY,PILOT | Includes Item(s) 15 - 20 This part replaces 36380-38F10.

36380-38F11

$89.67

15

SOCKET

34173-26F00

$4.55

16

RING

34178-26F00

$4.15

17

LENS, NEUTRAL

36321-38F00

$10.30

18

LENS, REVERSE

36329-38F00

$10.48

19

LENS, OIL TEMP

36361-38F00

$10.48

20

BULB (12V,30W,T.6.5)

09471-12103

$3.83

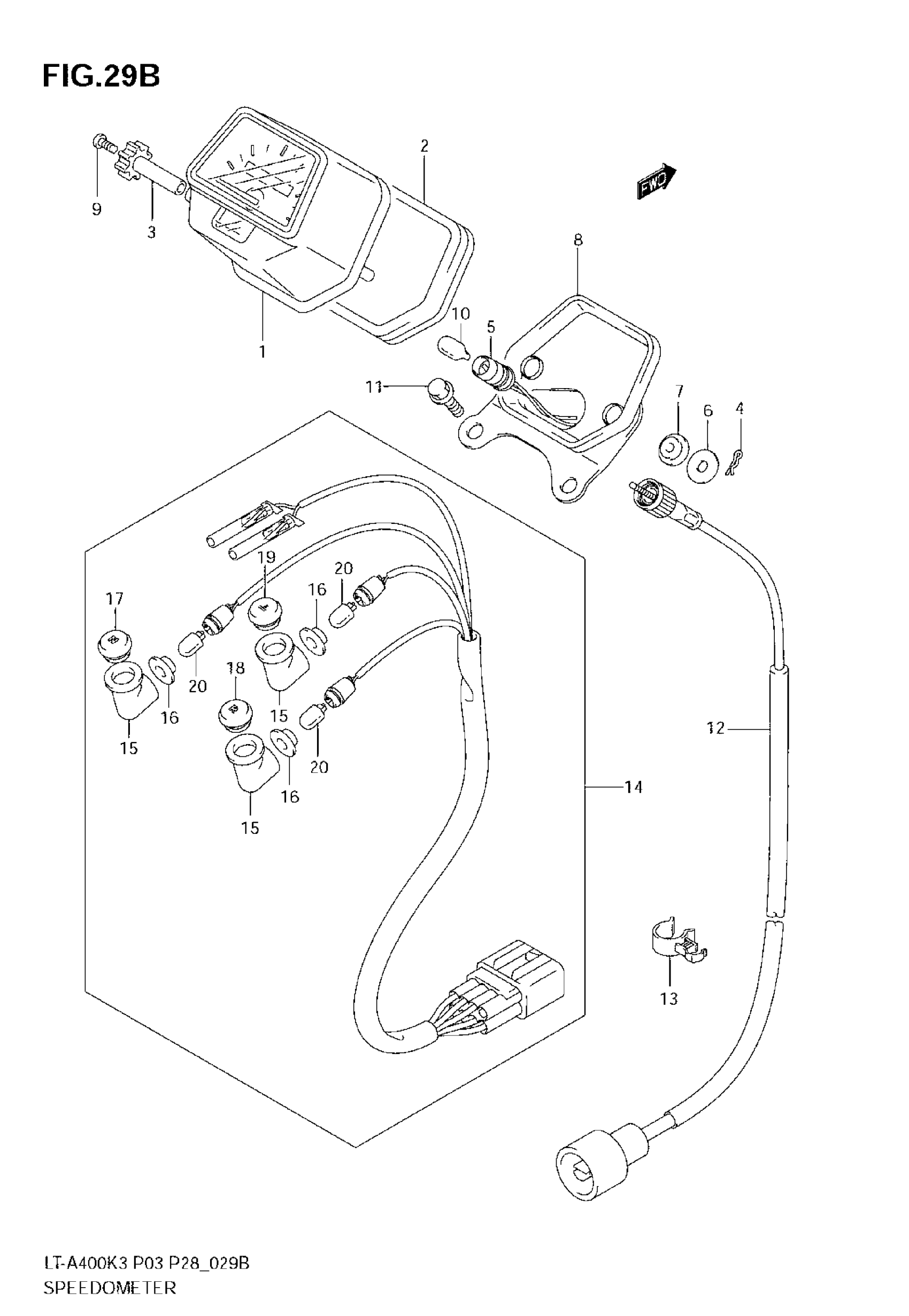

Suzuki LT-A400 (2007) SPEEDOMETER (MODEL K6/K7) Diagram

SPEEDOMTR ASSY( This part replaces 34110-38F50.

SPEEDOMETER (KILO) | P28 This part replaces 34110-38F40.

DAMPER

KNOB

SNAP PIN

CORD ASSY

WASHER (5.2X18X1.2) This part replaces 34181-38F40.

DAMPER

BRACKET ASSY

SCREW (2X6)

BULB (12V,1.7W)

BOLT, SPEEDOMETER

CABLE ASSY,SPEE This part replaces 34910-38F00.

CLIP

LAMP ASSY,PILOT | Includes Item(s) 15 - 20 This part replaces 36380-38F10.

SOCKET

RING

LENS, NEUTRAL

LENS, REVERSE

LENS, OIL TEMP

BULB (12V,30W,T.6.5)
