2007 Suzuki LT-A400 Rear Brake Diagram

← All diagrams

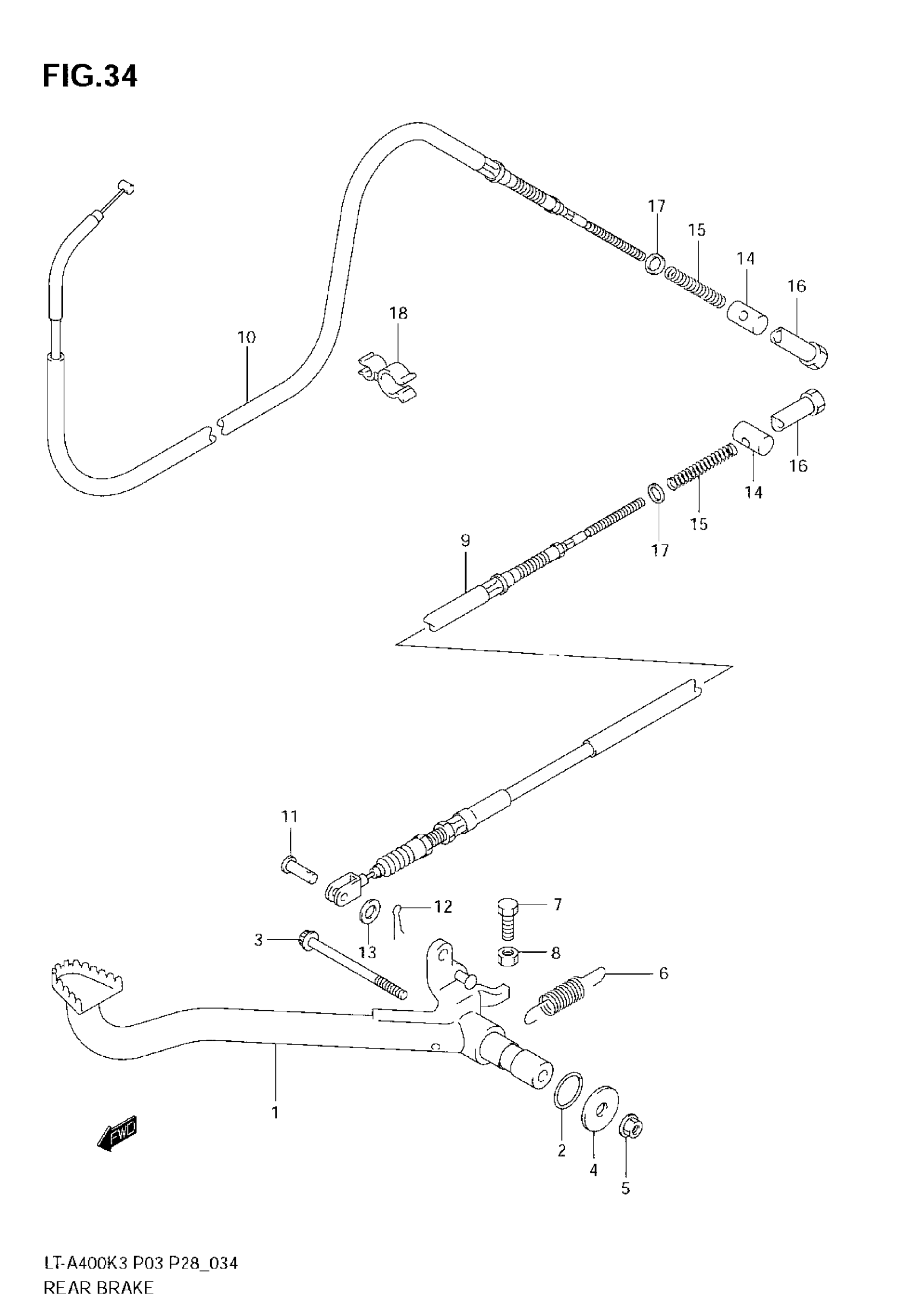

Find the part on the Rear Brake diagram for your 2007 Suzuki LT-A400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A400 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-38F10

1
Out of stock

2

O RING

09280-17002

2
Out of stock

3

1

$5.75

In stock

4

WASHER

09160-06136

1
Out of stock

5

NUT This part replaces 08319-31063.

08319-3106A

1
Out of stock

6

SPRING, RETURN

09443-12019

1
Out of stock

7

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

8

NUT This part replaces 08310-00063.

08310-0006A

1
Out of stock

9

CABLE, BRAKE PEDAL

58510-38F01

1
Out of stock

10

CABLE, REAR BRAKE | MODEL K3/K4

58810-38F00

1
Out of stock

10

CABLE COMP,RR B | MODEL K5/K6/K7 This part replaces 58810-38F10.

58810-38F11

1
Out of stock

11

PIN

09200-05001

1
Out of stock

12

COTTER PIN

09385-06012

1
Out of stock

13

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

14

PIN, ADJUSTER

09209-13006

2
Out of stock

15

SPRING | %F.NO.5SAAK45K3X102000 This part replaces 09440-08040.

09440-08040-XC0

2
Out of stock

15

SPRING | F.NO.5SAAK45K3X102001%

09440-08042

2
Out of stock

16

NUT | MODEL K3/K4

09150-06012

2
Out of stock

16

NUT | MODEL K5/K6/K7

09150-06015

2
Out of stock

17

WASHER,6.1X8.5X | MODEL K3/K4 This part replaces 09160-06144.

09160-06144-XC0

2
Out of stock

18

CLIP

09408-00056

1
Out of stock
