2007 Suzuki LT-A400 Front Master Cylinder Diagram

← All diagrams

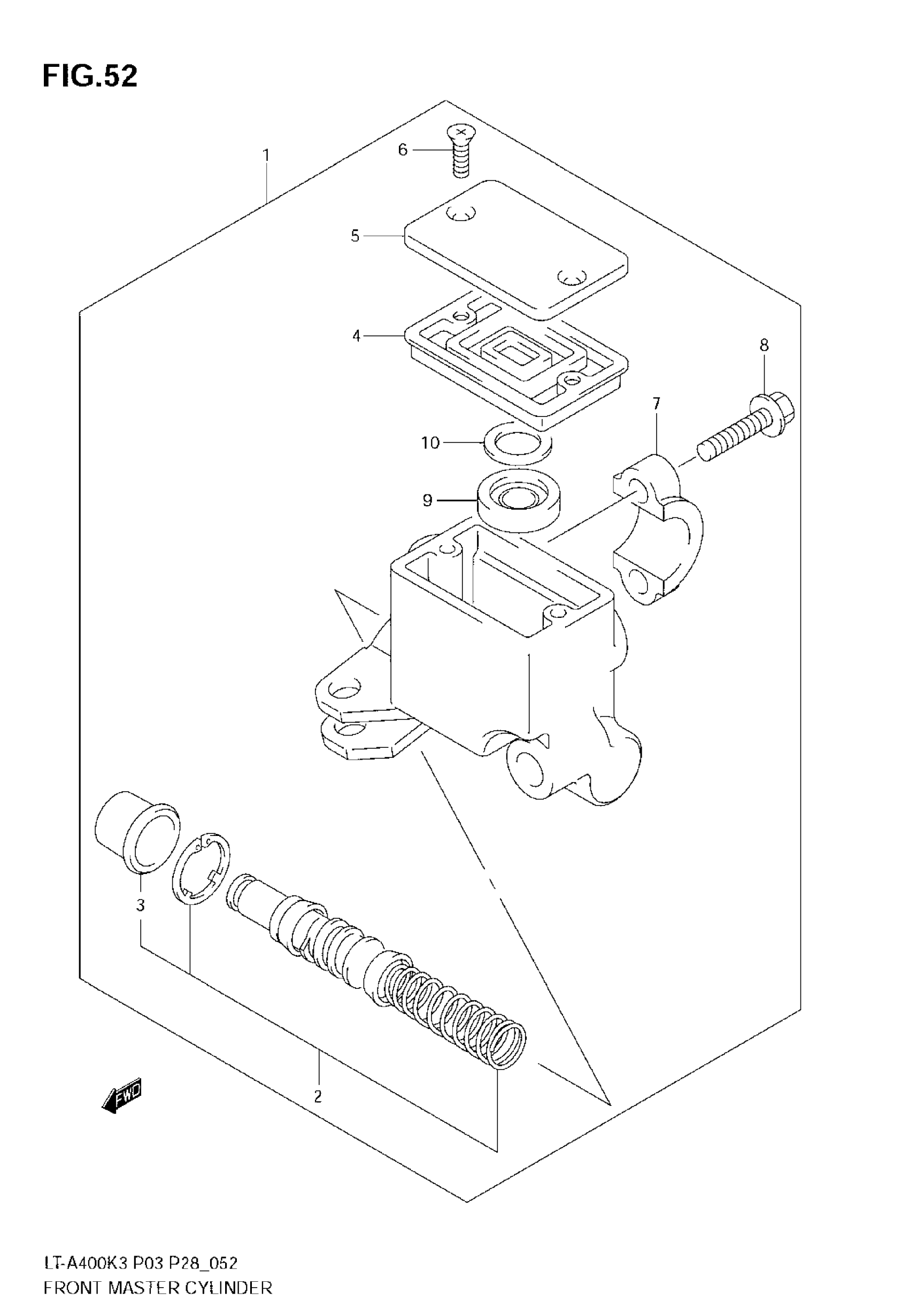

Find the part on the Front Master Cylinder diagram for your 2007 Suzuki LT-A400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A400 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER | MODEL K3/K4/K5/K6

59600-44B11

1
Out of stock

1

CYLINDER ASSY, FRONT MASTER | MODEL K7; Includes Item(s) 2 - 10

59600-12D10

1
Out of stock

2

PISTON / CUP SET

59600-45850

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

DIAPHRAGM

59667-44B00

1
Out of stock

5

CAP

69669-24A01

1
Out of stock

6

SCREW, CAP

69689-49300

2
Out of stock

7

.HOLDER

59671-36500

1
Out of stock

8

BOLT HOLDER SET | MODEL K3/K4/K5/K6

59675-19C00

2
Out of stock

8

BOLT | MODEL K7

59675-02FA0

2
Out of stock

9

SEPARATOR

59748-15400

1
Out of stock

10

PLATE

59749-15400

1
Out of stock
← Front Caliper Rear Brake →

More Brakes diagrams
