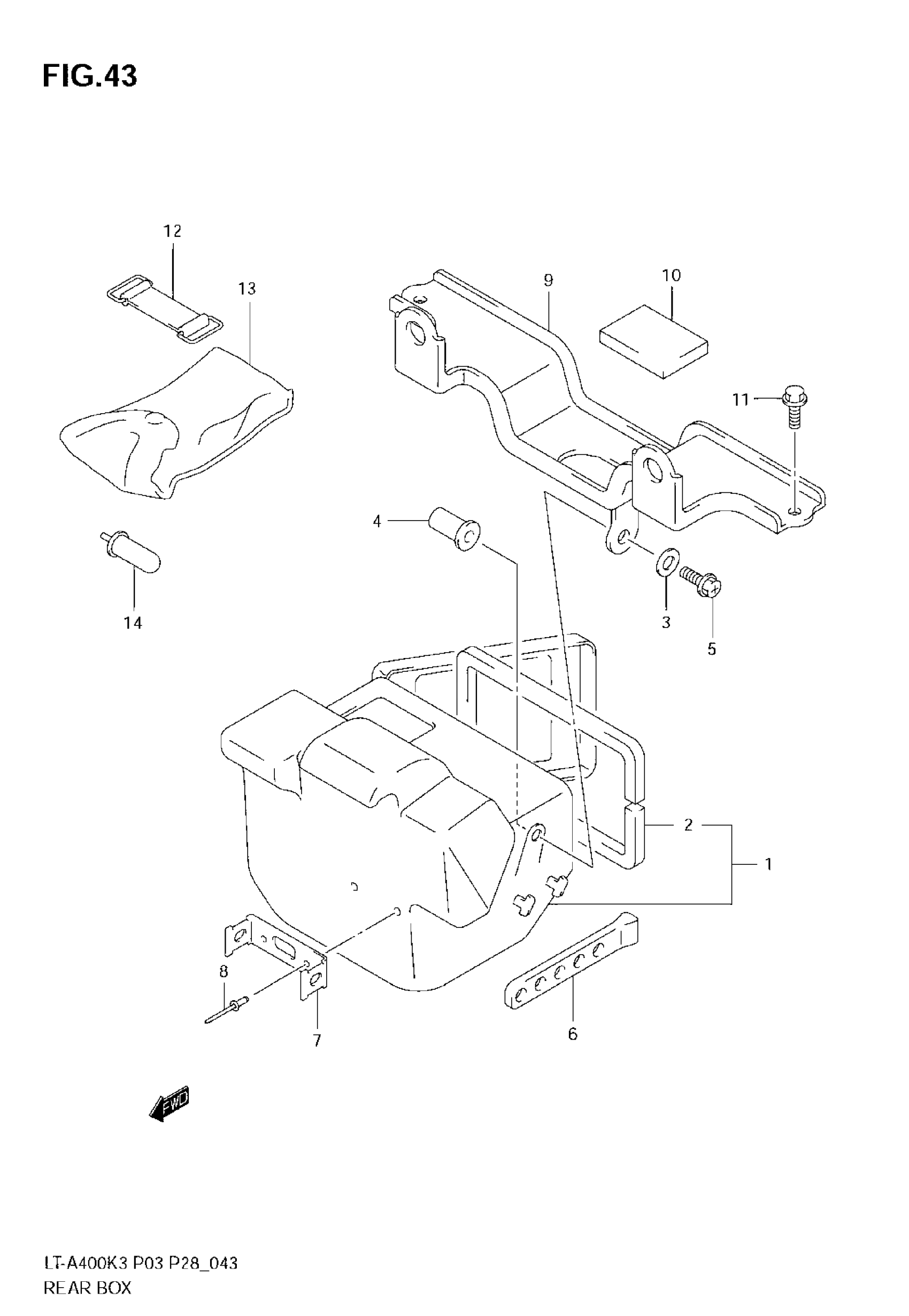

Suzuki LT-A400 (2007) REAR BOX Diagram

BOX REAR | MODEL K3/K4 This part replaces 93110-38FA0.

93110-38FA1

Unavailable

BOX REAR | MODEL K5/K6/K7; Includes Item(s) 2

93110-38FA1

Unavailable

MOLDING

93114-38FA0

Unavailable

WASHER

09160-05043

$2.30

NUT

09159-05019

$7.14

SCREW This part replaces 02162-05203.

02162-0520B

$2.62

BAND, BOX

93191-09F11

$12.17

PLATE, CDI UNIT This part replaces 47413-38F00.

47413-38F01

Unavailable

RIVET

09229-04025

$2.81

HOLDER, BOX

93140-38F02

$45.35

CUSHION

44831-17B00

$6.70

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

BAND, TOOL | MODEL K3/K4/K5/K6 This part replaces 09462-00073.

09462-00093

$9.24

O RING(D:3.5,ID | MODEL K7 This part replaces 09280-61002.

09280-61004

$2.60

TOOL ASSY This part replaces 09800-01007.

09800-01017

$31.50

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92
