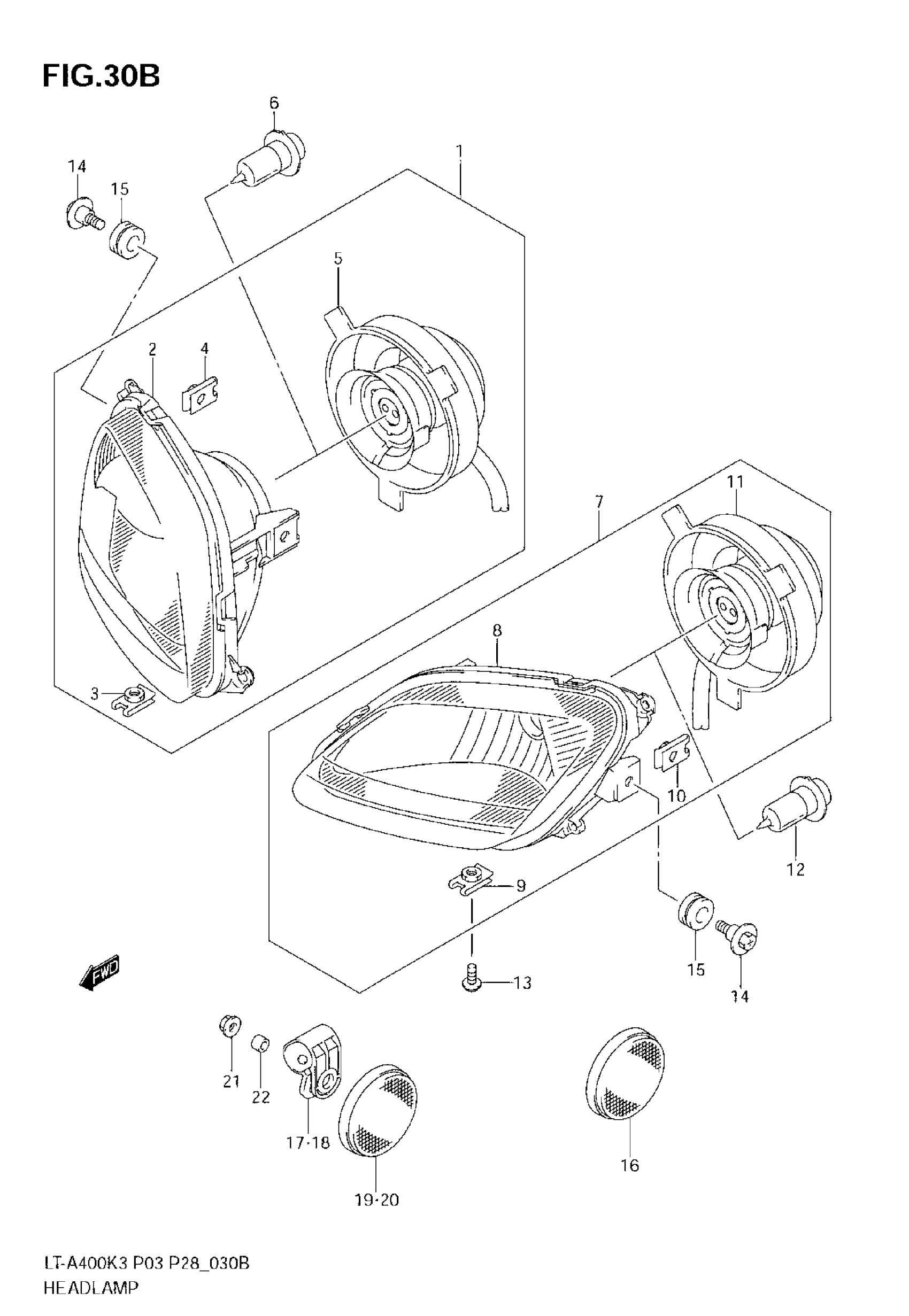

Suzuki LT-A400 (2007) HEADLAMP (MODEL K6/K7) Diagram

#

Description
Price

1

HEADLAMP ASSY, RH | FOR 019,YT9,YLG,YLZ; Includes Item(s) 2 - 5

35100-05G60-999

$298.30

2

UNIT, RH

35121-03G00

$195.13

3

NUT (M5)

35157-05G50

$6.75

4

NUT (M6)

35157-05G60

$6.75

5

CORD ASSY

35171-05GR0

$45.40

6

BULB (12V,30/30W)

09471-12093

$26.51

7

HEADLAMP ASSY, LH | FOR 019,YT9,YLG,YLZ; Includes Item(s) 8 - 11

35300-05G60-999

$298.30

8

UNIT, LH

35321-03G00

$147.61

9

NUT (M5)

35157-05G50

$6.75

10

NUT (M6)

35157-05G90

$6.75

11

CORD ASSY

35171-05GL0

$44.55

12

BULB (12V,30/30W)

09471-12093

$26.51

13

SCREW, ADJUST (5X16)

09136-05046

$2.67

14

SCREW, HEADLAMP

09139-06118

$3.05

15

CUSHION

09320-10501

$4.85

16

REFLEX-REFLECTOR ASSY, FR | MODEL K6 E28

35950-14A00

$15.95

17

BRACKET, FR SIDE, R | MODEL K7 E28

35656-03G00

Unavailable

18

BRACKET, FR SIDE, L | MODEL K7 E28

35656-03G00

Unavailable

19

REFLEX REFLECTOR, FR, R | MODEL K7 E28

35950-14A20

$12.48

20

REFLEX REFLECTOR, FR, L | MODEL K7 E28

35950-14A20

$12.48

21

NUT | MODEL K7 E28 This part replaces 09159-05044.

09159-05049

$2.50

22

SPACER (5.5X9.5X6.5) | MODEL K7 E28

09180-05053

Unavailable
