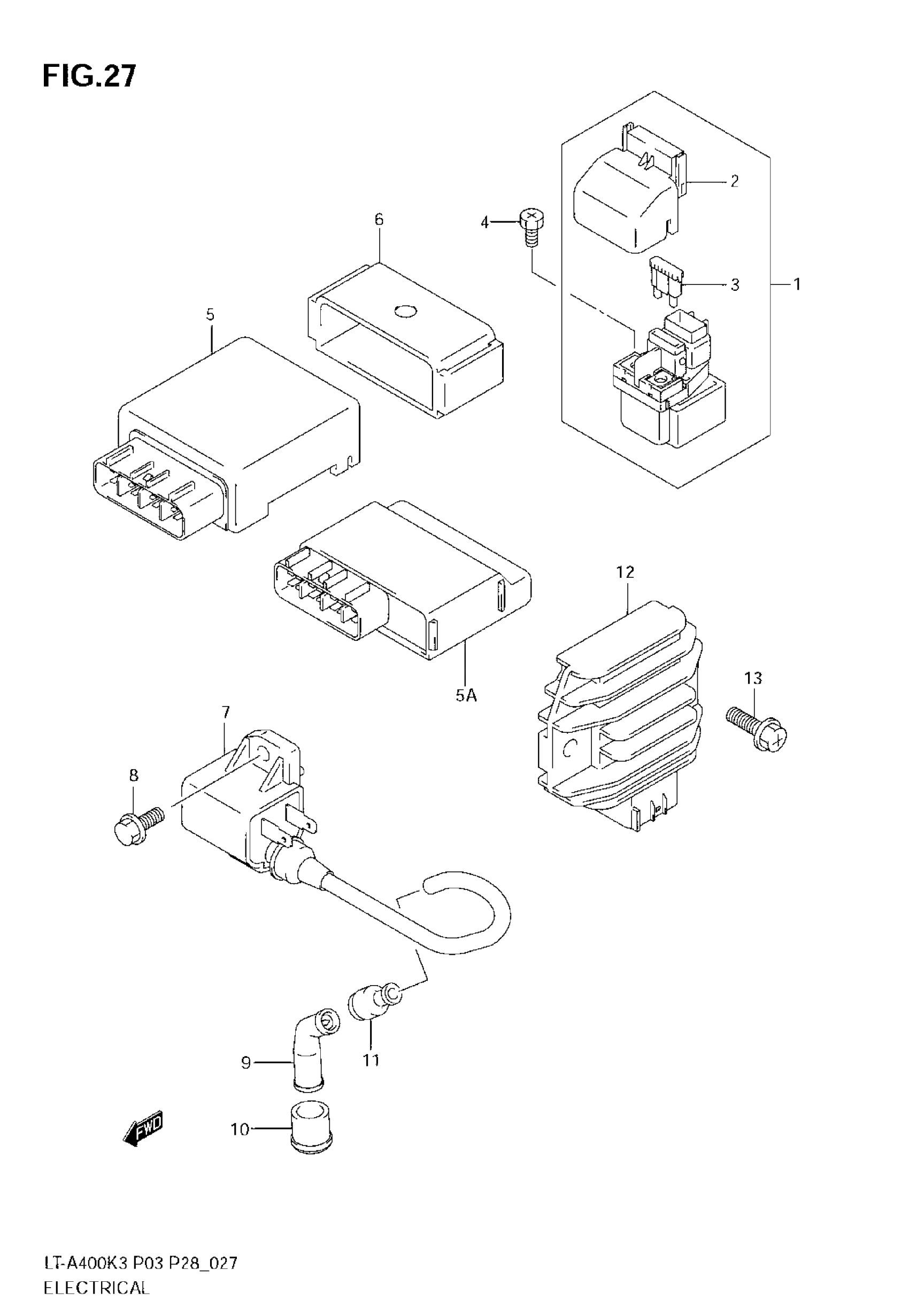

Suzuki LT-A400 (2007) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3

31800-03G00

$89.07

2

COVER, STARTER RELAY

31861-26E00

$3.92

3

FUSE, 30A

09481-30101

$2.28

4

BOLT, STG MOT TERM

09128-06013

$1.24

5

CDI UNIT | MODEL K3/K4 This part replaces 32900-38F20.

32900-38F40

$566.31

5A

CDI UNIT | MODEL K5/K6/K7

32900-38F40

$566.31

6

CUSHION, CDI

32980-38F00

$14.98

7

COIL ASSY, IGNITION

33410-41D20

$87.46

8

BOLT

01550-0616A

$1.97

9

CAP, SPARK PLUG

33510-43010

$22.88

10

SEAL, SPARK PLUG

33541-44D00

$4.85

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

12

RECTIFIER ASSY

32800-38F10

$292.50

13

BOLT

02162-0625A

$1.68
