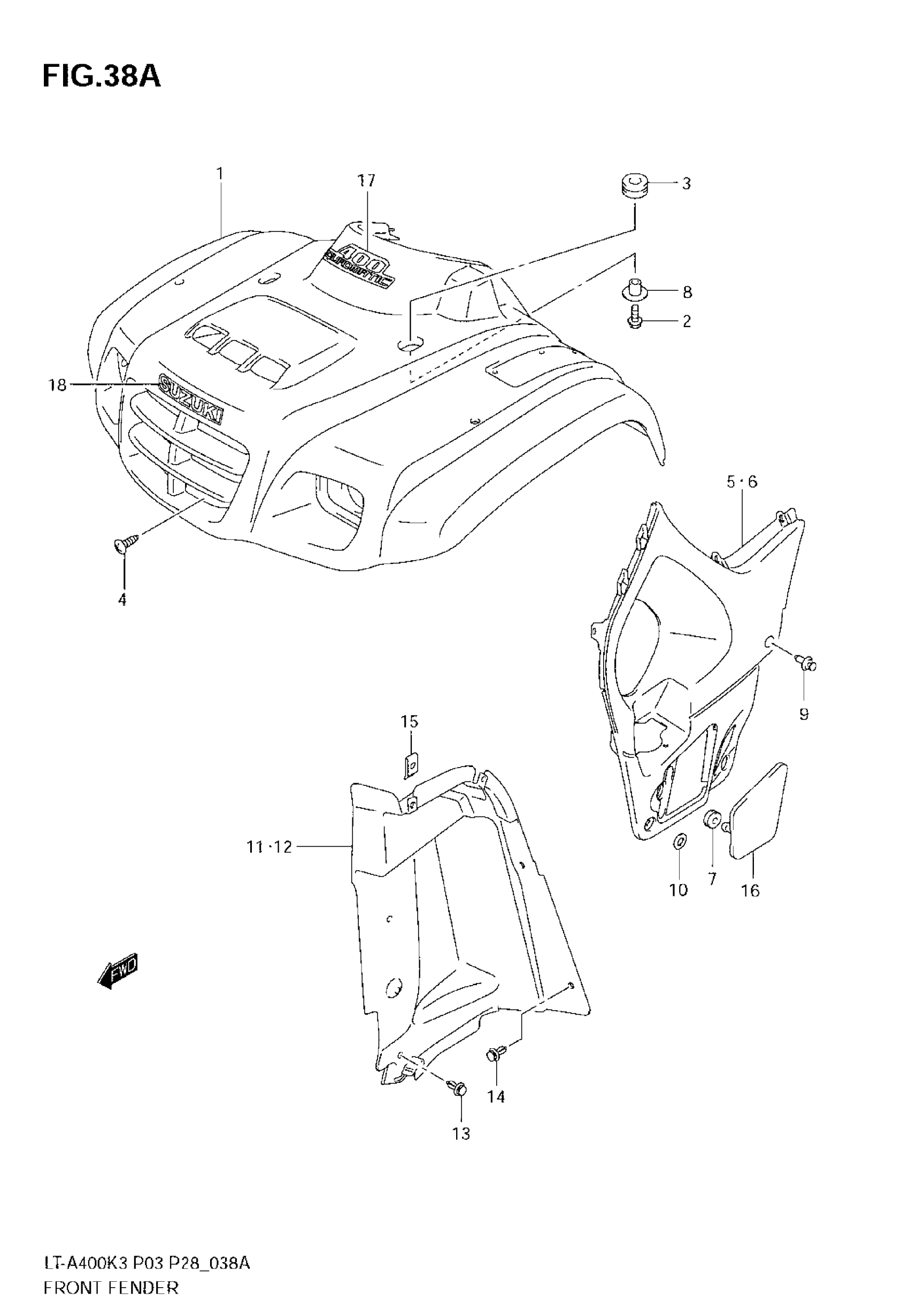

Suzuki LT-A400 (2007) FRONT FENDER (MODEL K4) Diagram

#

Description
Price

1

FENDER,FRONT | P33 This part replaces 53111-38F20-YT8.

53111-38F32-YT8

Unavailable

1

FENDER, FRONT Y This part replaces 53111-38F20-YU1.

53111-38F21-YU1

Unavailable

2

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

3

CUSHION (11.5X32X12.2) This part replaces 09320-11019.

09320-11021

$4.17

4

SCREW, CENTER

09139-06083

$2.26

5

COVER, SIDE RH (BLACK)

53112-38F00-291

$53.39

6

COVER, SIDE LH (BLACK)

53122-38F00-291

$62.57

7

CUSHION, LH

09320-08018

$3.04

8

SPACER

09169-06074

$7.95

9

CLIP, INNER

09409-07333

$2.31

10

WASHER, FOOTREST SIDE This part replaces 53341-38F00.

53341-38F01

$3.26

11

MUD FLAP,FENDER This part replaces 53411-38F01.

53411-38F02

$45.68

12

MUD FLAP,FENDER This part replaces 53421-38F00.

53421-38F01

$104.63

13

CLIP, SIDE FRONT

09409-08335

$2.47

14

CLIP, SIDE

09409-07333

$2.31

15

NUT, INNER

09148-05038

$1.97

16

LID (BLACK)

53123-38F00-291

Unavailable

17

EMBLEM, FRONT

68151-38F20-MV9

Unavailable

18

EMBLEM, FRONT LOWER (SILVER)

68171-38F00-20H

$13.03
