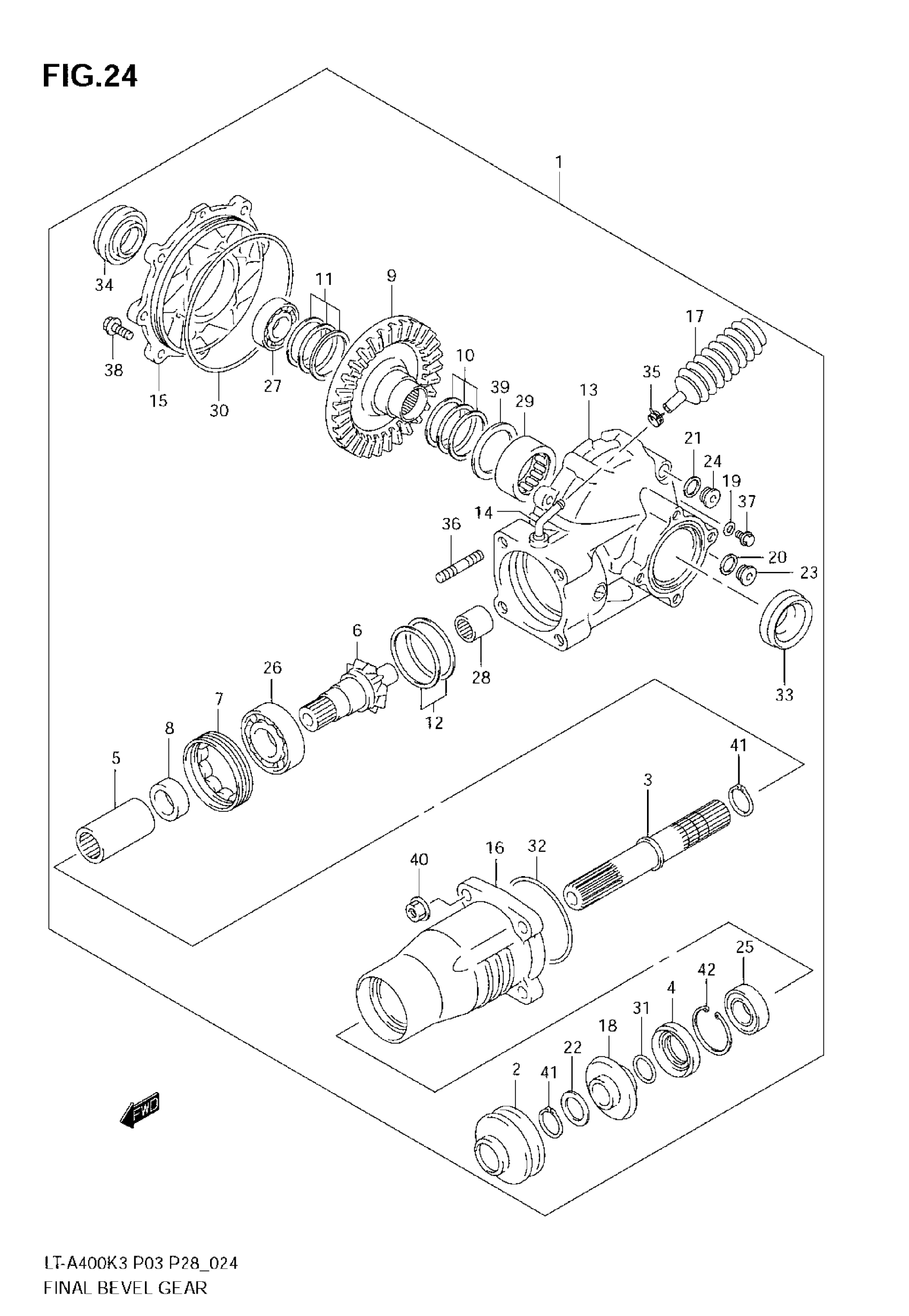

Suzuki LT-A400 (2007) FINAL BEVEL GEAR (REAR)(MODEL K3) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 42 This part replaces 27300-38861.

27301-38820

Unavailable

2

BOOT,RR FINAL D This part replaces 27153-44D80.

27153-44D81

$22.22

3

SHAFT, RR FINAL DRIVE This part replaces 27155-38F00.

27155-38FM0

$199.22

4

SEAL, FINAL DRIVE BRG

27156-38F00

$17.43

5

JOINT, REAR FINAL DRIVE

27157-38F00

$26.10

6

GEAR, REAR FINAL DRIVE | NT:10

27311-38F00

Unavailable

7

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$52.73

8

SPACER, REAR FINAL DRIVE

27316-38F00

Unavailable

9

GEAR, FINAL DRIVEN BEVEL | NT:36

27321-38F00

Unavailable

10

SHIM SET, FINAL DRIVEN LH | T:0.30/0.35/0.40/0.50/0.60

27326-09810

$15.27

11

SHIM SET, FINAL DRIVEN RH | T:0.30/0.35/0.40/0.50/0.60

27326-18810

$15.00

12

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$28.18

13

CASE, REAR FINAL GEAR

27450-38F00

Unavailable

14

UNION, BREATHER

09364-08009

$9.50

15

CASE, REAR FINAL DRIVEN RH

27461-38F00

Unavailable

16

HOUSING, RR FINAL DRIVE

27471-38F50

Unavailable

17

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

18

COLLAR, OUTPUT OIL SEAL

27590-38F00

$62.32

19

GASKET, OIL CHECK BOLT

09168-06018

$1.77

20

GASKET, OIL DRAIN

09168-16002

$1.91

21

GASKET, OIL FILLER

09168-16002

$1.91

22

WASHER, RR FINAL DRIVE

09181-25223

$3.21

23

PLUG, OIL DRAIN

09248-16012

$4.64

24

PLUG, OIL FILLER

09248-16012

$4.64

25

BEARING, REAR FINAL

09262-25132

$53.08

26

BEARING, FINAL DRIVE GEAR

09262-28014

$57.95

27

BEARING, FINAL DRIVEN RH

09262-45012

$95.42

28

BEARING, FINAL DRIVE PILOT

09263-20089

$52.37

29

BEARING, FINAL DRIVEN LH

09263-40012

$62.43

30

O RING, BEARING CASE RH

09280-00036

$17.93

31

O RING, COLLAR OUTPUT | ID:23.7,DD:2.4

09280-24010

$5.64

32

O RING, RR FINAL HOUSING | ID:74.0,DD:3.1

09280-76008

$8.75

33

OIL SEAL, FINAL DRIVEN LH | 38X54X6.0

09283-38009

$17.33

34

OIL SEAL, FINAL DRIVEN RH | 42X62X7.0

09283-42011

$12.61

35

CLAMP

09401-08411

$1.78

36

STUD BOLT (L:30) This part replaces 01421-10303.

01421-1030A

$2.57

37

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

38

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

39

WASHER, FINAL DRIVEN LH

08211-40505

Unavailable

40

NUT This part replaces 08316-10103.

08316-1010B

$2.66

41

CIRCLIP, REAR FINAL DRIVE

08331-31256

$1.49

42

CIRCLIP This part replaces 08331-41526.

08331-41529

$4.45
