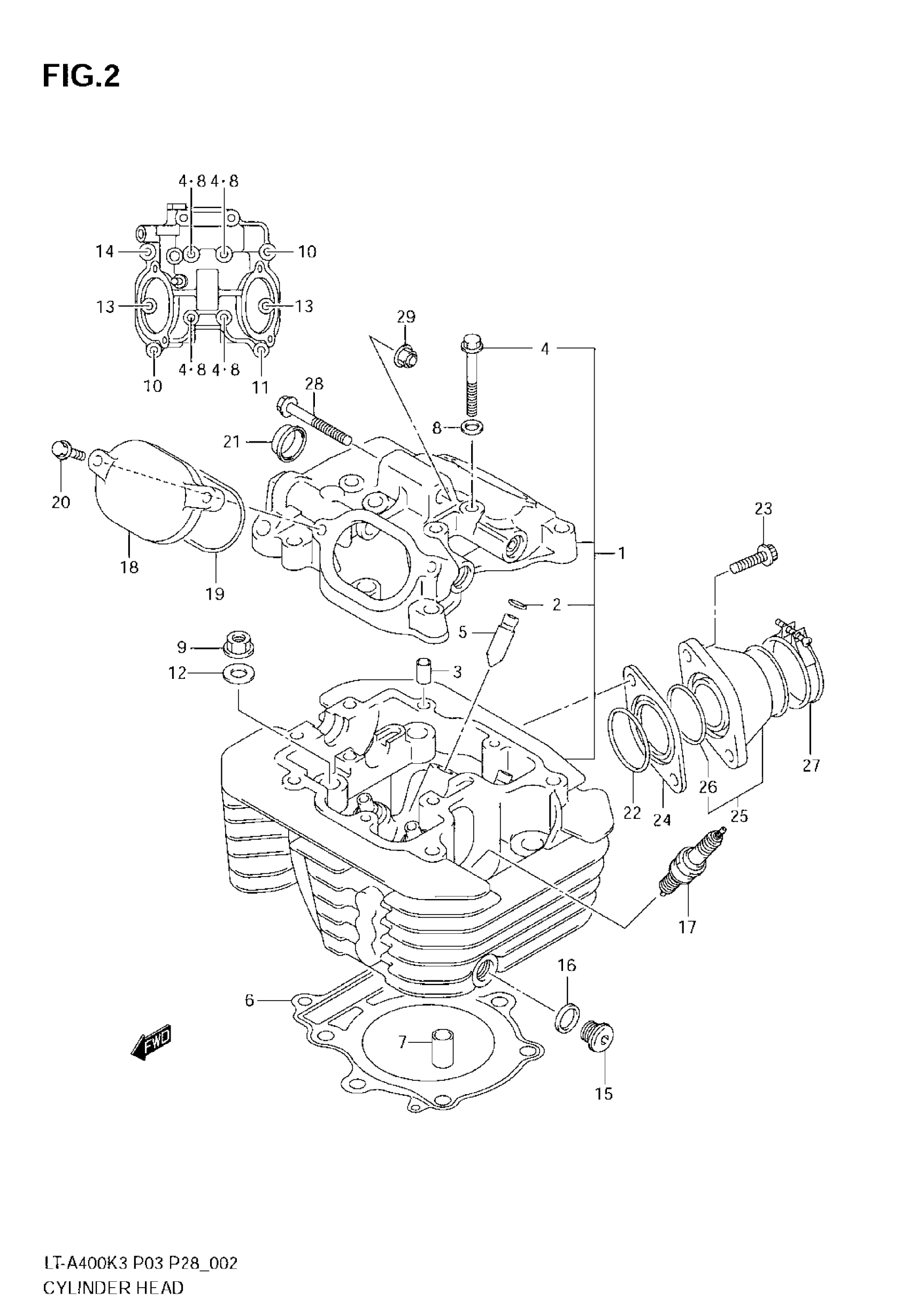

Suzuki LT-A400 (2007) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 4 This part replaces 11100-38F00.

11100-27H00

$1,220.88

2

.RING (10X85)

09381-10004

$1.50

3

PIN

09206-08001

$1.78

4

BOLT (6X55)

09103-06102

$2.10

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$39.23

6

GASKET, CYLINDER HEAD

11141-38F00

$35.76

7

PIN

09206-13004

$2.40

8

GASKET

09168-06023

$2.35

9

NUT This part replaces 08316-10083.

08316-1008B

$2.66

10

BOLT, HEAD COVER (L:35)

09103-06108

$2.23

11

BOLT, HEAD COVER (L:40)

09103-06504

$2.19

12

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

13

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

14

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

15

PLUG, OIL GALLERY

09248-12004

$7.95

16

GASKET, OIL GALLERY PLUG

09168-12002

$1.59

17

SPARK PLUG (NGK,CR7E)

09482-00516

$6.47

17

SPARK PLUG (DENSO,U22ESR-N)

09482-00515

$5.97

17

SPARK PLUG (NGK,CR6E) | OPT

09482-00528

$6.47

17

SPARK PLUG (DENSO U20ESR-N) | OPT

09482-00529

$7.27

17

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.73

17

SPARK PLUG (DENSO U24ESR-N) | OPT

09482-00457

$6.09

18

CAP,INSPECTION

11175-47D00

$24.10

19

.O RING,INSPECTION CAP

11177-14D01

$4.60

20

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

21

PLUG, HEAD

09241-25007

$6.17

22

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

23

BOLT, CENTER This part replaces 07120-06253.

07120-0625A

$2.50

24

INSULATOR, INTAKE PIPE This part replaces 13117-38F00.

13117-38F01

$9.24

25

PIPE ASSY,INTAK | Includes Item(s) 26 This part replaces 13101-38F00.

13101-38F01

$36.57

26

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

27

CLAMP

09402-48208

$4.64

28

BOLT (8X60) This part replaces 09103-08345.

09103-08217

$3.72

29

NUT This part replaces 08319-31088.

08319-3108A

$2.32
