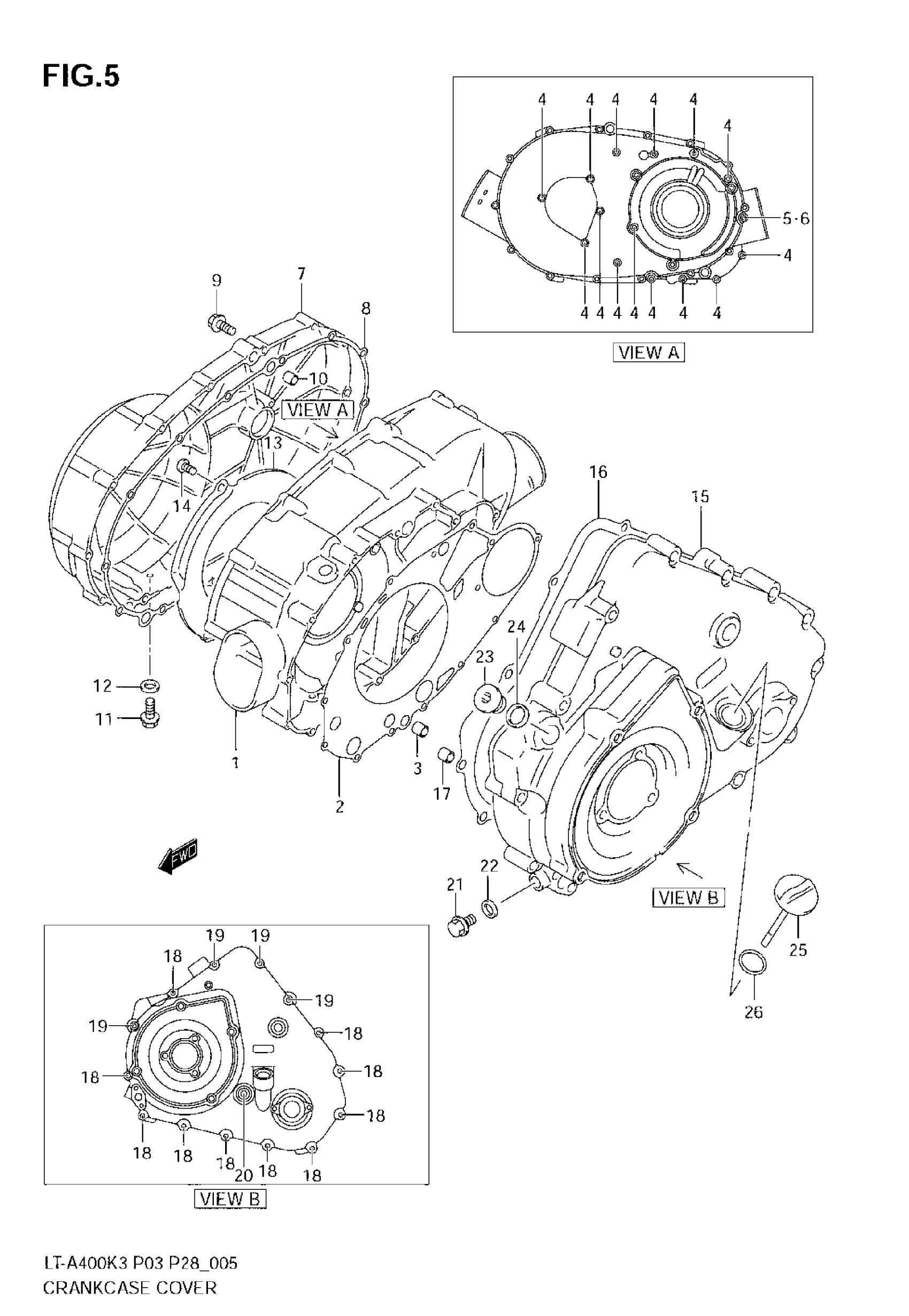

Suzuki LT-A400 (2007) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11341-38F00

$431.67

2

GASKET

11482-38F00

$21.96

3

PIN

04211-13189

$2.19

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

5

BOLT This part replaces 01547-06803.

01547-0680B

$3.18

6

GASKET

09168-06023

$2.35

7

COVER, V BELT

11371-38F00

Unavailable

8

GASKET

11484-38F00

$49.89

9

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

10

PIN

04211-13189

$2.19

11

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

12

GASKET

09168-08029

$2.32

13

PLATE,AIR INTAKE

11343-38F00

$13.85

14

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

15

COVER, MAGNETO

11351-38F00

Unavailable

16

GASKET

11483-38F00

$23.83

17

PIN

04211-13189

$2.19

18

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

19

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

20

BOLT, (L:140)

09103-08040

$5.52

21

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

22

GASKET

09168-08029

$2.32

23

PLUG, T.D.C CHECK

09248-16012

$4.64

24

GASKET, T.D.C CHECK

09168-16002

$1.91

25

GAUGE,OIL LEVEL

11971-38F00

$9.78

26

O RING, OIL LEVEL GAUGE

09280-17003

$1.65
