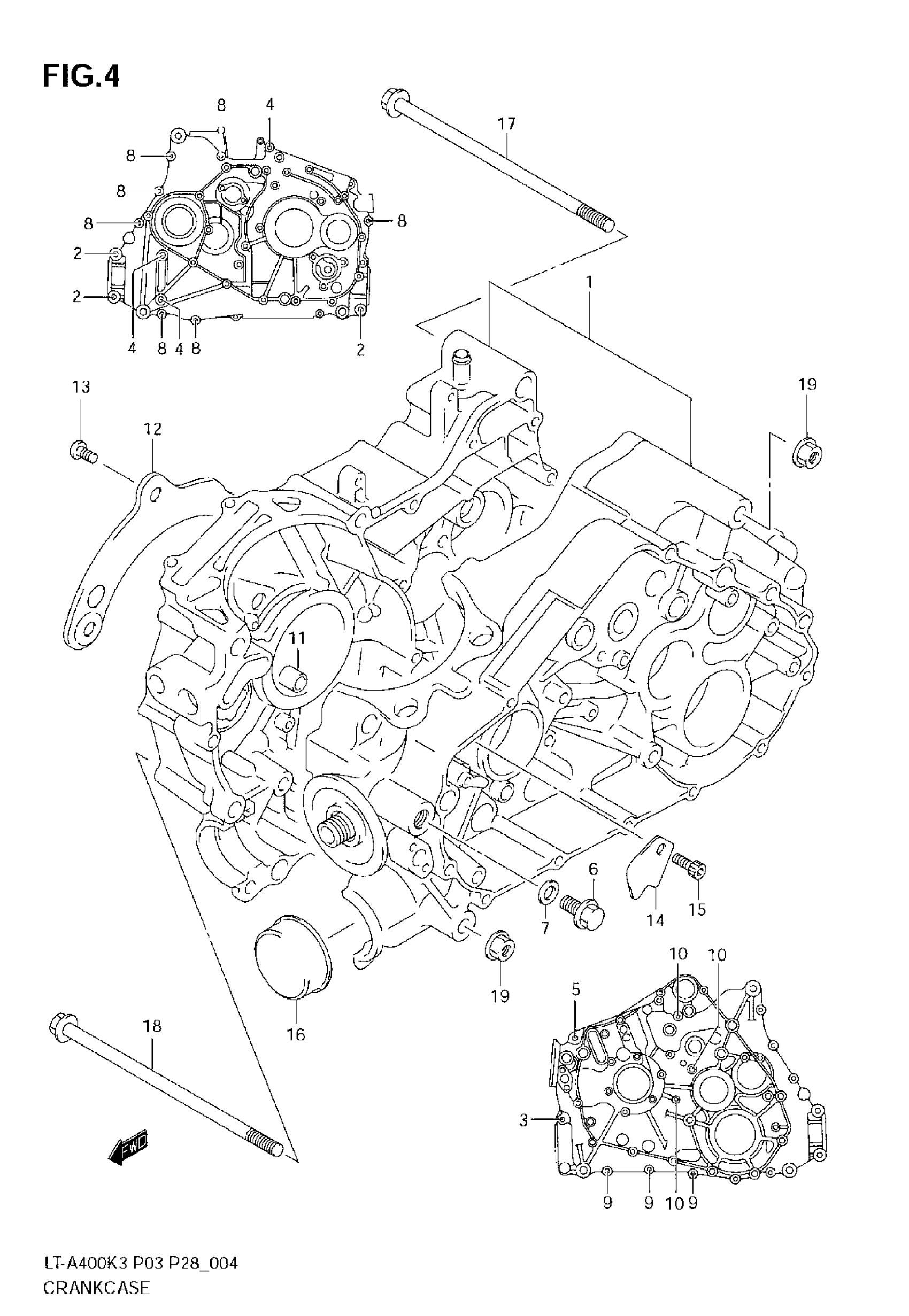

Suzuki LT-A400 (2007) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 11 This part replaces 11302-38811.

11302-38812

Unavailable

2

BOLT (8X50)

09103-08081

$3.72

3

BOLT (8X50)

09103-08081

$3.72

4

BOLT (8X85)

09103-08300

Unavailable

5

BOLT (8X60) This part replaces 09103-08345.

09103-08217

$3.72

6

PLUG, OIL PRESSURE

09247-14015

$4.45

7

GASKET, OIL PRESSURE PLUG

09168-14002

$2.26

8

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

9

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

10

BOLT This part replaces 01547-06703.

01547-0670B

$3.29

11

PIN, CRANKCASE

04211-13189

$2.19

12

PLATE, OIL GUIDE

11317-38F00

Unavailable

13

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

14

PLATE,OIL GUIDE,L

11323-38F00

Unavailable

15

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

16

PLUG, OUTPUT SHAFT HOLE

11331-44D00

Unavailable

17

BOLT (L:195)

09103-10118

$11.56

18

BOLT (L:180)

09103-10053

$11.48

19

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
