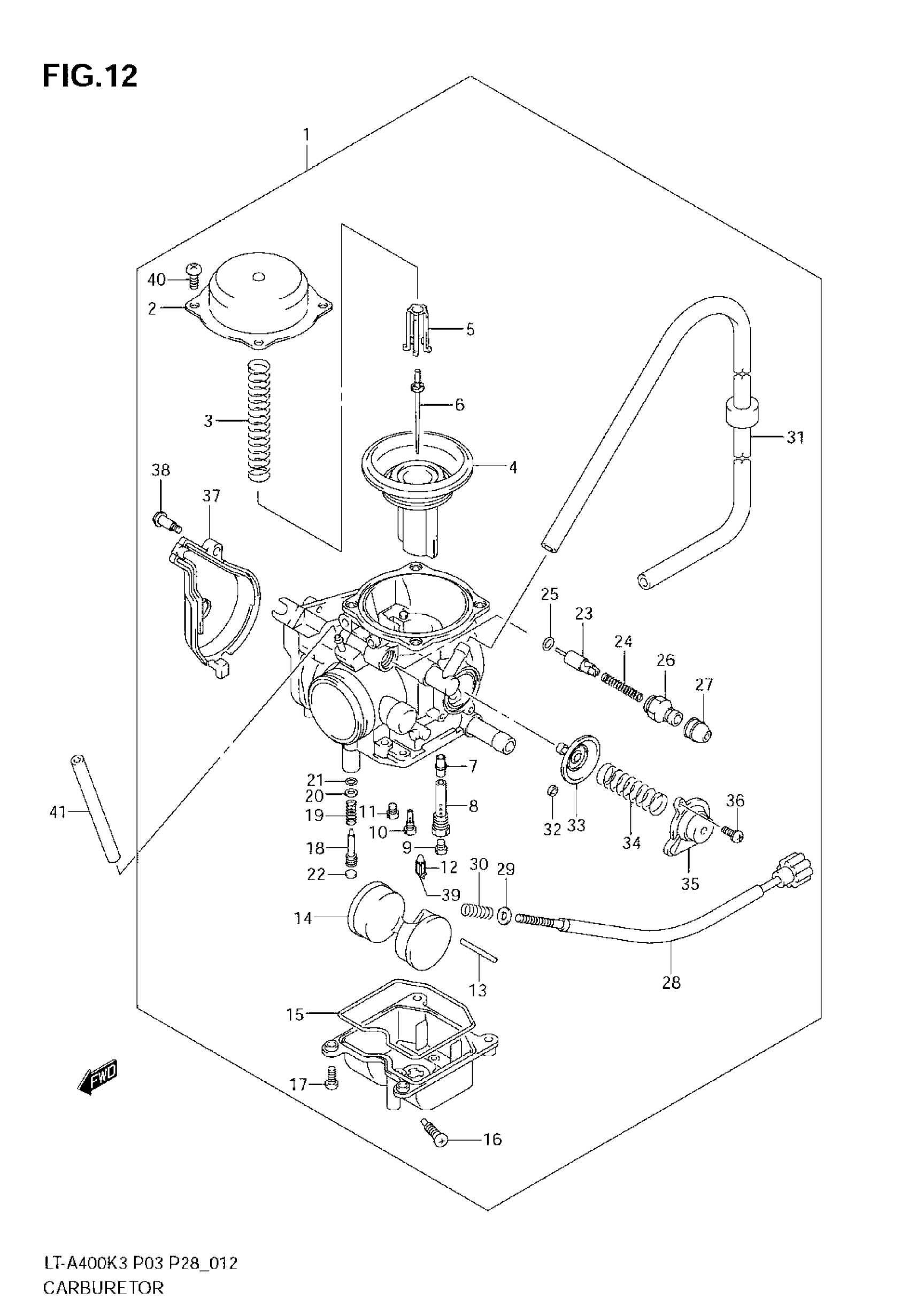

Suzuki LT-A400 (2007) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL K3/K4 P3,P28 This part replaces 13200-38F22.

13200-38F23

$514.74

1

CARBURETOR ASSY | MODEL K3/K4 P33 This part replaces 13200-38F12.

13200-38F1V

$808.63

1

CARBURETOR ASSY | MODEL K5/K6/K7 P28

13200-38F30

Unavailable

1

CARBURETOR ASSY | MODEL K5/K6/K7 P33; Includes Item(s) 2 - 40 This part replaces 13200-38F40.

13200-38F4V

$778.88

2

DIAPHRAGM COVER

13502-38F00

Unavailable

3

SPRING

13503-38F00

$12.80

4

DIAPHRAGM

13501-38F00

$143.87

5

SEAT, SPRING

13382-26E00

$15.35

6

NEEDLE, JET (N425-BZA00)

13383-38F00

$19.72

7

JET, NEEDLE

09494-00869

$33.45

8

HOLDER, NEEDLE JET

13342-38F00

$26.33

9

JET, MAIN (#122)

09491-24032

$27.48

10

JET, PILOT (#38)

09492-38005

$16.70

11

JET, MAIN (#55)

09491-55009

$16.78

12

VALVE ASSY, NEEDLE

13370-38F00

$17.86

13

FLOAT PIN

13254-26E00

$4.43

14

FLOAT ASSY

13250-26E00

$55.41

15

O RING

13258-26E00

$8.91

16

DRAIN SCREW

13247-43E00

$6.52

17

SCREW

13602-26E10

$4.62

18

SCREW, ADJUST

13279-03FA0

$11.38

19

SPRING

13268-26E00

$5.20

20

WASHER

13291-26E00

$2.93

21

O RING

13295-26E00

$4.34

22

CAP | P33

13281-26E00

$5.52

23

VALVE ASSY, STARTER

13410-38F00

$56.02

24

SPRING

13417-03G00

$5.95

25

O RING

13686-03G00

$4.34

26

HOLDER

13418-03G00

$5.44

27

CAP

13681-28E00

$8.07

28

SCREW, STOP

13270-24F00

$86.92

29

WASHER

13273-03G00

$3.58

30

SPRING

13268-35F00

$4.57

31

HOSE

13683-38F00

$39.48

32

U RING This part replaces 13486-15F00.

13486-15F01

$2.46

33

DIAPHRAGM This part replaces 13480-38F00.

13480-38F01

$36.61

34

SPRING

13481-15F00

$4.28

35

COVER

13484-15F00

$32.27

36

SCREW

13601-15F10

$3.70

37

COVER

13578-03G00

$37.52

38

SCREW

13601-11F00

$2.93

39

CLIP

13375-26E00

$5.44

40

SCREW

13602-43E00

$3.05

41

HOSE,5X10X600 | L:600!140 This part replaces 09355-50105-600.

44421-13ER0

$10.06
