Description

Price

1

SWINGINGARM SET,REAR | Includes Item(s) 2 This part replaces 61100-38870.

61101-27850

$285.82

2

BUSH, PIVOT This part replaces 61230-38F10.

61230-38F11

$46.88

3

HOUSING, RR AXLE, R This part replaces 61300-38F00.

61300-38F10

$316.93

4

HOUSING, RR AXLE, L This part replaces 61400-38F00.

61400-38F10

$371.93

5

BOLT (10X20) This part replaces 01550-10253.

01550-1025A

$3.05

6

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

7

BOLT, PIVOT

09103-12068

$8.35

8

NUT, PIVOT

09159-12054

$7.44

9

O RING, RR AXLE HOUSING

09280-70005

$6.23

10

SEAL, RR AXLE HOUSING

09283-38022

$13.01

11

BOLT This part replaces 01550-10303.

01550-1030A

$3.55

12

CLIP This part replaces 08331-41556.

08331-41559

$3.70

13

BEARING, HUB

08123-60067

$29.13

14

ABSORBER ASSY, REAR SHOCK (BLACK)

62100-38F00-019

Unavailable

15

BOLT, UPPER

09103-10126

$4.50

16

WASHER, UPPER, OUTER

09160-10501

$2.33

17

NUT This part replaces 08319-31103.

08319-3110A

$2.73

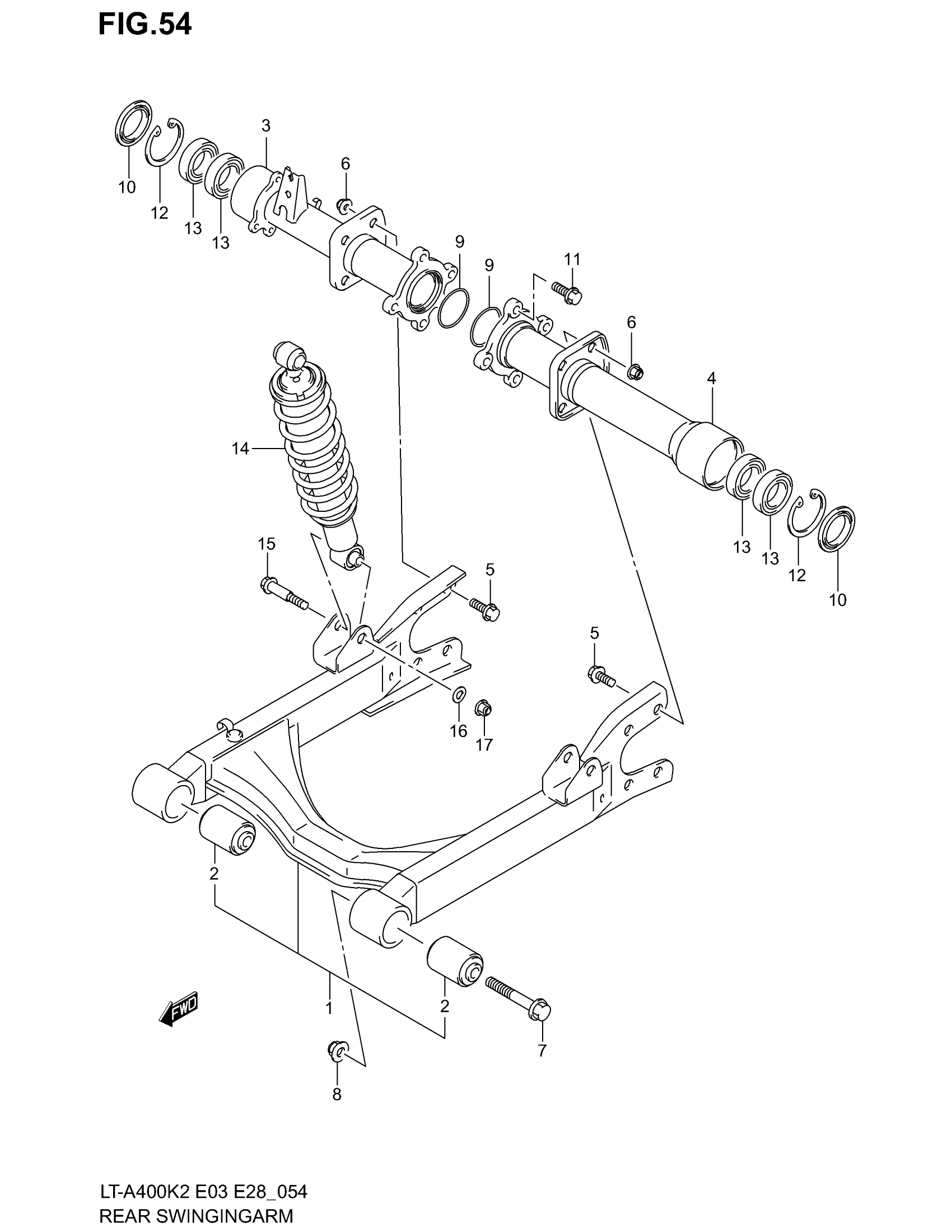

Suzuki LT-A400 (2002) REAR SWINGINGARM Diagram
