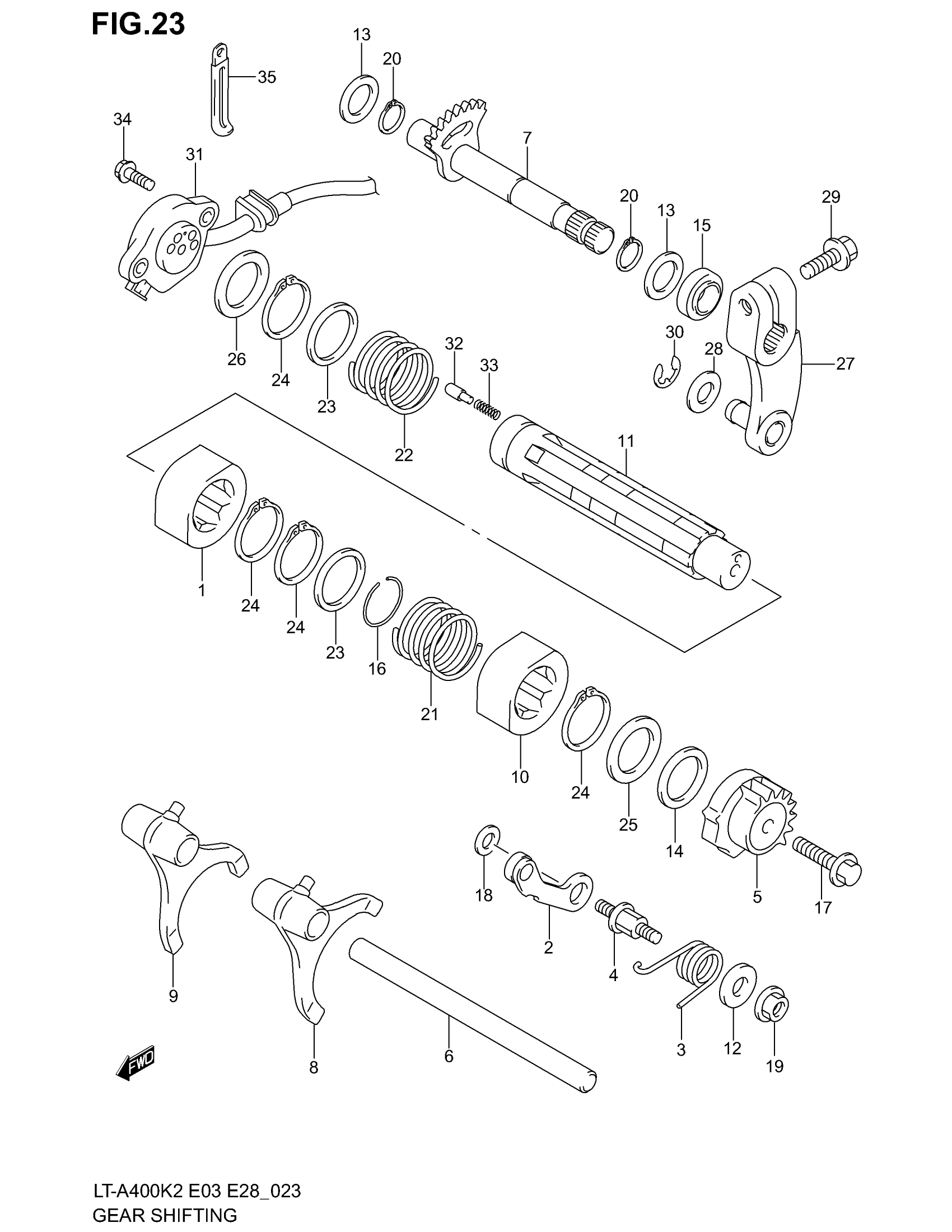

Suzuki LT-A400 (2002) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFT REVERSE

25321-38F00

Unavailable

2

STOPPER, SHIFT CAM

25350-26D01

$16.22

3

SPRING, GR SHIFT CAM

25355-38F00

$4.88

4

SUPPORT, CAM STOPPER

25356-12C00

$17.37

5

PLATE, GR SHIFT CAM

25381-38F00

Unavailable

6

SHAFT, GEAR SHIFT FORK

25411-18900

$23.07

7

SHAFT, SUB T/M GEAR SHIFT

25510-38F00

Unavailable

8

FORK, GEAR SHIFT

29511-44D00

$90.23

9

FORK, SHIFT REVERSE

29511-44D00

$90.23

10

CAM, GEAR SHIFT

29611-38F00

Unavailable

11

SHAFT, GEAR SHIFT

29620-38F00

Unavailable

12

WASHER, SPRING STOPPER | 6.5X16X2.30

09160-06022

Unavailable

13

WASHER, GR SHIFT SHAFT | 12X20X1.0

09181-12167

$2.26

14

WASHER, SHIFT CAM PLATE | 20X28X0.5

09181-20158

$3.03

15

OIL SEAL (12X22X9) | 12X22X9.0

09285-12006

$6.32

16

C-RING, T/M CAM STOP

09380-25012

$2.47

17

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

18

WASHER, CAM STOPPER

08211-06141

$1.59

19

NUT This part replaces 08316-10063.

08316-1006B

$2.50

20

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

21

SPRING, SUB T/M SHIFT CAM

29612-38F00

Unavailable

22

SPRING, REVERSE SHIFT CAM

29612-38F00

Unavailable

23

WASHER, SHIFT CAM SPRING | 25X32X1.0

09181-25139

$3.32

24

CIRCLIP, SHIFT CAM SPRING

08331-31256

$1.49

25

WASHER, SHIFT SHAFT | 25X34X1.0

09181-20195

$2.60

26

WASHER, SHIFT SHAFT

09181-25167

$3.12

27

ARM, SELECT

25360-38F00

$56.93

28

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

29

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

30

E RING This part replaces 08332-11033.

08332-1103A

$2.15

31

BASE ASSY, GEAR SHIFT TERM

37720-38F00

$147.77

32

CONTACT

09209-05011

$2.20

33

SPRING

09440-04010

$1.54

34

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

$2.53

35

CLAMP This part replaces 09404-06432.

09404-06039

$1.74
