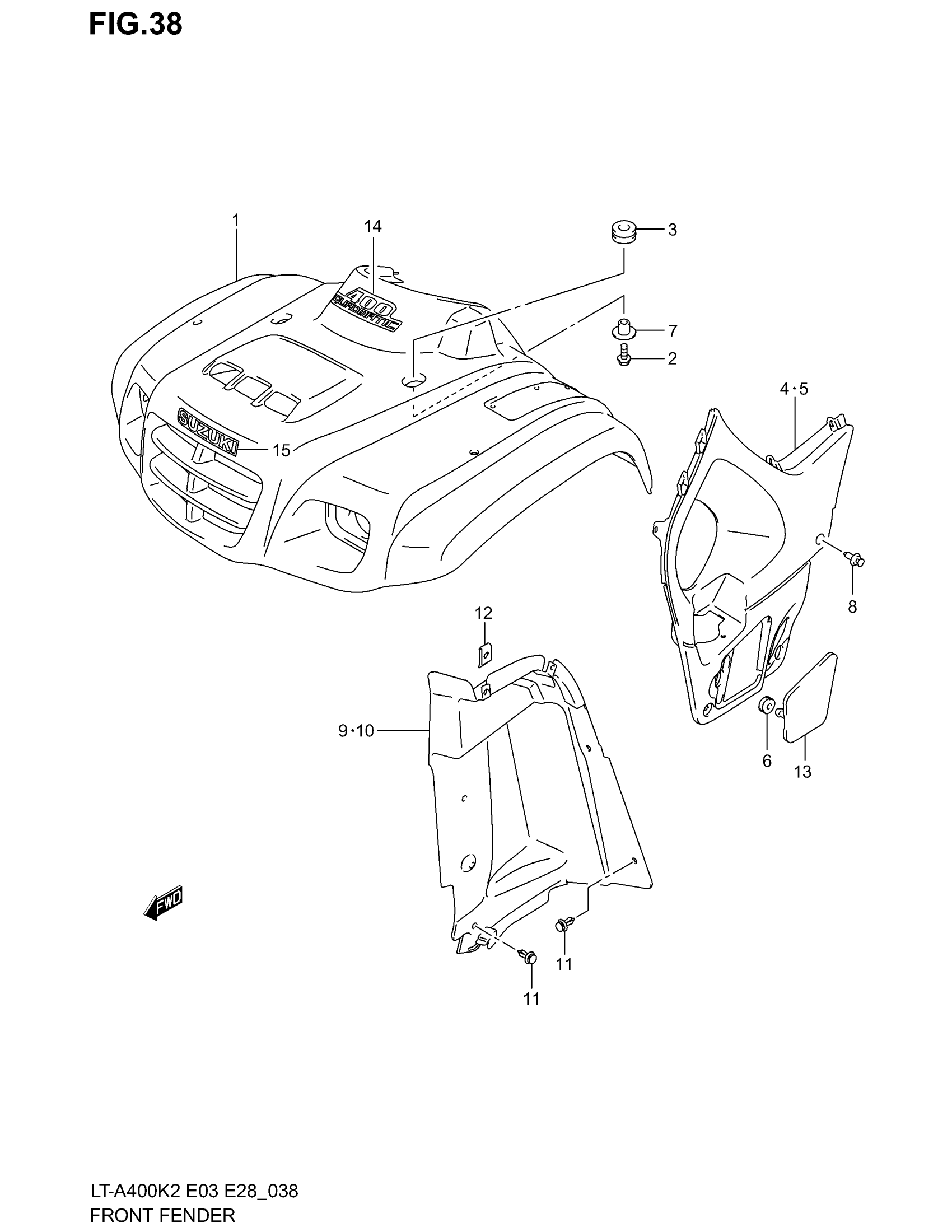

Suzuki LT-A400 (2002) FRONT FENDER Diagram

#

Description
Price

1

FENDER,FRONT This part replaces 53111-38F00-YT8.

53111-38F32-YT8

Unavailable

1

FENDER,FRONT This part replaces 53111-38F00-YT9.

53111-38F32-YT9

Unavailable

2

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

3

CUSHION

09320-11008

$2.60

4

COVER, SIDE RH (BLACK)

53112-38F00-291

$53.39

5

COVER, SIDE LH (BLACK)

53122-38F00-291

$62.57

6

CUSHION, LH

09320-08018

$3.04

7

WASHER

09169-06074

$7.95

8

CLIP, INNER

09409-07333

$2.31

9

MUD FLAP,FENDER This part replaces 53411-38F00.

53411-38F02

$45.68

10

MUD FLAP,FENDER This part replaces 53421-38F00.

53421-38F01

$104.63

11

CLIP

09409-08335

$2.47

12

NUT, INNER

09148-05038

$1.97

13

LID (BLACK)

53123-38F00-291

Unavailable

14

EMBLEM, FRONT

68151-38F20-DJ8

Unavailable

15

EMBLEM, FRONT LOWER | FOR YT8

68171-44B00-HV6

Unavailable

15

EMBLEM, FRONT LOWER | FOR YT9

68171-44B00-HV5

$10.89
