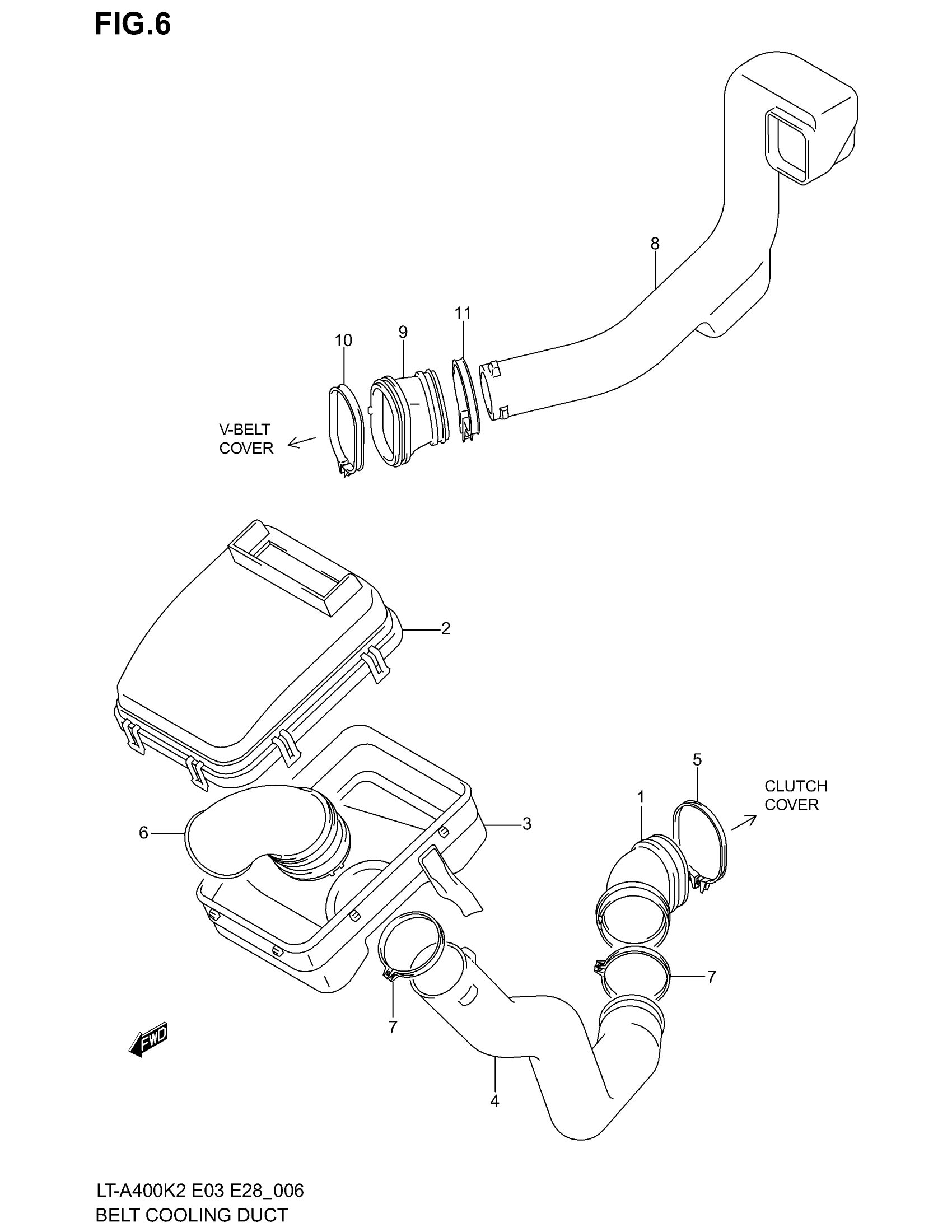

Find the part on the Belt Cooling Duct diagram for your 2002 Suzuki LT-A400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-A400 Belt Cooling Duct Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CONNECTOR,CLG DUCT FR This part replaces 11386-38F00.

11386-38F01

1
Out of stock

2

BOX, INDUCTION UPPER

11393-38F00

1

$39.45

In stock

3

BOX,INDUCTION LOWER

11391-38F00

1
Out of stock

4

DUCT,BELT CLG FR NO.1

11387-38F00

1
Out of stock

5

CLAMP,BELT CLG DUCT FR

11389-09F50

1
Out of stock

6

DUCT,BELT COOLING FR NO.2 This part replaces 11388-38F00.

11388-38F01

1
Out of stock

7

CLAMP

09402-76208

2
Out of stock

8

1

$43.95

In stock

9

CONNECTOR,CLG DUCT RR This part replaces 11397-38F00.

11397-38F01

1
Out of stock

10

CLAMP,BELT CLG DUCT FR

11389-09F50

1
Out of stock

11

CLAMP NO.2

09402-76208

1
Out of stock
