1997 Suzuki LT-80 Rear Shock Absorber Diagram

← All diagrams

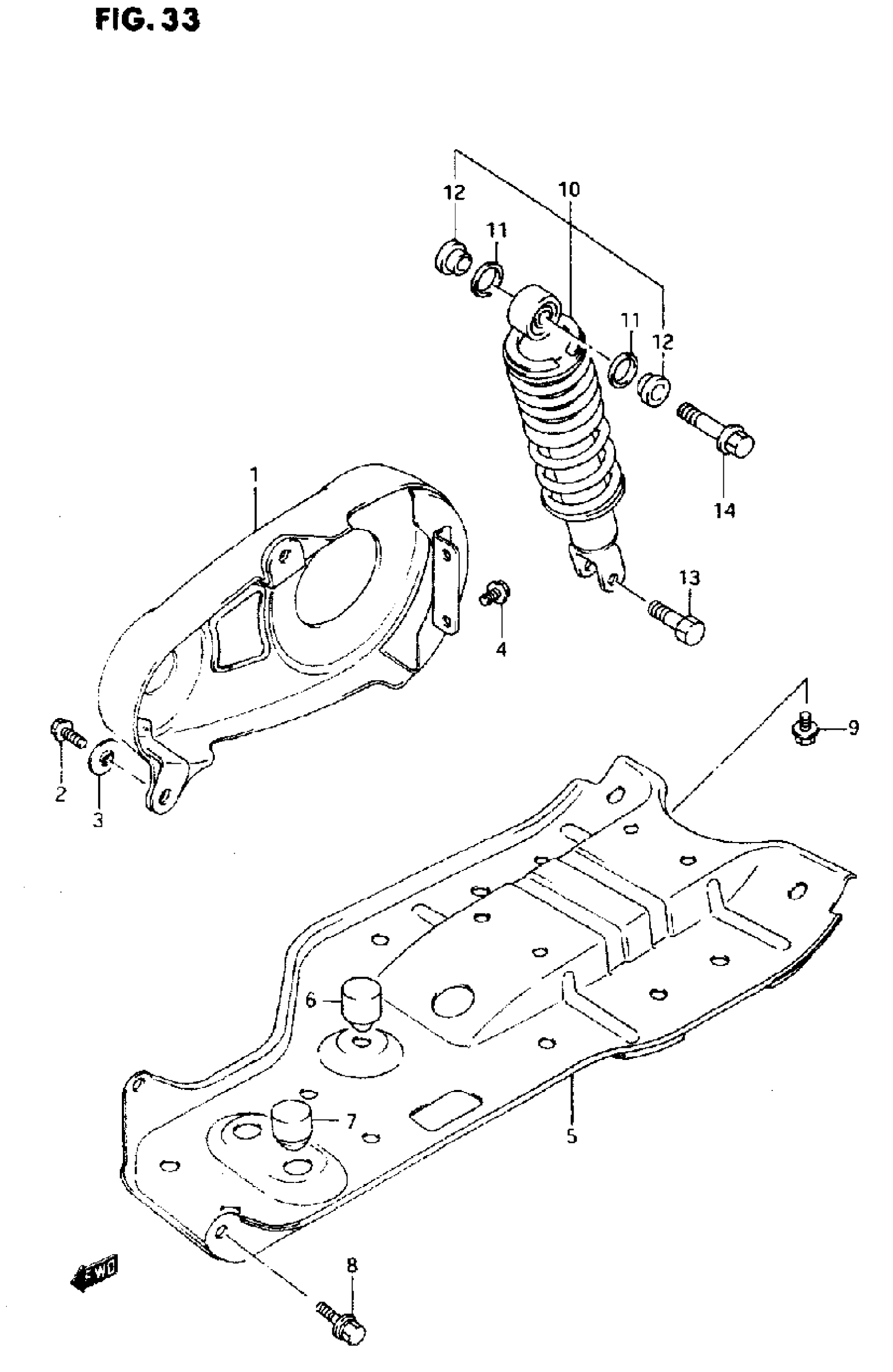

Find the part on the Rear Shock Absorber diagram for your 1997 Suzuki LT-80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-80 Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, CHAIN

61310-40B01

1
Out of stock

2

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

3

WASHER

09169-06026

2
Out of stock

4

BOLT This part replaces 01550-06103.

01550-0610A

2
Out of stock

5

GUARD, UNDER (BLACK)

61390-40B00-019

1
Out of stock

6

CUSHION

09321-10017

1
Out of stock

7

CUSHION

09321-14001

2
Out of stock

8

BOLT This part replaces 01580-06123.

01580-0612A

2
Out of stock

9

BOLT This part replaces 01580-06163.

01580-0616A

4
Out of stock

10

ABSORBER ASSY, REAR SHOCK (YELLOW) | ABSOR

62100-40B10-163

1
Out of stock

11

SEAL, DUST

62226-27A20

2
Out of stock

12

COLLAR

62684-40B00

2
Out of stock

13

BOLT, LOWER

62313-40B00

1
Out of stock

14

BOLT, UPPER

09103-10049

1
Out of stock
