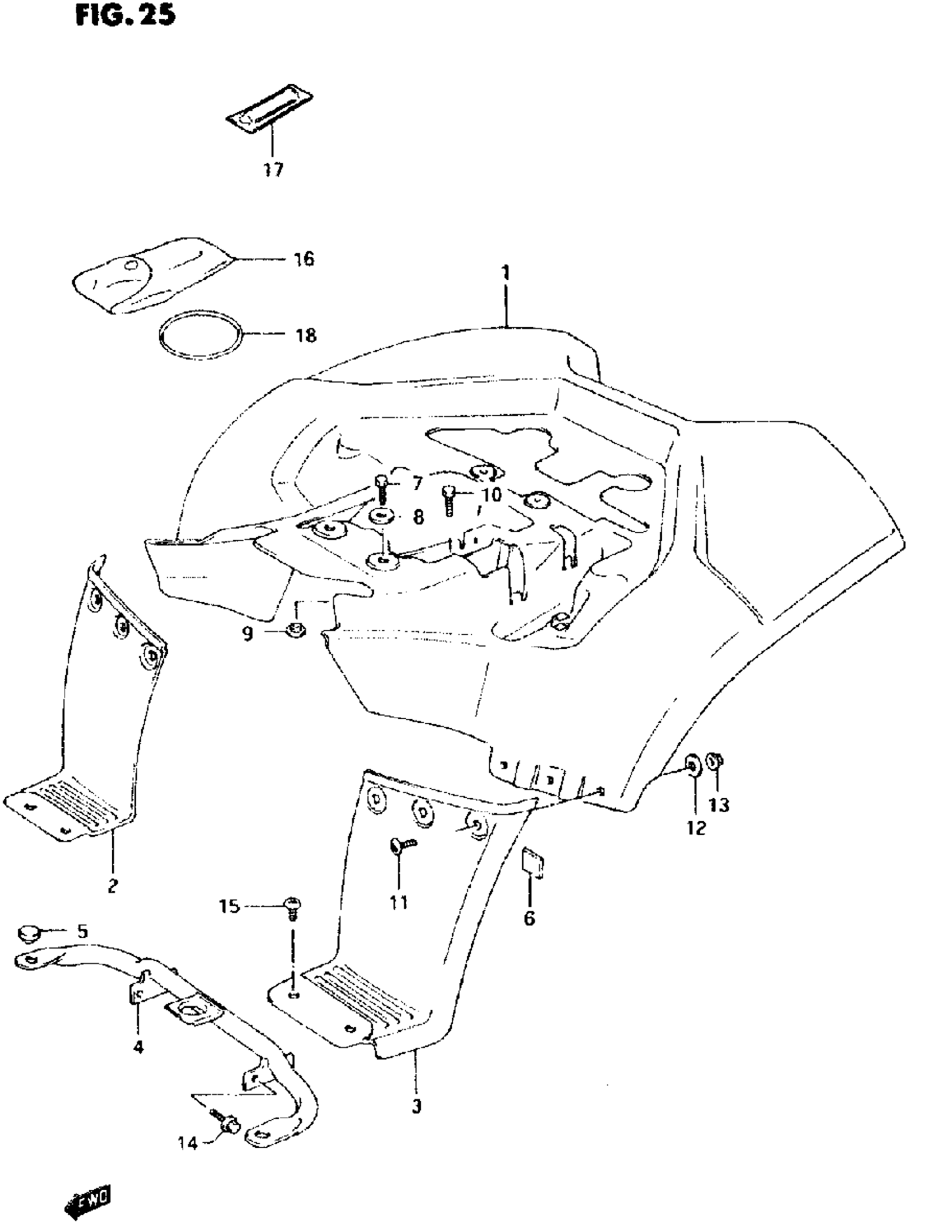

Find the part on the Rear Fender diagram for your 1997 Suzuki LT-80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-80 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY,REAR FENDE This part replaces 63111-40B00-14L.

63111-40B01-14L

1
Out of stock

1

BODY. REAR CENTER (WHITE) | P28

63111-40B10-14L

—
Out of stock

2

BODY, REAR FENDER RH (BLACK)

63112-40B01-291

1
Out of stock

3

BODY, REAR FENDER LH (BLACK)

63113-40B01-291

1
Out of stock

4

REINFORCEMENT, REAR FENDER

63130-40B00

1
Out of stock

5

CAP (OD:20) This part replaces 09250-12006.

09250-12016

2
Out of stock

6

CUSHION, GUARD

63191-25C00

2
Out of stock

7

BOLT, CENTER BODY

01500-06207

4
Out of stock

8

WASHER, FRONT This part replaces 09160-06004.

09160-06134

4
Out of stock

9

WASHER

09169-08036

4
Out of stock

10

BOLT

09116-06010

1
Out of stock

11

SCREW

09136-06081

6
Out of stock

12

WASHER This part replaces 09160-06006.

09160-06084

6
Out of stock

13

NUT This part replaces 08319-31063.

08319-3106A

6
Out of stock

14

BOLT This part replaces 01550-06163.

01550-0616A

4
Out of stock

15

SCREW

09136-06004

4
Out of stock

16

TOOL ASSY This part replaces 09800-21026.

09800-21080

1
Out of stock

17

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

1
Out of stock

18

BAND

09280-70004

1
Out of stock
