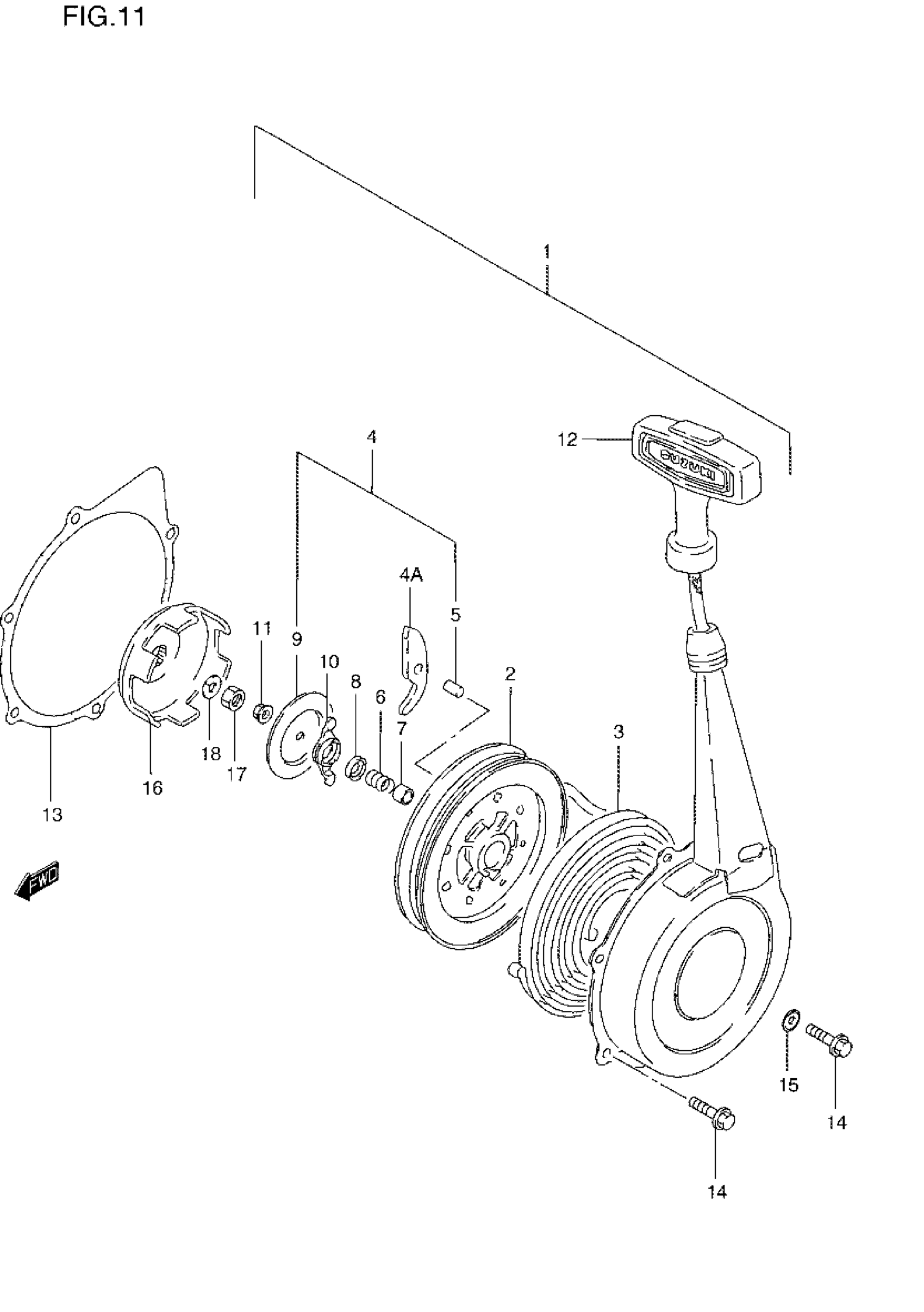

Suzuki LT-4WDXW (1998) RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY,RE | Includes Item(s) 2 - 12 This part replaces 18100-19B02.

18100-19B03

$294.07

2

REEL

18120-24400

$35.94

3

.SPRING,SPIRAL

18142-24400

$29.60

4

RATCHET SET

18130-24400

$16.96

4A

RATCHET

18131-24411

$8.12

5

PIN, RATCHET

18344-24400

Unavailable

6

SPRING, FRICTION

18153-24400

Unavailable

7

SHAFT, SUB

18176-24400

Unavailable

8

COVER, SPRING

18275-24400

Unavailable

9

RATCHET SET This part replaces 18151-24400.

18130-24400

$16.96

10

..GUIDE,RATCHET

18132-24400

$2.92

11

NUT This part replaces 08316-10063.

08316-1006B

$2.50

12

ROPE ASSY

18200-19B01

$40.42

13

GASKET, RECOIL This part replaces 18299-19B10.

18299-19B11

$6.79

14

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

15

GASKET

09168-06023

$2.35

16

CUP, STARTER

18410-19B01

Unavailable

17

NUT This part replaces 08310-00103.

08310-0010A

$1.84

18

LOCK WASHER This part replaces 08321-01103.

08321-0110A

$1.84
