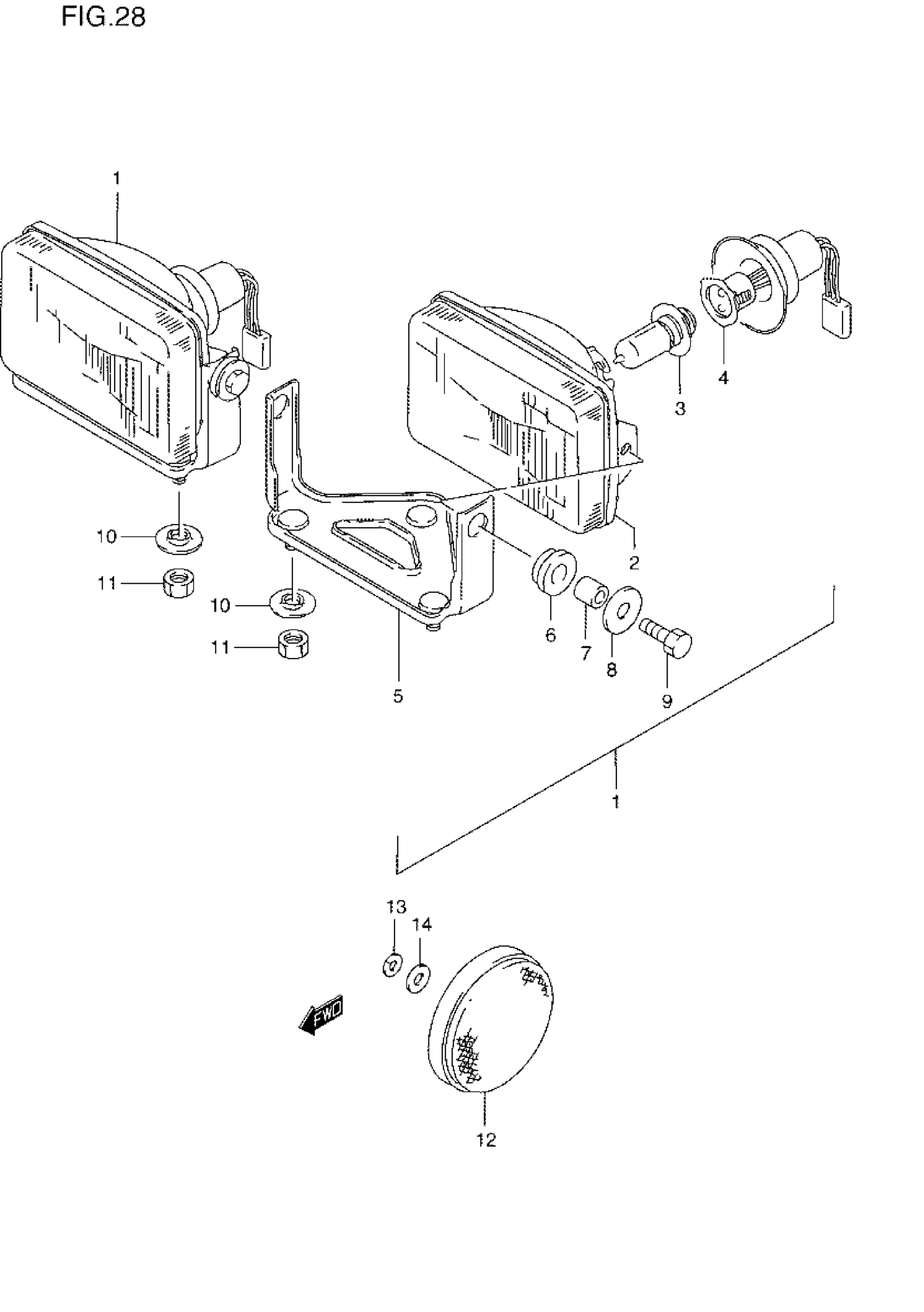

Suzuki LT-4WDXW (1998) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-19B03

Unavailable

2

UNIT, LAMP

35121-19B00

Unavailable

3

BULB (12V,30/30W)

09471-12093

$29.38

4

SOCKET

35171-19B03

$27.89

5

BRACKET, LAMP

35141-19B00

Unavailable

6

CUSHION

35139-45230

$1.98

7

SPACER

35133-19B00

Unavailable

8

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

9

BOLT (6X14)

09100-06067

Unavailable

10

WASHER This part replaces 09169-06028.

09169-06041

$2.20

11

NUT This part replaces 08310-00063.

08310-0006A

$1.84

12

REFLEX REFLECTOR, FRONT SIDE | E28

35950-14A00

$16.94

13

LOCK WASHER | E28 This part replaces 08321-01053.

08321-0105A

$1.84

14

WASHER, FRONT | E28 This part replaces 08322-01053.

08322-0105A

$1.84
