Description

Price

1

FORK, DIFFRENTIAL LOCKING

27941-19B00

$79.25

2

SHAFT, FORK

25421-14301

$23.07

3

CAM, DIFFERENTIAL LOCKING

27911-19B01

Unavailable

4

SHAFT, CAM

27921-19B01

Unavailable

5

SPRING

09440-17008

$2.64

6

SHIM | MODEL T This part replaces 08211-10181.

09181-10167

$1.97

6

WASHER, RH (10X18X1.0) | MODEL V/W

09181-10167

$1.97

7

WASHER, LH

08211-12241

$2.06

8

OIL SEAL (12X22X9)

09285-12006

$6.32

9

STOPPER, SELECT CAM | MODEL T/V This part replaces 25351-18000.

25351-39300

$10.23

9

STOPPER | MODEL W

25351-39300

$10.23

10

HOUSING

25352-11010

$7.22

11

SPRING

09440-05035

$3.27

12

GASKET

09168-14002

$2.26

13

ARM, DIFFERENTIAL LOCKING

25360-19B00

$66.40

14

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

15

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

16

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

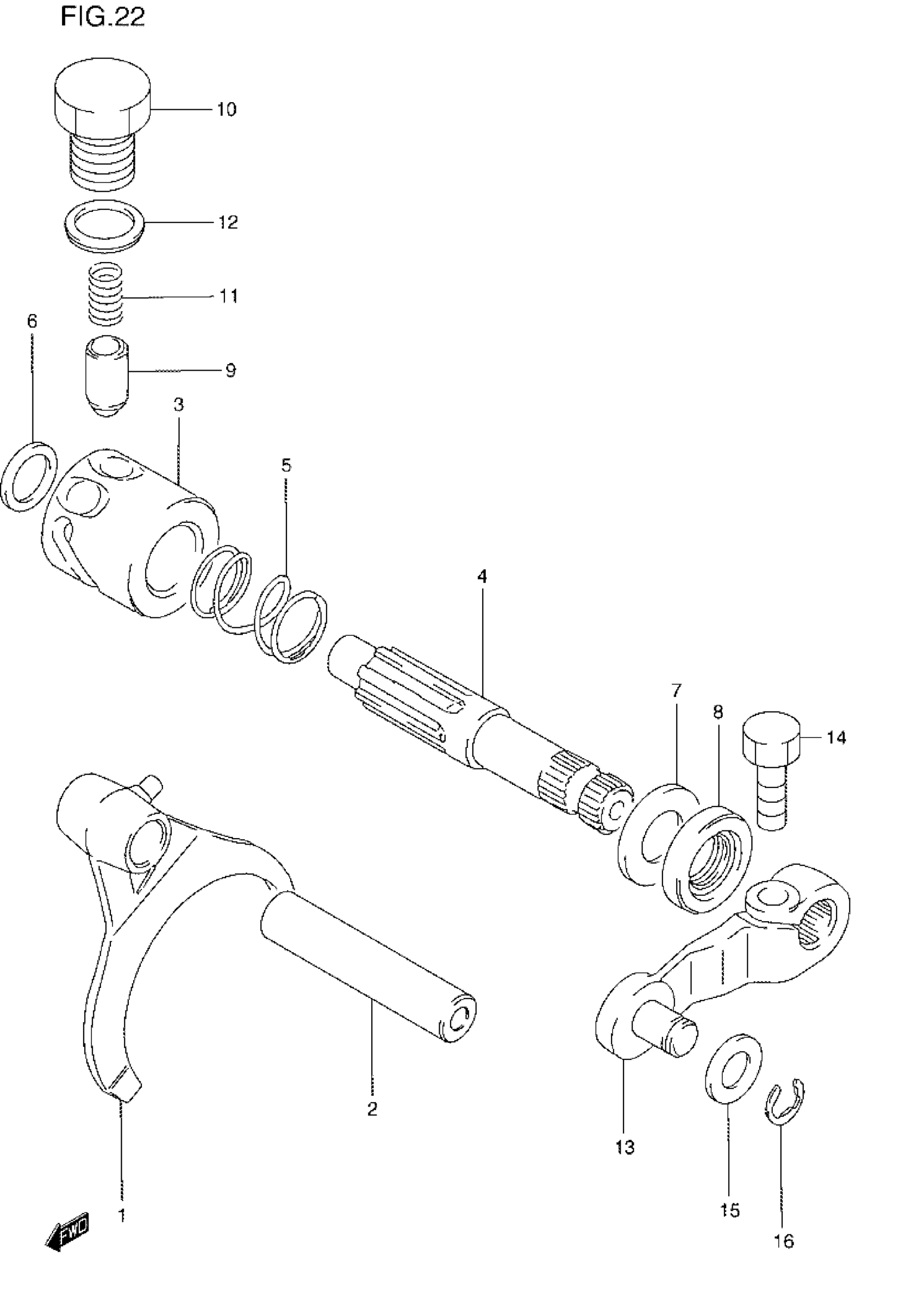

Suzuki LT-4WDXW (1998) DIFFERENTIAL LOCK Diagram

FORK, DIFFRENTIAL LOCKING

SHAFT, FORK

CAM, DIFFERENTIAL LOCKING

SHAFT, CAM

SPRING

SHIM | MODEL T This part replaces 08211-10181.

WASHER, RH (10X18X1.0) | MODEL V/W

WASHER, LH

OIL SEAL (12X22X9)

STOPPER, SELECT CAM | MODEL T/V This part replaces 25351-18000.

STOPPER | MODEL W

HOUSING

SPRING

GASKET

ARM, DIFFERENTIAL LOCKING

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

WASHER This part replaces 08322-01083.

CIRCLIP This part replaces 08332-11063.
