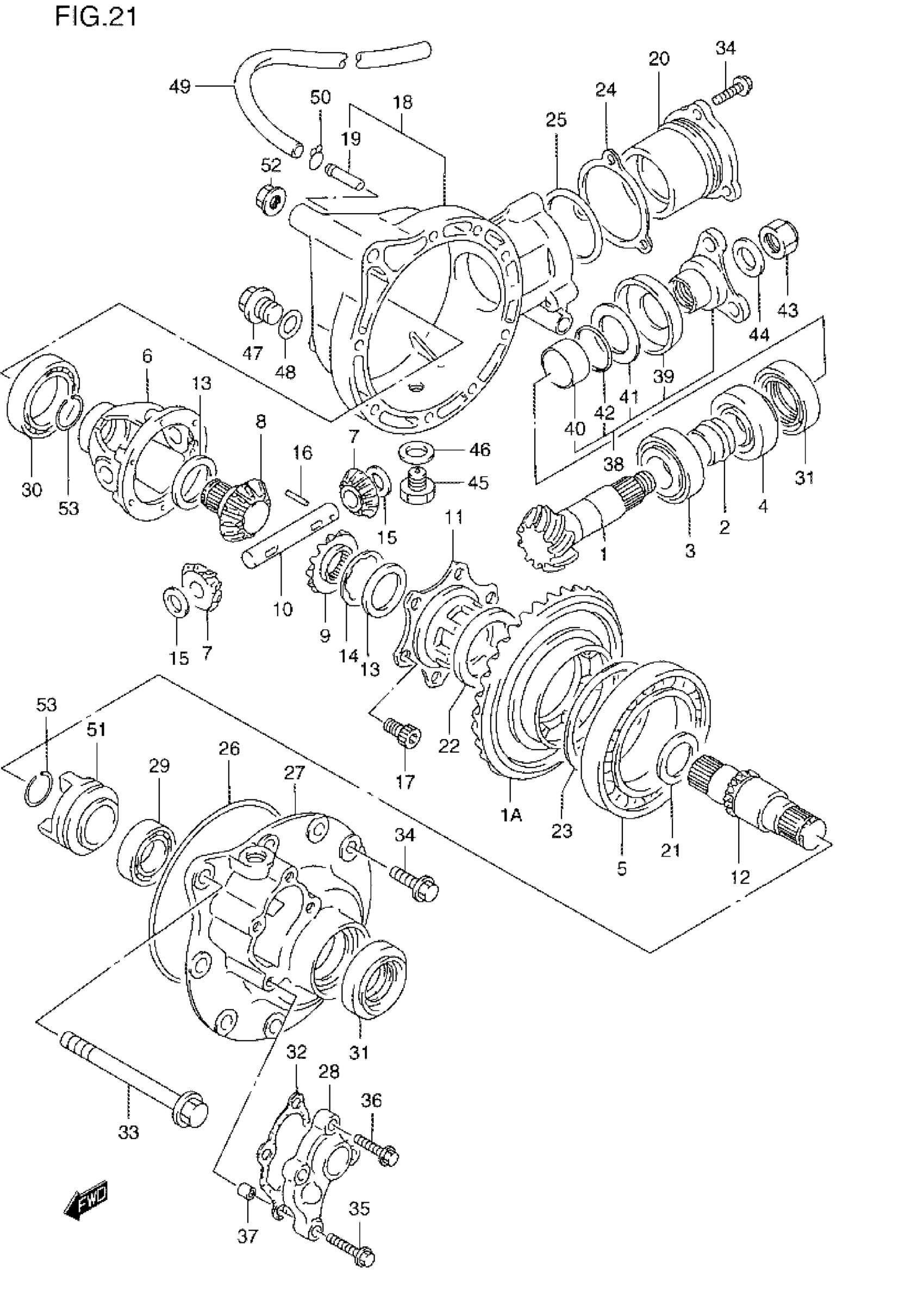

Suzuki LT-4WDXW (1998) DIFFERENTIAL GEAR Diagram

#

Description
Price

1

GEAR, FRONT DRIVE BEVEL | NT:11

27311-19B10

Unavailable

1A

GEAR, FRONT DRIVEN BEVEL | NT:34

27321-19B11

Unavailable

2

SPACER (25.3X28X28)

09180-25085

$31.68

3

BEARING, FRONT (25X52X19.25)

09265-25013

$63.43

4

BEARING, REAR (25X52X16.25)

09265-25024

$60.80

5

BEARING (70X110X13)

09262-70001

$140.93

6

CASE, DIFFERENTIAL

27411-19B00

$192.60

7

PINION, DIFFERENTIAL SIDE | NT:10

27331-65000

Unavailable

8

GEAR, RH (NT:13)

27341-19B10

Unavailable

9

GEAR, LH (NT:13)

27341-84212

Unavailable

10

SHAFT, PINION

27351-51005

Unavailable

11

HUB

27322-19B11

Unavailable

12

SHAFT,FR DRIVEN This part replaces 27361-19B10.

27361-19B20

Unavailable

13

WASHER (T:0.8)

09160-29011

Unavailable

13

WASHER (T:1.0)

09160-29012

Unavailable

13

WASHER (T:1.2)

09160-29013

Unavailable

14

WASHER

09164-29003

Unavailable

15

WASHER (13.3X25X0.85)

09160-13003

$1.99

16

PIN, PINION SHAFT

09202-06022

Unavailable

17

BOLT This part replaces 07130-08163.

07130-0816A

$3.16

18

HOUSING, DIFFERENTIAL GEAR | Includes Item(s) 19

27450-19B13

Unavailable

19

UNION, BREATHER

09364-08003

$3.15

20

HOUSING, DRIVE BEVEL GEAR

27441-19B00

$111.52

21

WASHER

08211-25351

$3.72

22

SHIM SET, FR DRIVE BVL GR | T:0.35/0.40/0.50/0.60

27326-19810

$32.10

23

SHIM SET, DRIVE GEAR BEARING | T:0.35/0.40/0.50/0.60

27327-34810

$38.45

24

SHIM SET, FR DRIVE BVL HSG | T:0.15/0.30/0.35/0.40

27445-19810

$25.75

25

O RING (D:2.4,ID:62.6)

09280-63004

$4.75

26

O RING (D:2.4,ID;131.4)

09280-00022

$12.88

27

CASE, DRIVEN GEAR BEARING

27461-19B10

Unavailable

28

COVER

27471-19B01

$60.97

29

BEARING, LH

08113-60050

$23.65

30

BEARING, RH (40X62X12)

09262-40006

$66.33

31

OIL SEAL (34X52X9.0)

09283-34008

$20.72

32

GASKET, CASE COVER

27473-19B11

$3.92

33

BOLT (L:110)

09103-10148

$6.94

34

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

35

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

36

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

37

PIN

04211-09109

$1.65

38

FLANGE, DRIVE BEVEL GEAR | Includes Item(s) 39 - 42 This part replaces 27180-19B00.

27180-19B10

$169.35

39

PLATE

09165-30002

$6.63

40

COLLAR

27591-19B01

$22.22

41

PLATE, OIL SEAL

27592-19B00

$7.95

42

O RING (D:1.0,ID:28)

09280-28007

$2.11

43

NUT

09159-16004

$3.87

44

WASHER (16X30X3)

09160-16026

$5.00

45

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

46

GASKET

09168-14002

$2.26

47

PLUG, FILLER

09247-16004

Unavailable

48

O RING (D:2.4,ID:16.8)

09280-17002

$5.11

49

HOSE(7X10.2X200 | L:2000->1140 This part replaces 09352-70103-00B.

09352-70104-00B

$15.32

50

CLIP

09401-10403

$1.65

51

DOG

27371-19B01

$97.95

52

NUT This part replaces 08319-31103.

08319-3110A

$2.73

53

CIRCLIP

09381-22007

$2.33
