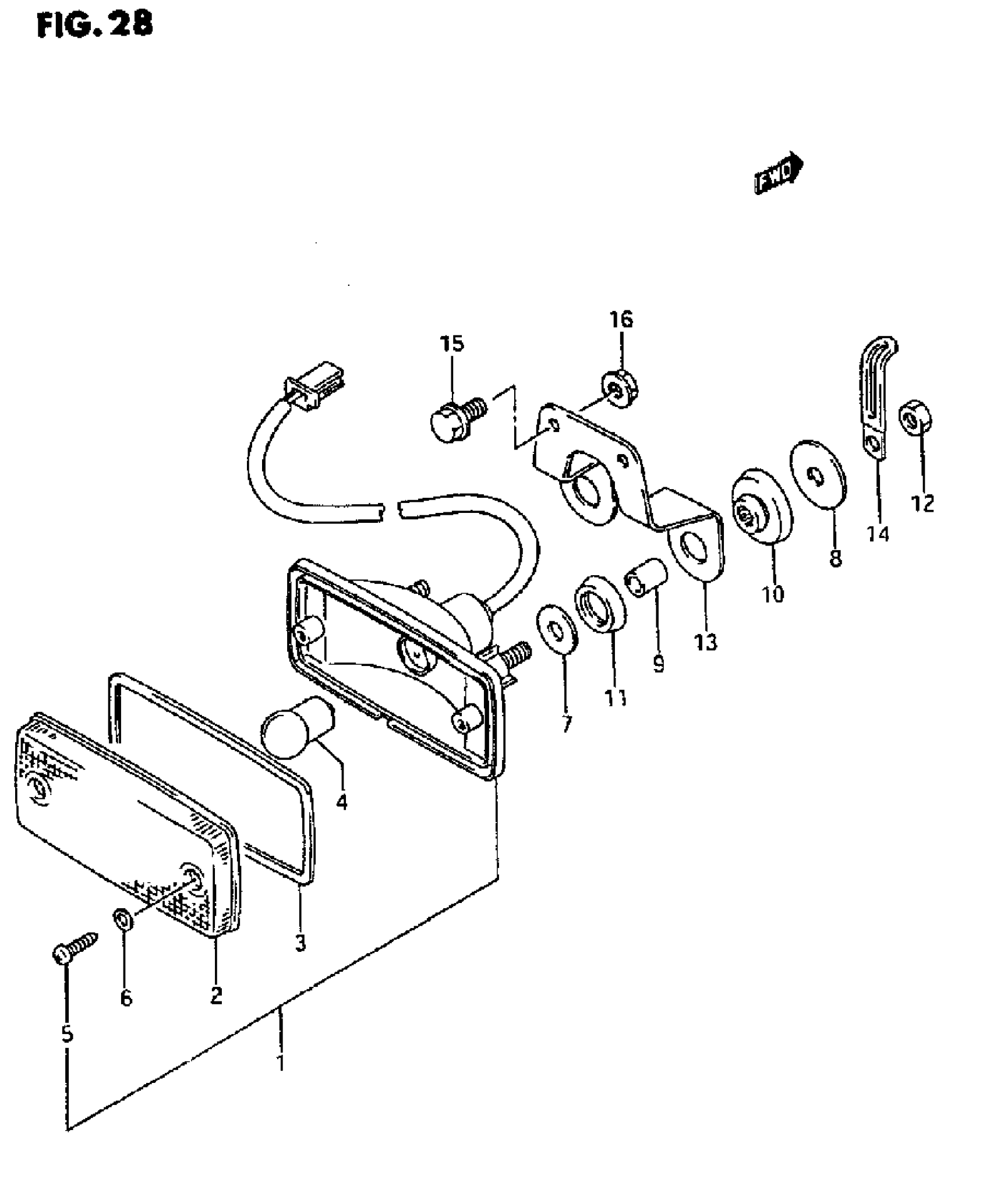

Suzuki LT-4WDX (1997) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL

35710-41B02

Unavailable

2

LENS

35712-18A32

$45.31

3

GASKET

35713-18A30

$9.67

4

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

5

SCREW

03212-04169

$1.49

6

GASKET

35627-43010

$2.28

7

WASHER (6.5X2OXL.2)

09160-06077

$1.91

8

WASHER This part replaces 09160-06504.

09160-06136

$1.84

9

SPACER (6.5XLOXLL.5)

09180-06289

$2.56

10

CUSHION

09320-09012

Unavailable

11

CUSHION

09320-14010

Unavailable

12

NUT This part replaces 08310-00063.

08310-0006A

$1.84

13

BRACKET, TAIL LAMP

35726-19B01

Unavailable

14

CLAMP (L:60)

09404-06429

$1.83

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

16

NUT This part replaces 08316-10063.

08316-1006B

$2.50
