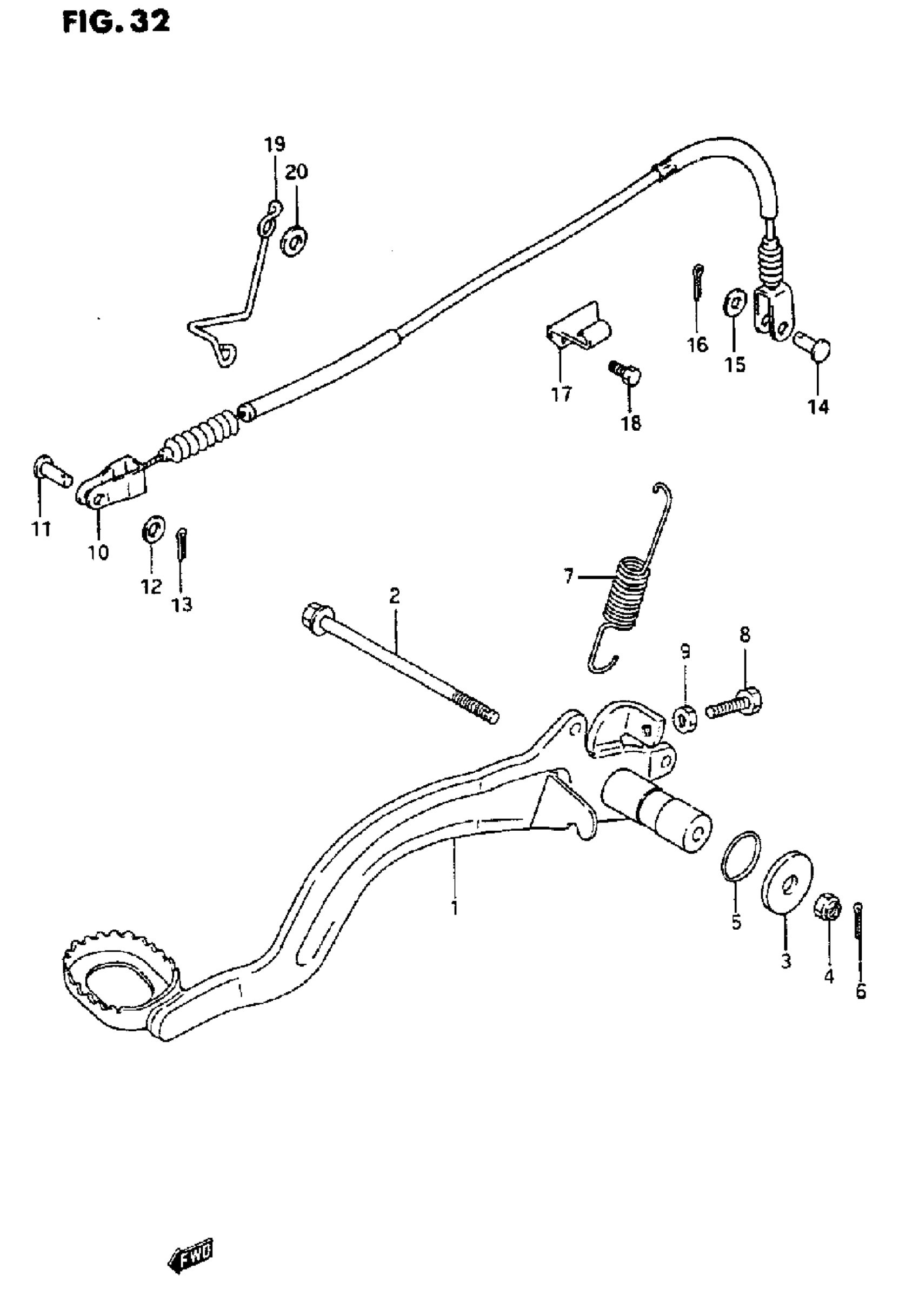

Suzuki LT-4WDX (1997) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-19B20

Unavailable

2

BOLT

09103-06106

Unavailable

3

WASHER, INNER This part replaces 09160-06096.

09160-06135

$2.17

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

5

0 RING

09280-17002

$5.11

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

SPRING

09443-15032

$4.86

8

BOLT This part replaces 09100-06091.

01500-06207

$2.28

9

NUT This part replaces 08310-00063.

08310-0006A

$1.84

10

CABLE ASSY, REAR BRAKE

58510-19B02

Unavailable

11

PIN, FRONT

09200-06013

$2.00

12

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

14

PIN, REAR

09200-08061

$3.50

15

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

17

BRACKET, CABLE

58575-19B00

Unavailable

18

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

19

GUIDE, CABLE

58611-19B02

Unavailable

20

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26
