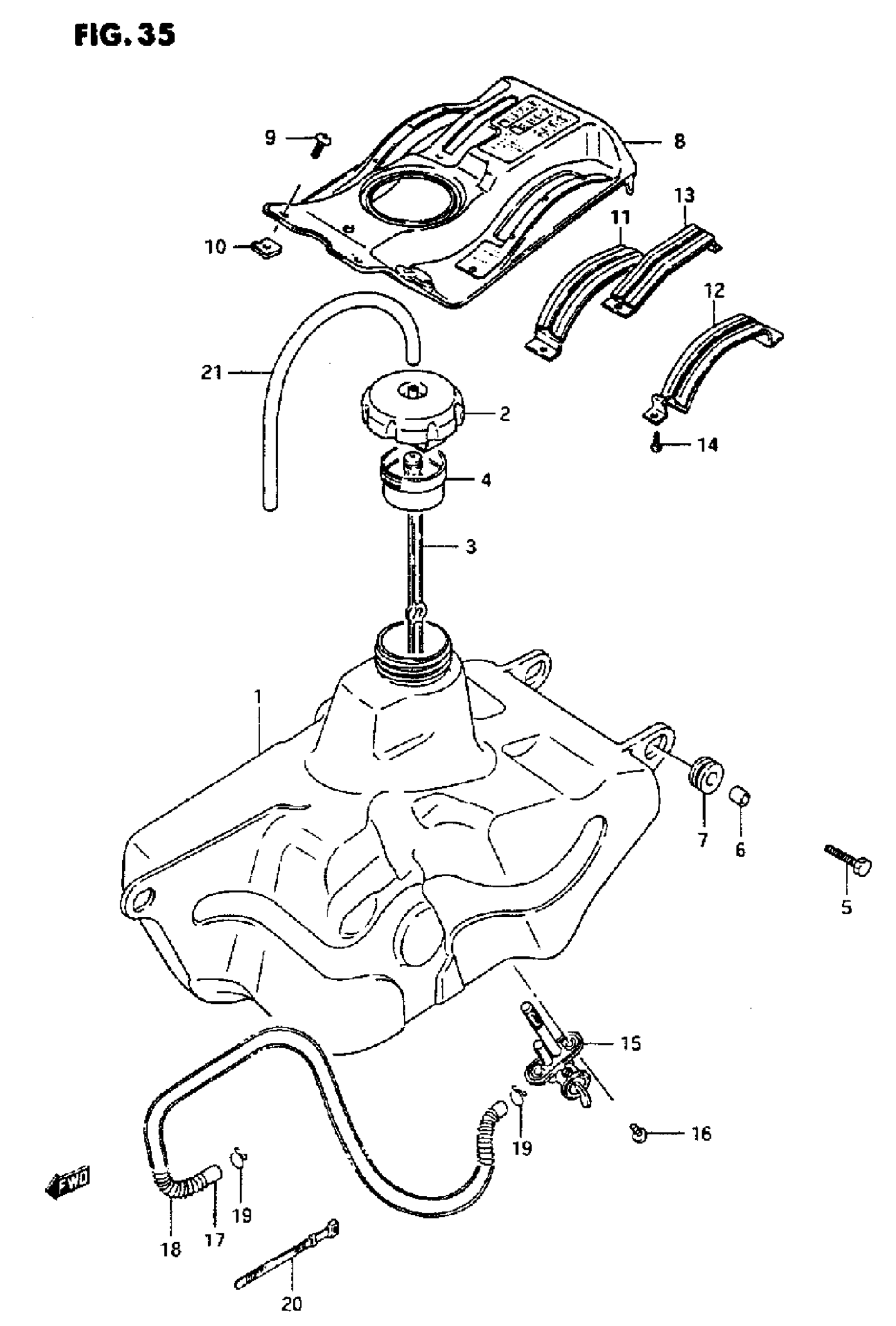

Suzuki LT-4WDX (1997) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL This part replaces 44110-19B00.

44110-19B01

Unavailable

2

CAP, FUEL TANK

44200-19B00

$44.39

3

GAGE,FUEL This part replaces 44501-19B00.

44501-19B01

$6.37

4

TUBE, FILLER INLET

44199-19A00

$6.28

5

BOLT

09118-08121

Unavailable

6

SPACER | MODEL T This part replaces 09180-08120.

09180-08209

$3.04

6

SPACER | MODEL V

09180-08209

$3.04

7

CUSHION

09320-12016

$2.11

8

COVER, FUEL TANK

44270-19B10

Unavailable

9

SCREW This part replaces 09136-06062.

09136-06017

$2.59

10

NUT

53141-19A00

$4.34

11

PLATE,LEVER SEA This part replaces 57950-19B00.

57950-19B01

$16.63

12

PLATE,LEVER SEA This part replaces 57990-19B00.

57990-19B01

$17.20

13

PLATE,REVERSE L This part replaces 44310-19B00.

44310-19B01

$11.07

14

SCREW This part replaces 03511-04103.

03511-0410A

$1.75

15

COCK ASSY,FUEL This part replaces 44300-19B20.

44300-19B23

$90.18

16

SCREW This part replaces 02112-36163.

02112-3616A

$1.97

17

HOSE,5X10X600 | MODEL T This part replaces 09354-50103-600.

44421-13ER0

$10.06

17

HOSE,5X10X600 | MODEL V This part replaces 09355-50105-600.

44421-13ER0

$10.06

18

SPRING This part replaces 09440-13020.

09440-13051

$10.76

19

CLIP

09401-10403

$1.65

20

CLAMP

09407-14403

$2.26

21

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06
